LFCL42 INA

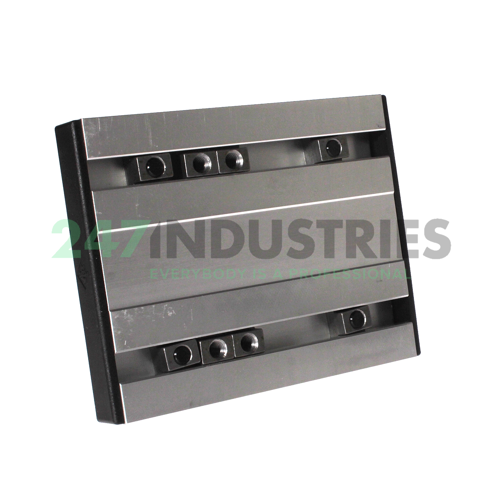

The economical LFCL42 INA is a hollow-section carriage. This lightweight carriage has a high moment load carrying capacity. Fixation to connecting structure is made easy by four length-adjustable T-nuts. The hollow-section carriage consists of an anodized carriage plate, four concentric bolts, four track rollers, two cover plates for the hollow sections and four T-nuts. The track rollers and the cover plates come pre-assembled.

LFCL42 INA carriages run silent and clearance-free on INA profiles, at speeds of up to 10 m/s and a maximum acceleration of 50 m/s2. They can be used in conjunction with all rail segments of appropriate size except for curved LFSR rail segments. Thanks to the particularly accurate dimensions of INA rails no clearance adjustments are required. Additionally, the track roller bearings feature double-sided gap seals and are self-lubricating and maintenance-free during their service life.
