LFDL32-B INA

Carriage LFDL-B, bogie carriage

Stock
10 pcs in stock and ready for shipment
Brand INA
Article number LFDL32-B INA
Outside diameter 80mm
Width 43mm
Product description

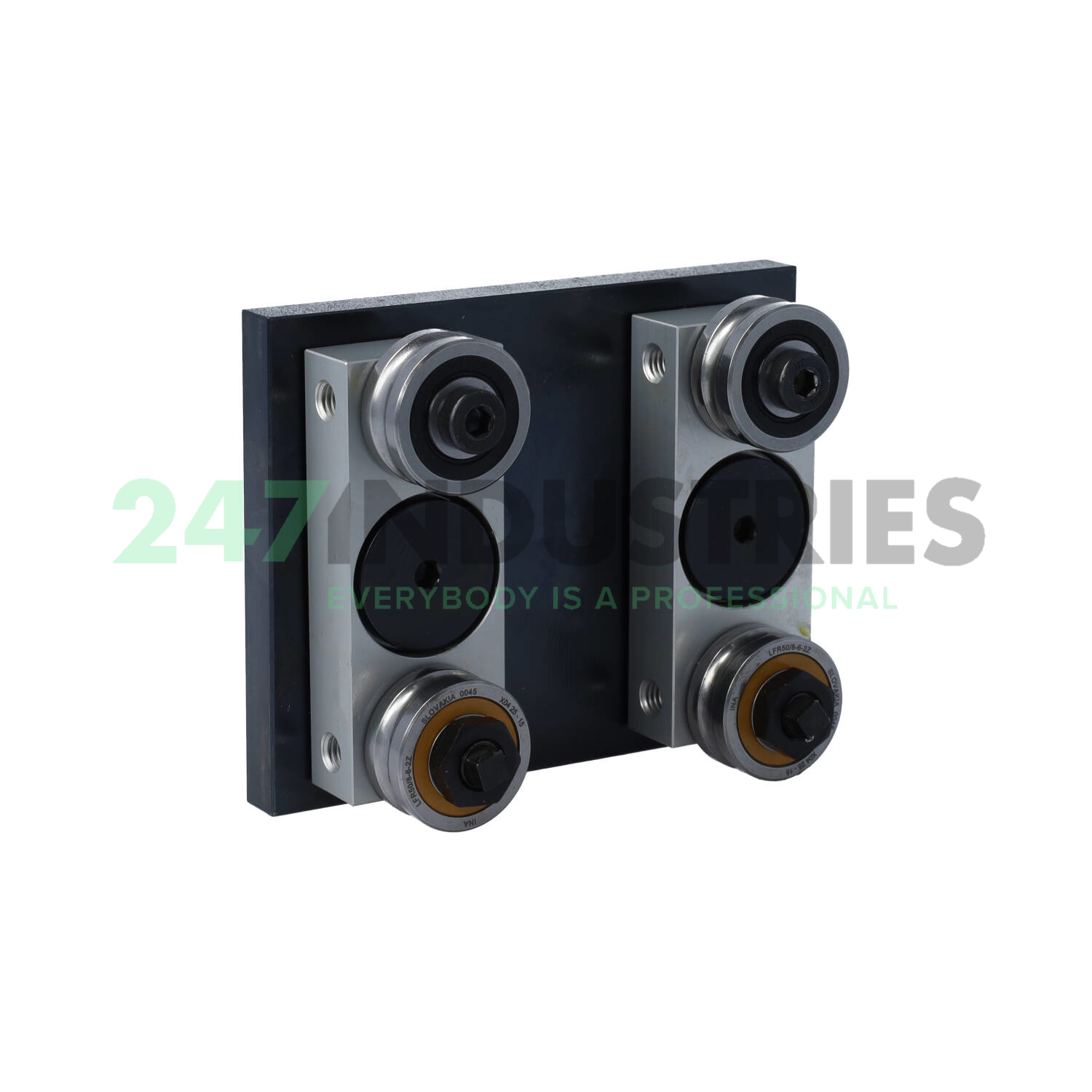

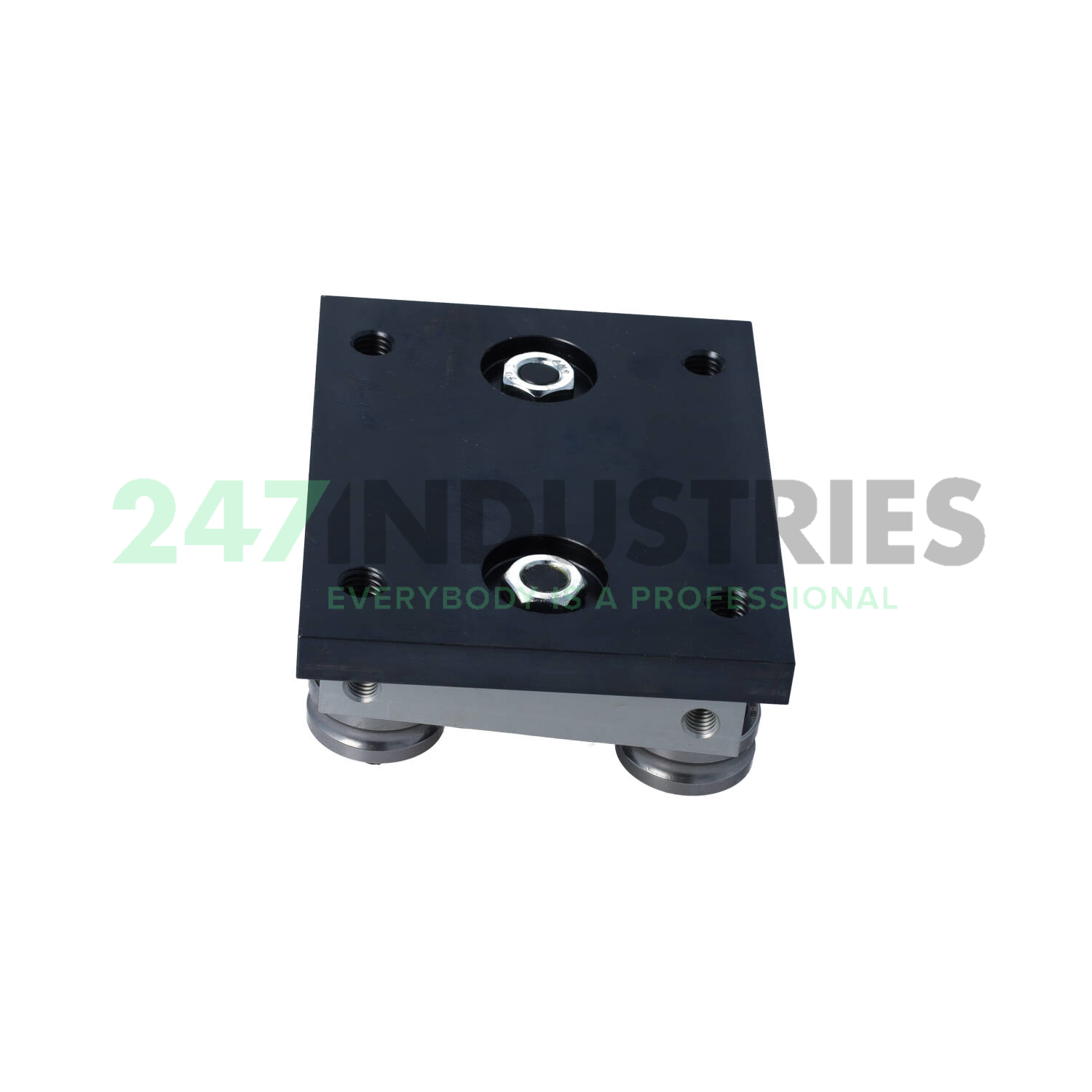

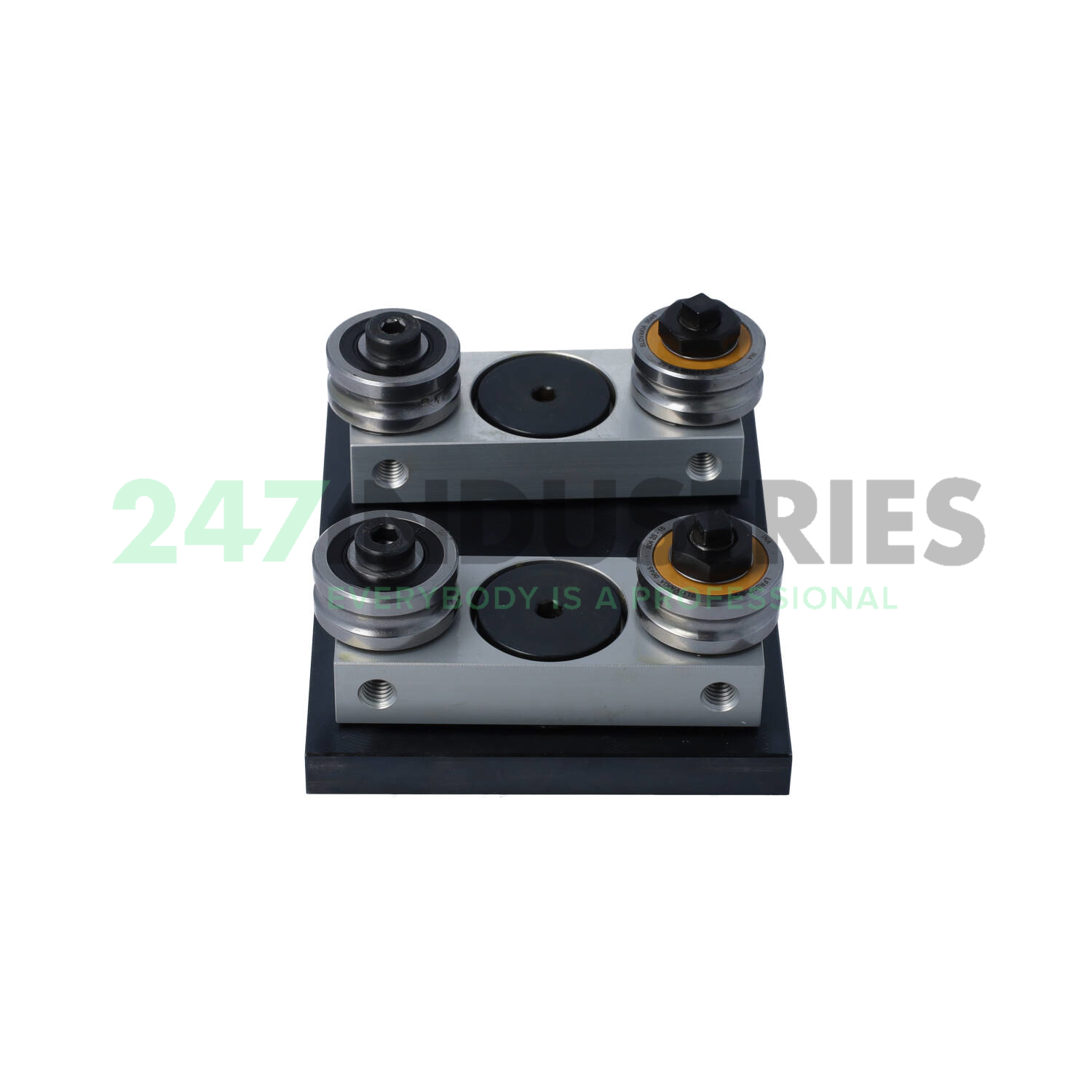

The LFDL32-B INA is a bogie carriage with adjustable clearance for use with closed curved, oval and circular guides. This carriage can be used for curved tracks. Straight INA rail segments connect seamlessly to the curved sections, allowing easy construction of tracks of your design. The carriage consists of a steel carriage plate and two aluminium swivel brackets. These brackets are supported axially and radially by roller bearings.

LFDL32-B INA carriages run quickly and quietly on INA profile at speeds of up to 10 m/s and a maximum acceleration of 50 m/s2. They can be used in combination with all rail segments of the appropriate size. Also, the track roller bearings feature double-sided gap seals and are self-lubricating and maintenance-free during their service life.

Read more Show less
Help with this product

Downloads and links

Similar to: LFDL32-B INA

Loading similair products

Product specifications

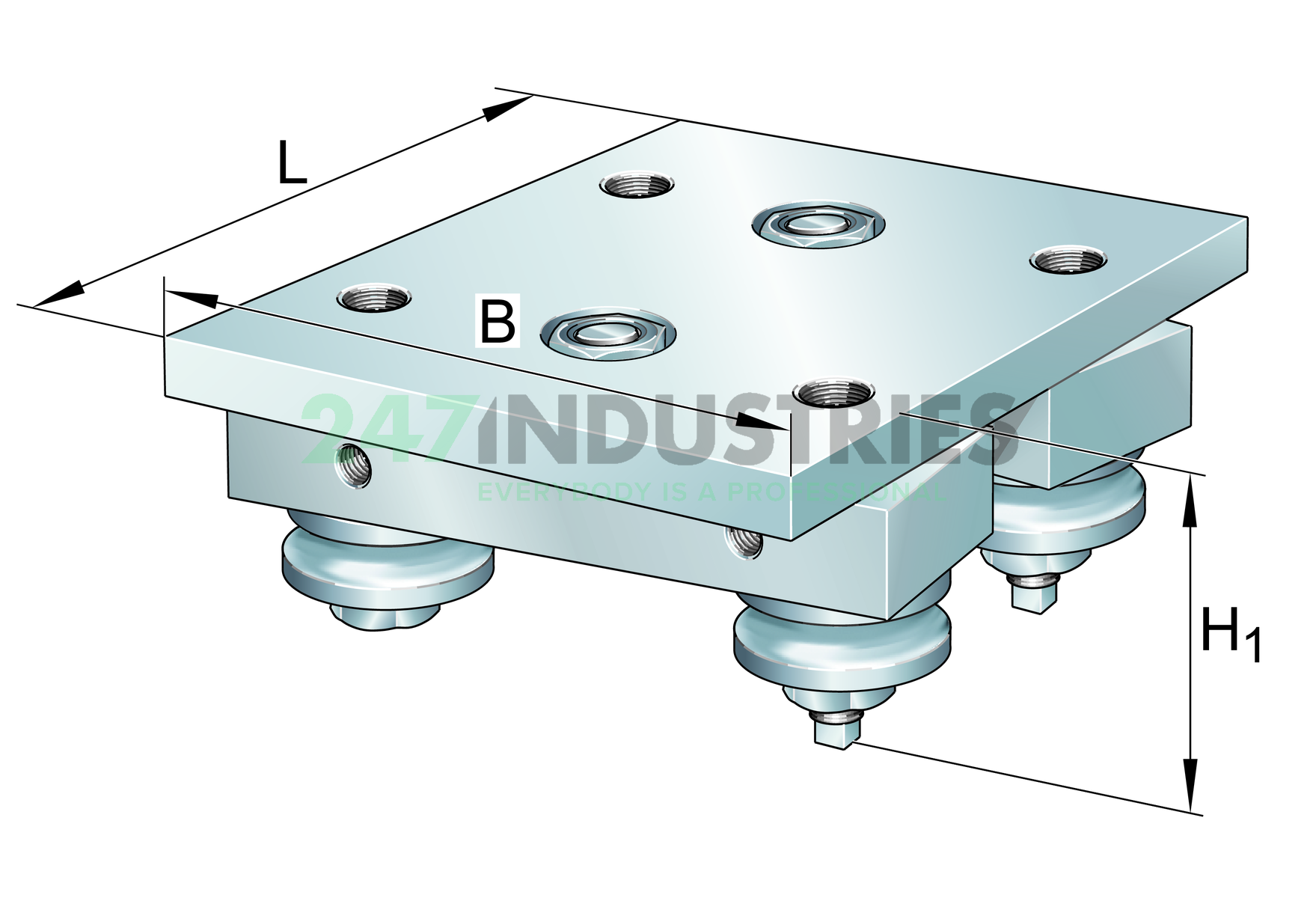

All dimensions

  1. b mm 80
  2. h 1 mm 43
  3. Outer (D) MM 80
  4. Width (B) MM 43
  5. Outer (D) Inch 3.1496
  6. Width (B) Inch 1.6929

Suffix description

  1. B Version

Technical details

  1. Availability 10 pcs
  2. Brand INA
  3. Item number LFDL32-B INA
  4. Also known as 0050831500000
  5. EAN 4012802054514
  6. Category Linear Bearing Part

Weight and Dimensions

  1. Weight (kg) 1

Data from Schaeffler (medias)

  1. ECLASS number 23-30-02-03
  2. ECLASS2 number 23-30-02-03
