LFKL52-SF INA

Carriage LFKL, compact carriage, clearance-free

Stock
8 pcs in stock and ready for shipment
Brand INA
Article number LFKL52-SF INA
Inside diameter 52mm
Outside diameter 145mm
Width 186mm
Product description

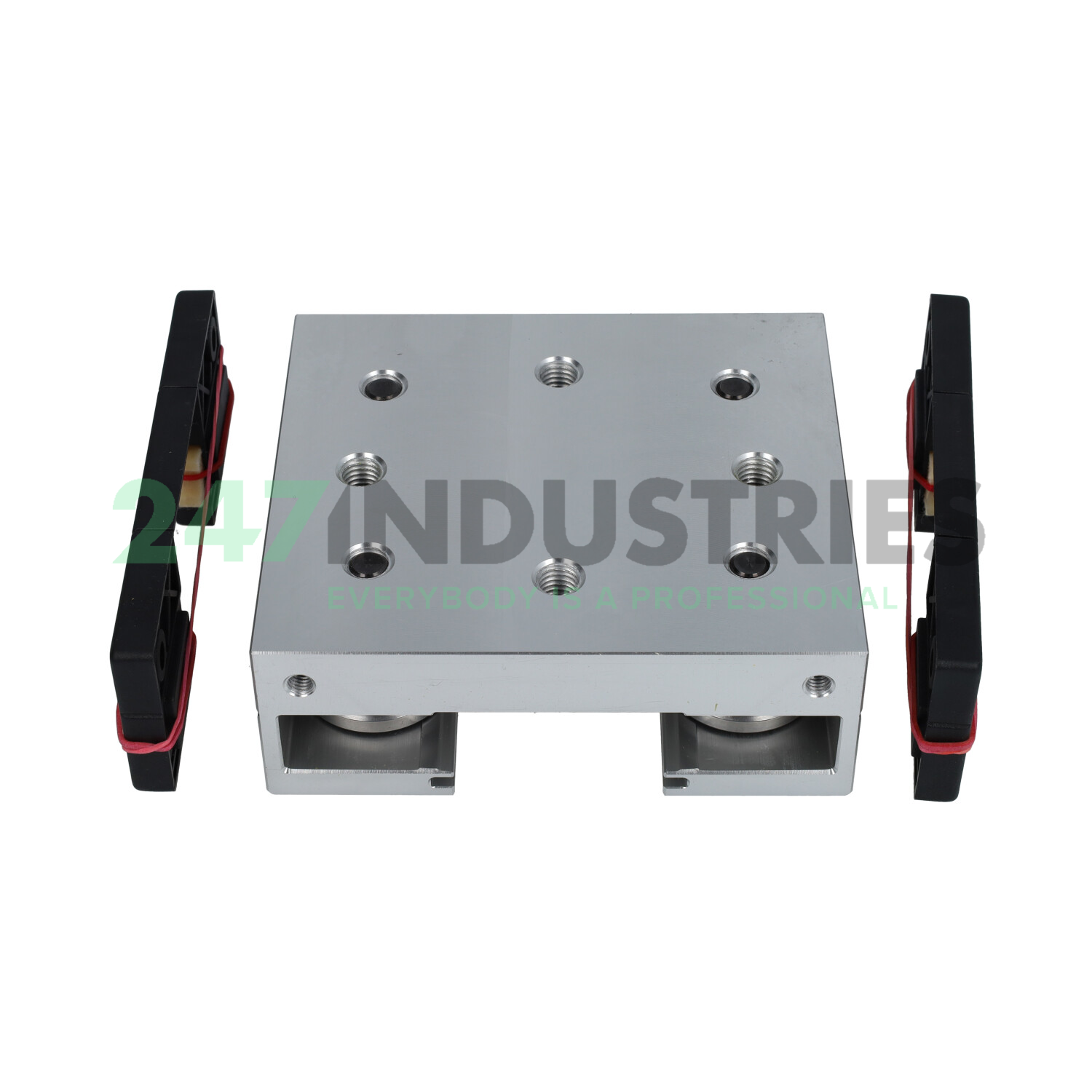

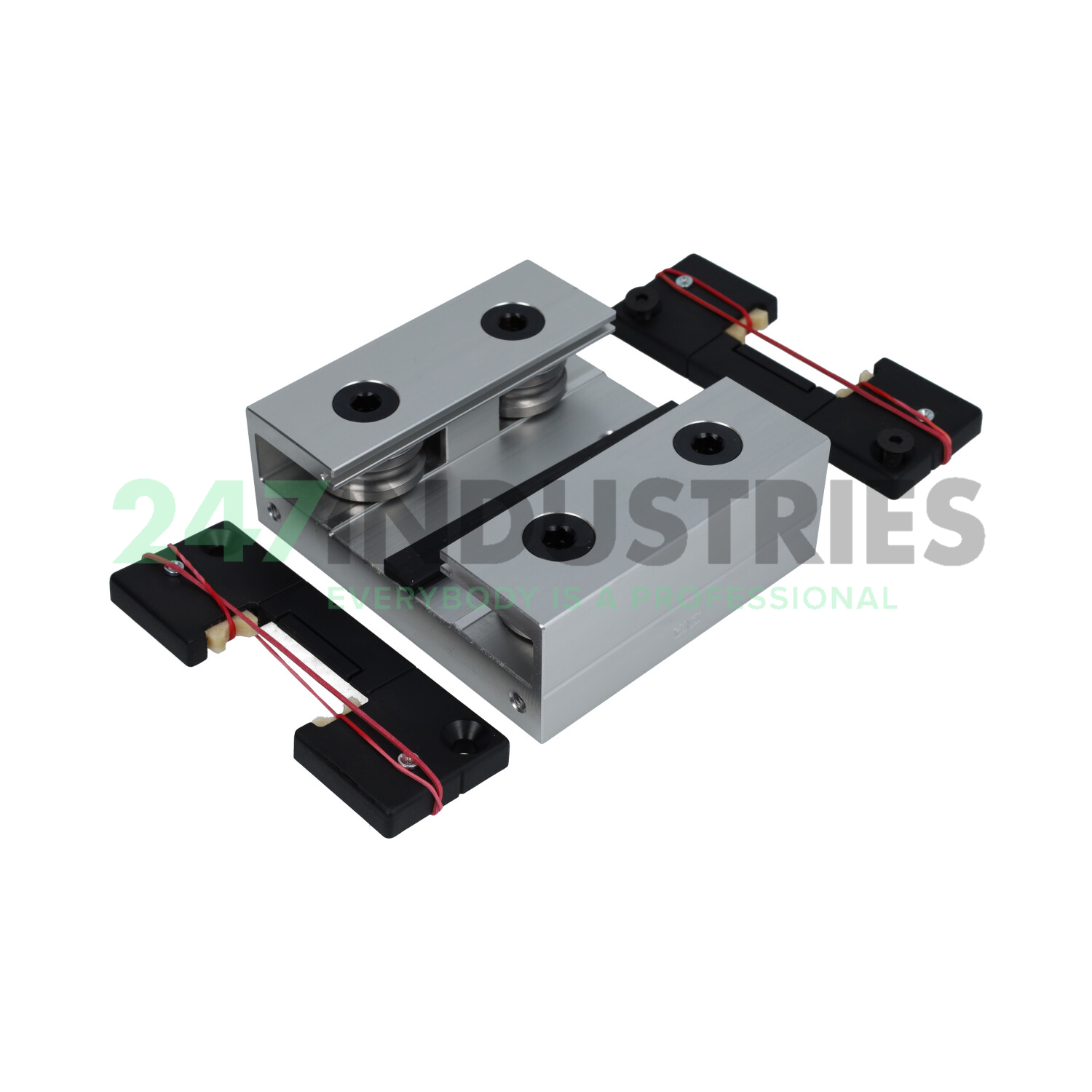

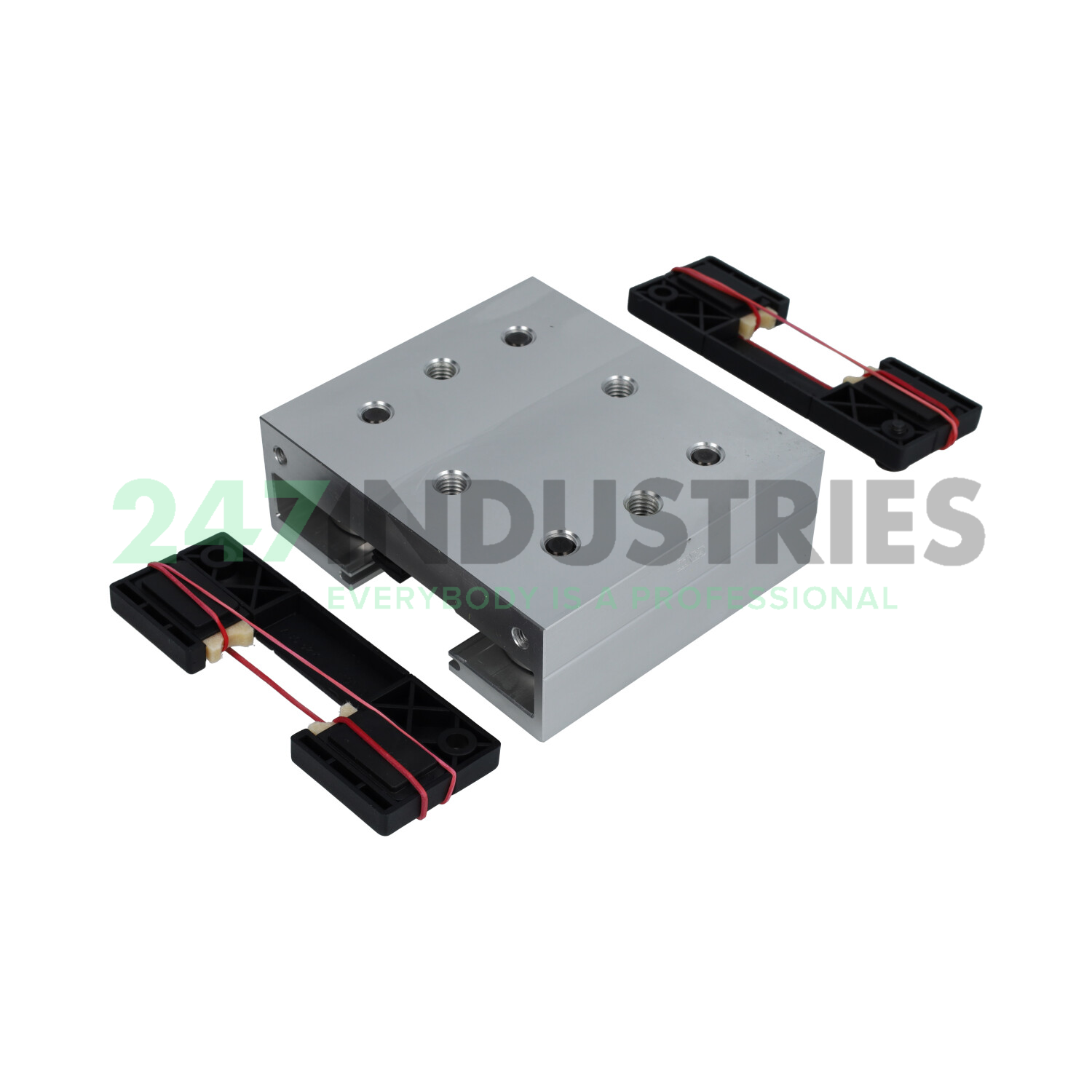

The LFKL52-SF INA is a compact carriage. This type is very suitable for use in contaminated environments. The closed design protects the track rollers from dirt particles. Two integrated lubrication units guarantee easy lubrication. The compact carriage consists of an anodized carriage plate, four concentric bolts, four track rollers, and two sealing strips. The two lubrication and cleaning units are supplied separately.

LFKL52-SF INA carriages run silent and clearance-free on INA profiles, at speeds of up to 10 m/s and a maximum acceleration of 50 m/s2. They can be used in conjunction with all rail segments of appropriate size except for curved LFSR rail segments. Thanks to the particularly accurate dimensions of INA rails no clearance adjustments are required. Additionally, the track roller bearings feature double-sided gap seals and are self-lubricating and maintenance-free during their service life.

Read more Show less
Help with this product

Downloads and links

Similar to: LFKL52-SF INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 52
  2. Outer (D) MM 145
  3. Width (B) MM 186
  4. Inner (d) Inch 2.0472
  5. Outer (D) Inch 5.7087
  6. Width (B) Inch 7.3228

Suffix description

  1. SF Bogie Carriage; Clearance-Free

Technical details

  1. Availability 8 pcs
  2. Brand INA
  3. Item number LFKL52-SF INA
  4. Also known as 0032203620000
  5. EAN 4012802418293
  6. Category Linear Ball Bearing Unit

Weight and Dimensions

  1. Weight (kg) 2.9

Product Properties

  1. Seal No Seal

Data from Schaeffler (medias)

  1. ECLASS number 23-30-02-03
  2. ECLASS2 number 23-30-02-03

Downloads and links

  1. Link to manufacturer Link to manufacturer
