Carriage LFLL, non-locating bearing carriage, clearance-free
| Stock |
|
| Brand | INA |
| Article number | LFLL32-SF INA |
| Inside diameter | 32mm |
| Outside diameter | 80mm |
| Width | 90mm |

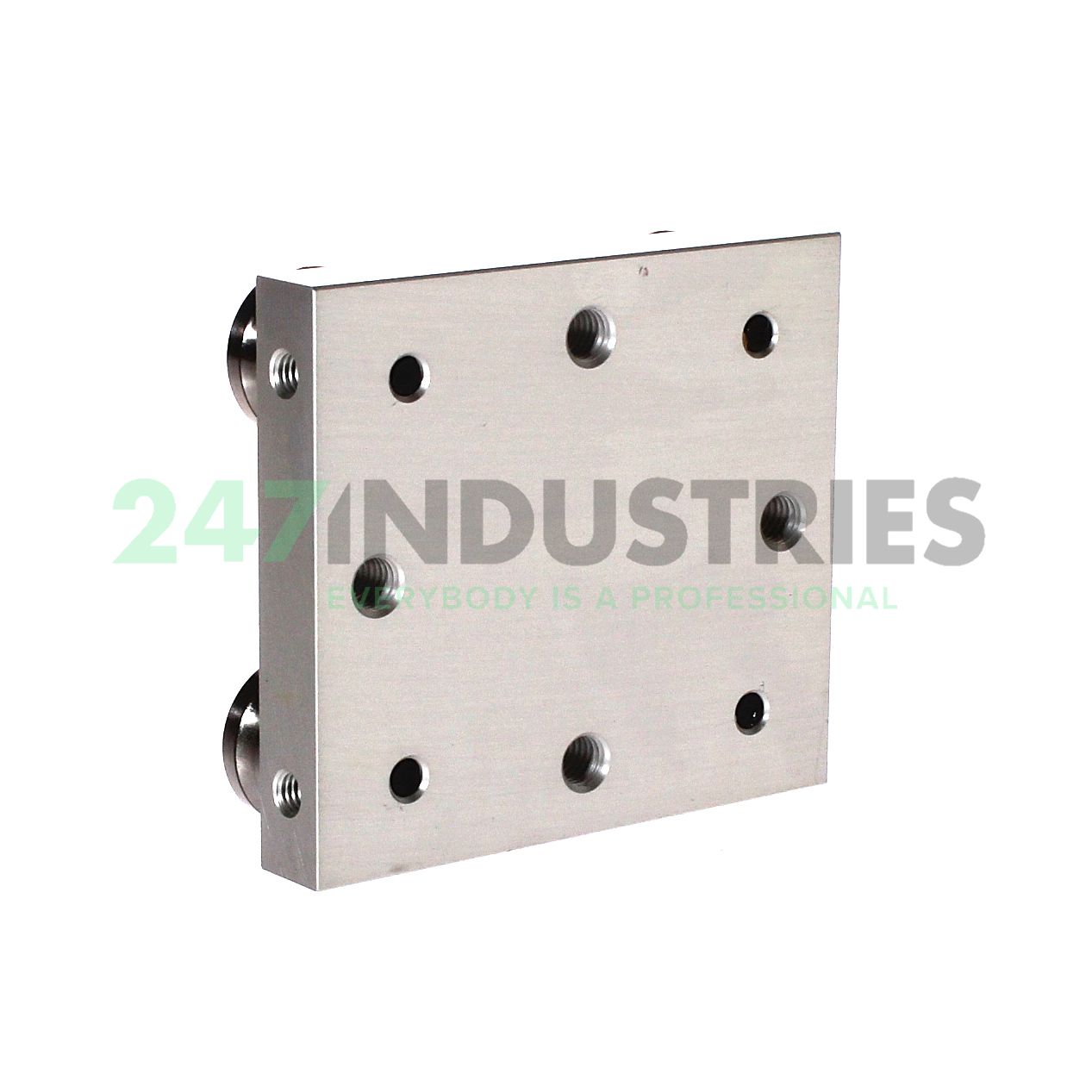

The solid LFLL32-SF INA is a non-locating bearing carriage. This type of carriage can only be used in fixed or non-locating bearing carriage systems with two parallel rail guides. The rollers can be adjusted axially. This will compensate rail spacing deviations of approx. 1 mm. The carriage consists of a carriage plate made from anodised aluminium, four screws and four non-locating track roller bearings. The track rollers come pre-assembled.
LFLL32-SF INA carriages run silent and clearance-free on INA profiles, at speeds of up to 10 m/s and a maximum acceleration of 50 m/s2. They can be used in conjunction with all rail segments of appropriate size except for curved LFSR rail segments. Thanks to the particularly accurate dimensions of INA rails no clearance adjustments are required. Additionally, the track roller bearings feature double-sided gap seals and are self-lubricating and maintenance-free during their service life.
