LFR50/8-6-2Z INA

19,60 ex VAT
€ 23,72 incl. VAT
€ 23,72 incl. VAT
19,60 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

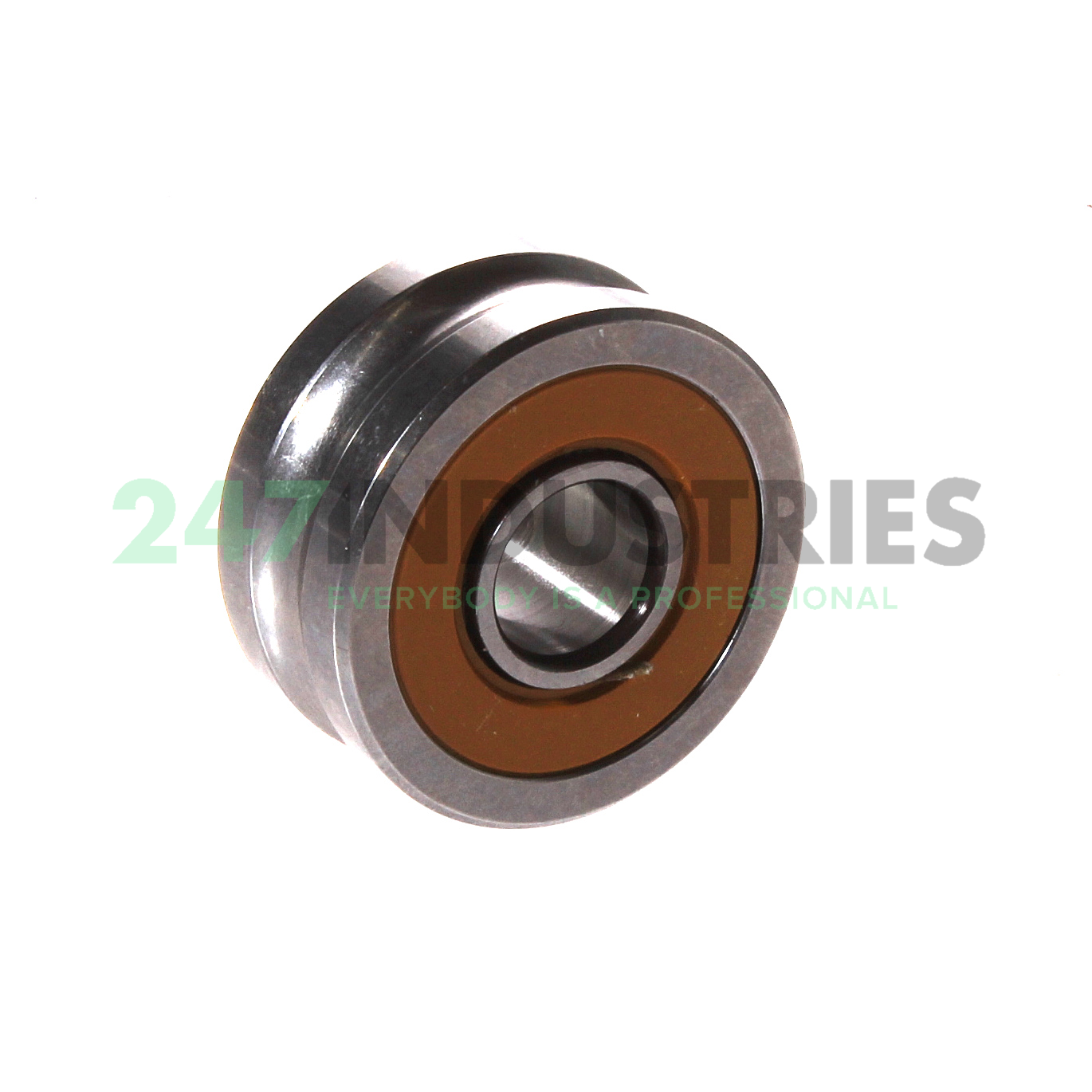

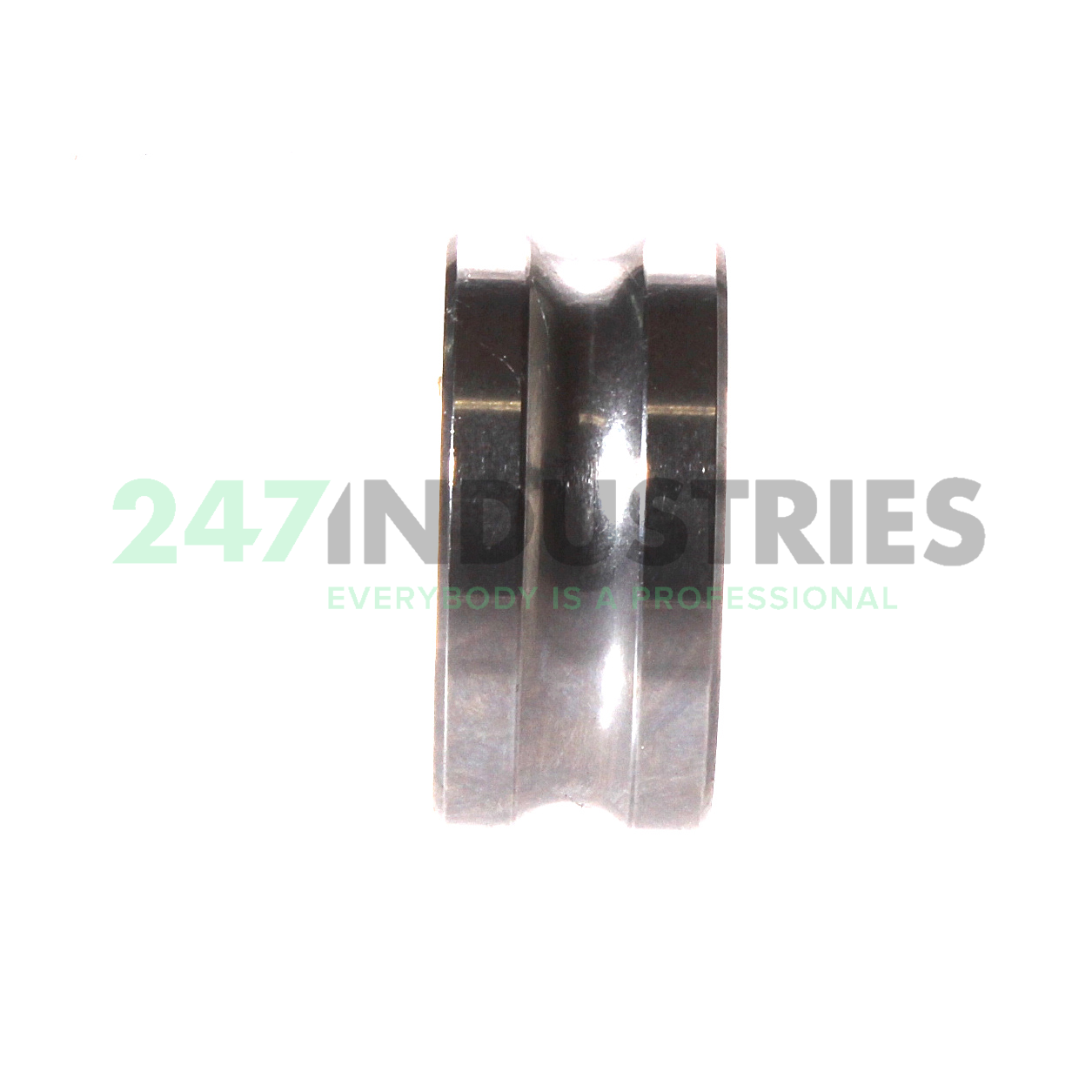

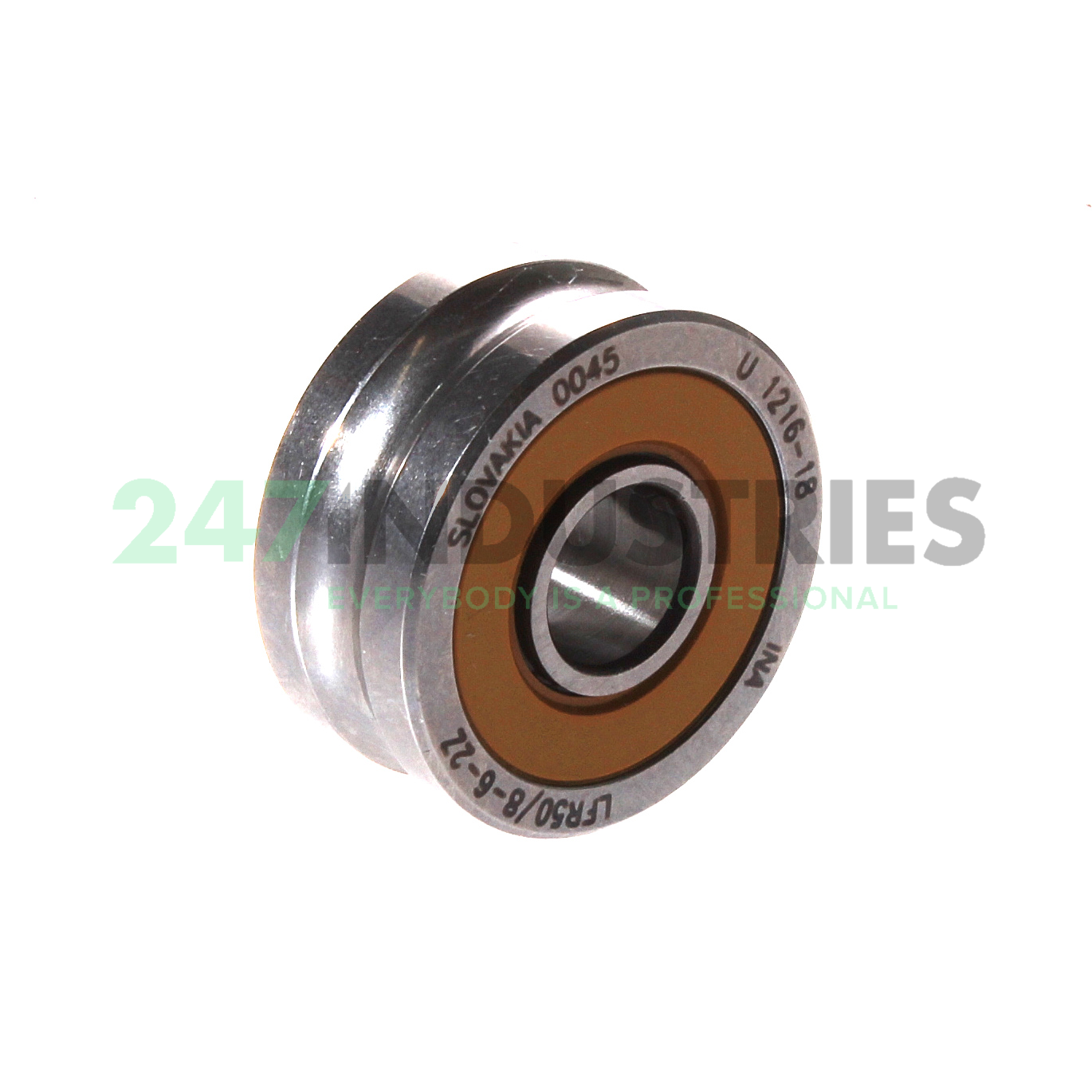

LFR50/8-6-2Z INA

Track rollers LFR, locating bearing track rollers

Stock
90 pcs in stock and ready for shipment
Brand INA
Article number LFR50/8-6-2Z INA
Inside diameter 8mm
Outside diameter 24mm
Width 11mm
Product description

The LFR50/8-6-2Z INA track roller bearing is a two-row angular contact bearing with a very thick-walled outer ring. With these track roller bearings, carriages will run quickly and quietly on guide rails at speeds up to 10 m/s and with a maximum acceleration of 50 m/s2.

The bearings can support high radial- and axial forces in both directions. The special curved shape of the outer ring creates two contact surfaces with the guide rail. Finally, these track rollers are self-lubricating and maintenance-free during their service-life.

Read more Show less
Help with this product

Downloads and links

Similar to: LFR50/8-6-2Z INA

Loading similair products

Product specifications

All dimensions

  1. b mm 11
  2. D mm 8
  3. Inner (d) MM 8
  4. Outer (D) MM 24
  5. Width (B) MM 11
  6. Inner (d) Inch 0.315
  7. Outer (D) Inch 0.9449
  8. Width (B) Inch 0.4331
  9. D max mm 24

Suffix description

  1. 2Z Two Metallic Shields

Technical details

  1. Availability 90 pcs
  2. Brand INA
  3. Item number LFR50/8-6-2Z INA
  4. Also known as 0008419430000
    LFR50/8KDD
  5. EAN 4012802787979
  6. Category Support Roller

Weight and Dimensions

  1. Weight (kg) 0.02

Product Properties

  1. Seal ZZ/2Z - Steel Seal on Two Sides
  2. Running Surface Cylindrical

Data from Schaeffler (medias)

  1. ECLASS number 23-30-92-90
  2. ECLASS2 number 23-30-92-90

Downloads and links

  1. Link to manufacturer Link to manufacturer
