Track rollers LFR, locating bearing track rollers
| Stock |
|
| Brand | INA |
| Article number | LFR5204-16-2Z INA |
| Inside diameter | 20mm |
| Outside diameter | 52mm |
| Width | 22,6mm |

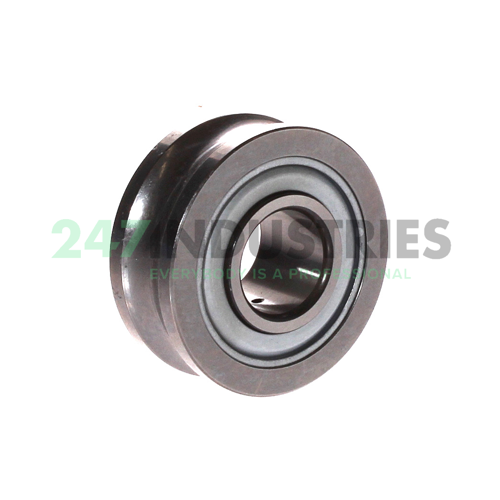

The LFR5204-16-2Z INA track roller bearing is a two-row angular contact bearing with a very thick-walled outer ring. With these track roller bearings, carriages will run quickly and quietly on guide rails at speeds up to 10 m/s and with a maximum acceleration of 50 m/s2.

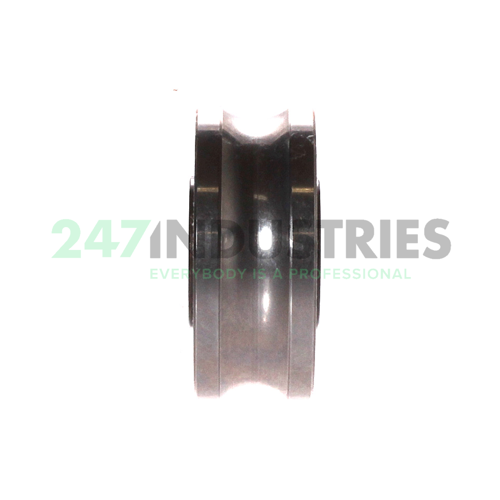

The bearings can support high radial- and axial forces in both directions. The special curved shape of the outer ring creates two contact surfaces with the guide rail. Finally, these track rollers have easy inner-ring lubrication.
