LFR5206-25-2Z INA

Track rollers LFR, locating bearing track rollers

Stock
122 pcs in stock and ready for shipment
Brand INA
Article number LFR5206-25-2Z INA
Inside diameter 25mm
Outside diameter 72mm
Width 25,8mm
Product description

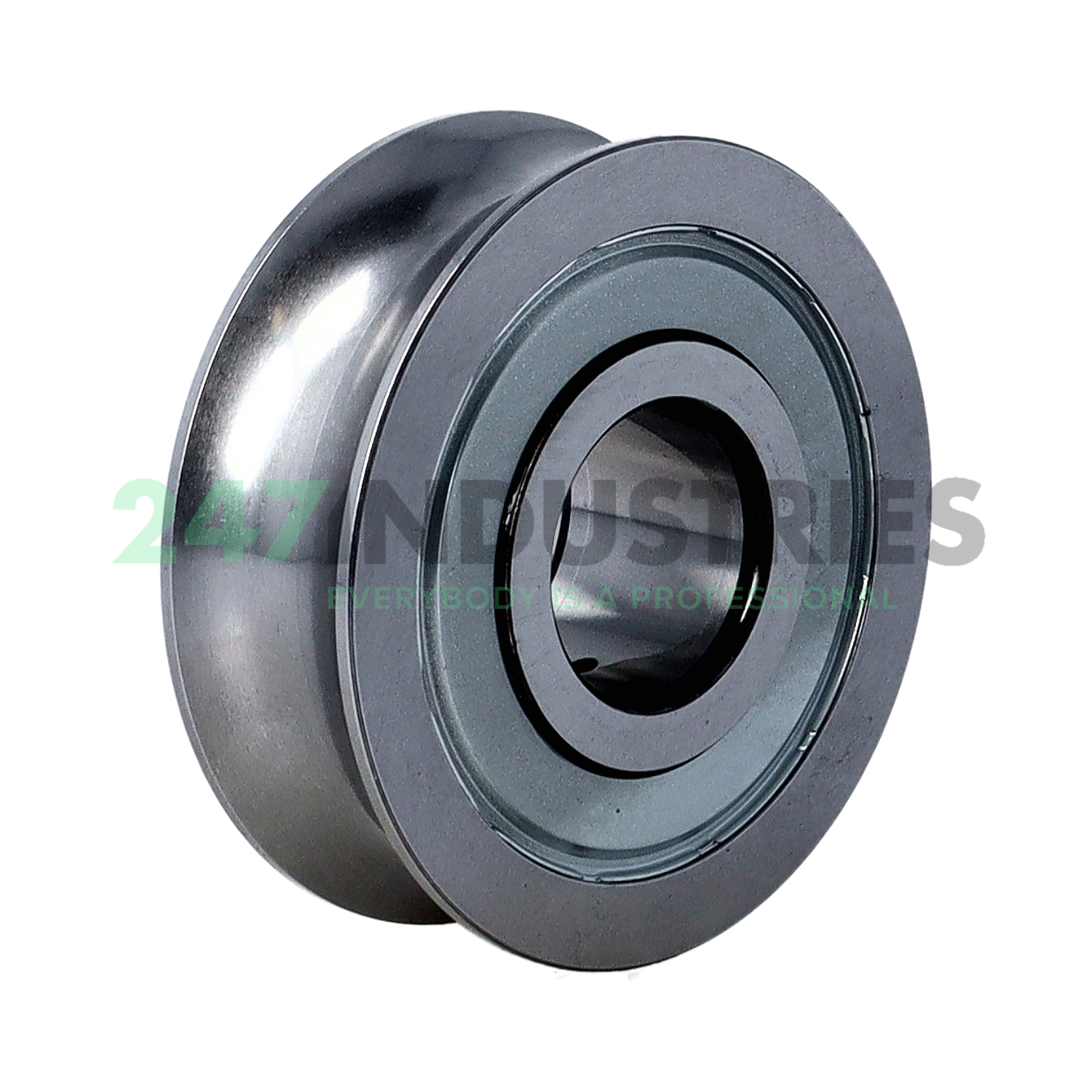

The LFR5206-25-2Z INA track roller bearing is a two-row angular contact bearing with a very thick-walled outer ring. With these track roller bearings, carriages will run quickly and quietly on guide rails at speeds up to 10 m/s and with a maximum acceleration of 50 m/s2.

The bearings can support high radial- and axial forces in both directions. The special curved shape of the outer ring creates two contact surfaces with the guide rail. Finally, these track rollers have easy inner-ring lubrication.

Read more Show less
Help with this product

Downloads and links

Similar to: LFR5206-25-2Z INA

Loading similair products

Product specifications

All dimensions

  1. b mm 25,8
  2. D mm 25
  3. Inner (d) MM 25
  4. Outer (D) MM 72
  5. Width (B) MM 25,8
  6. Inner (d) Inch 0.9843
  7. Outer (D) Inch 2.8346
  8. Width (B) Inch 1.0157
  9. D max mm 72

Suffix description

  1. 2Z Two Metallic Shields

Technical details

  1. Availability 122 pcs
  2. Brand INA
  3. Item number LFR5206-25-2Z INA
  4. Also known as 0004329540000
  5. EAN 4012802786088
  6. Category Support Roller

Weight and Dimensions

  1. Weight (kg) 0.43

Product Properties

  1. Seal ZZ/2Z - Steel Seal on Two Sides
  2. Running Surface Cylindrical

Data from Schaeffler (medias)

  1. ECLASS number 23-30-92-90
  2. ECLASS2 number 23-30-92-90
