LFRI50/8-6-2Z INA

Track rollers LFRI, locating bearing track rollers

Stock
45 pcs in stock and ready for shipment
Brand INA
Article number LFRI50/8-6-2Z INA
Inside diameter 6mm
Outside diameter 15mm
Width 24mm
Product description

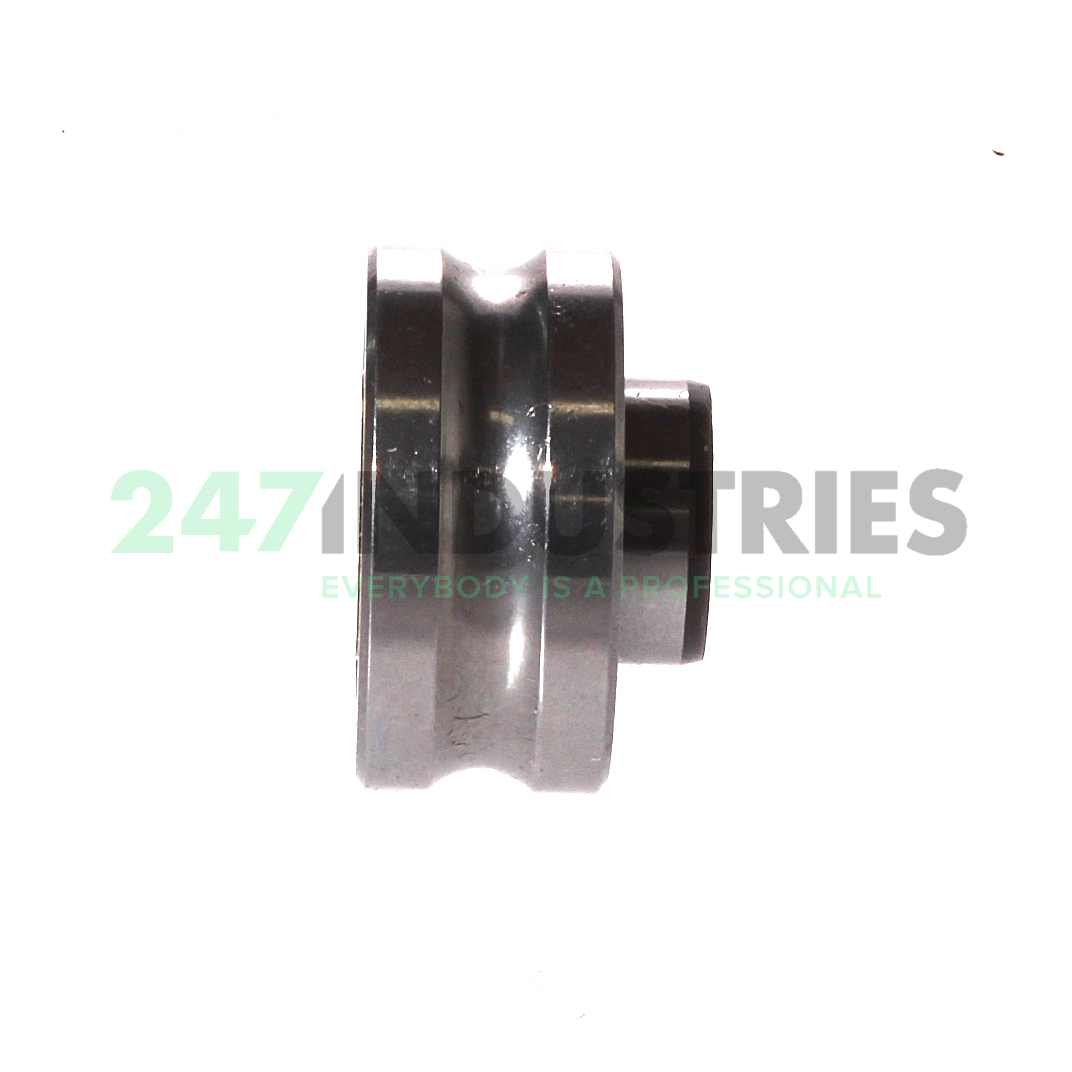

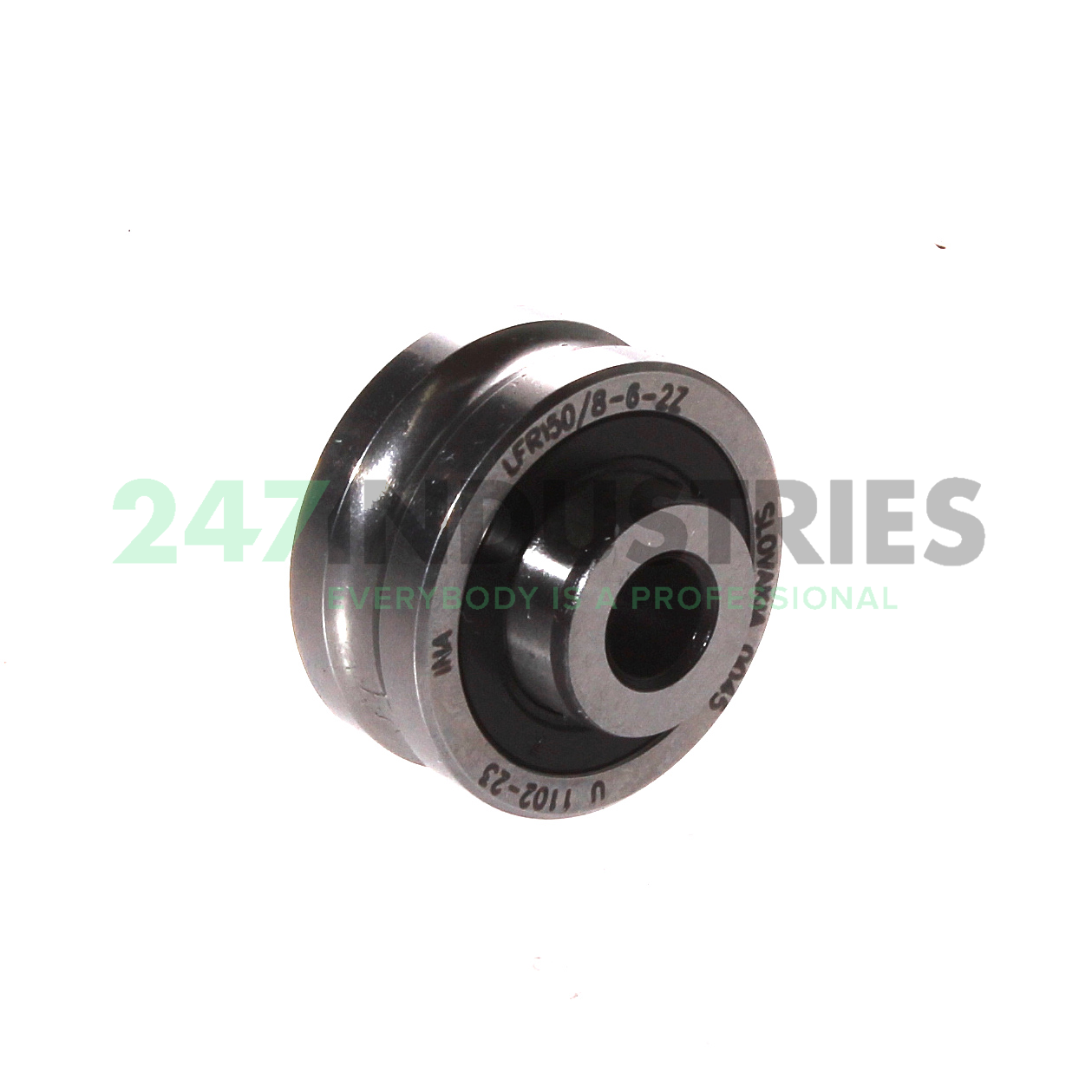

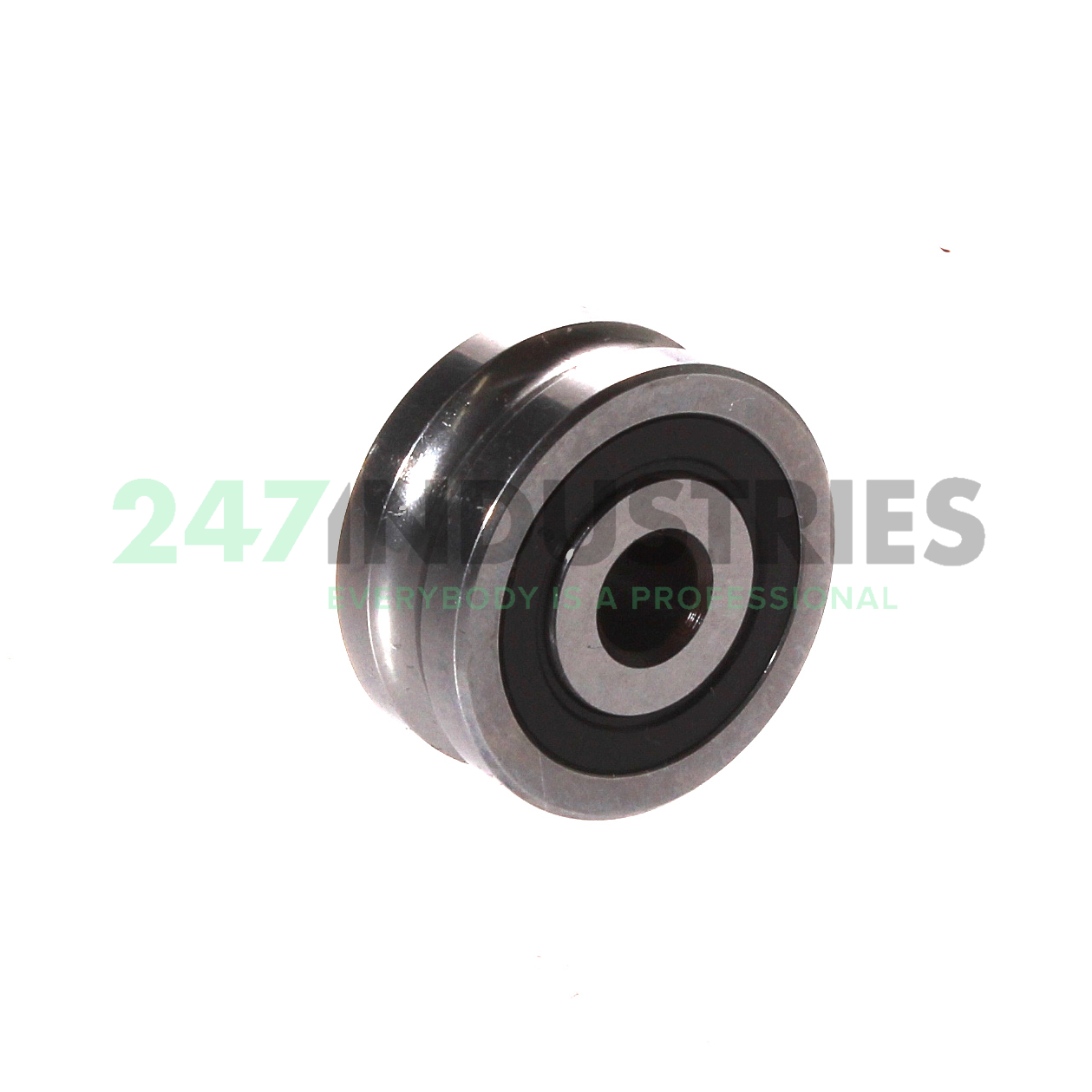

The LFRI50/8-6-2Z INA track roller bearing is a two-row angular contact bearing with a very thick-walled outer ring and an extended inner ring. This inner ring allows for accurate fixation to any construction, using a standard screw (not included). With these track roller bearings, carriages will run quickly and quietly on guide rails at speeds up to 10 m/s and with a maximum acceleration of 50 m/s2.

The bearings can support high radial- and axial forces in both directions. The special curved shape of the outer ring creates two contact surfaces with the guide rail. Finally, these track rollers are self-lubricating and maintenance-free during their service-life.

Read more Show less
Help with this product

Downloads and links

Similar to: LFRI50/8-6-2Z INA

Loading similair products

Product specifications

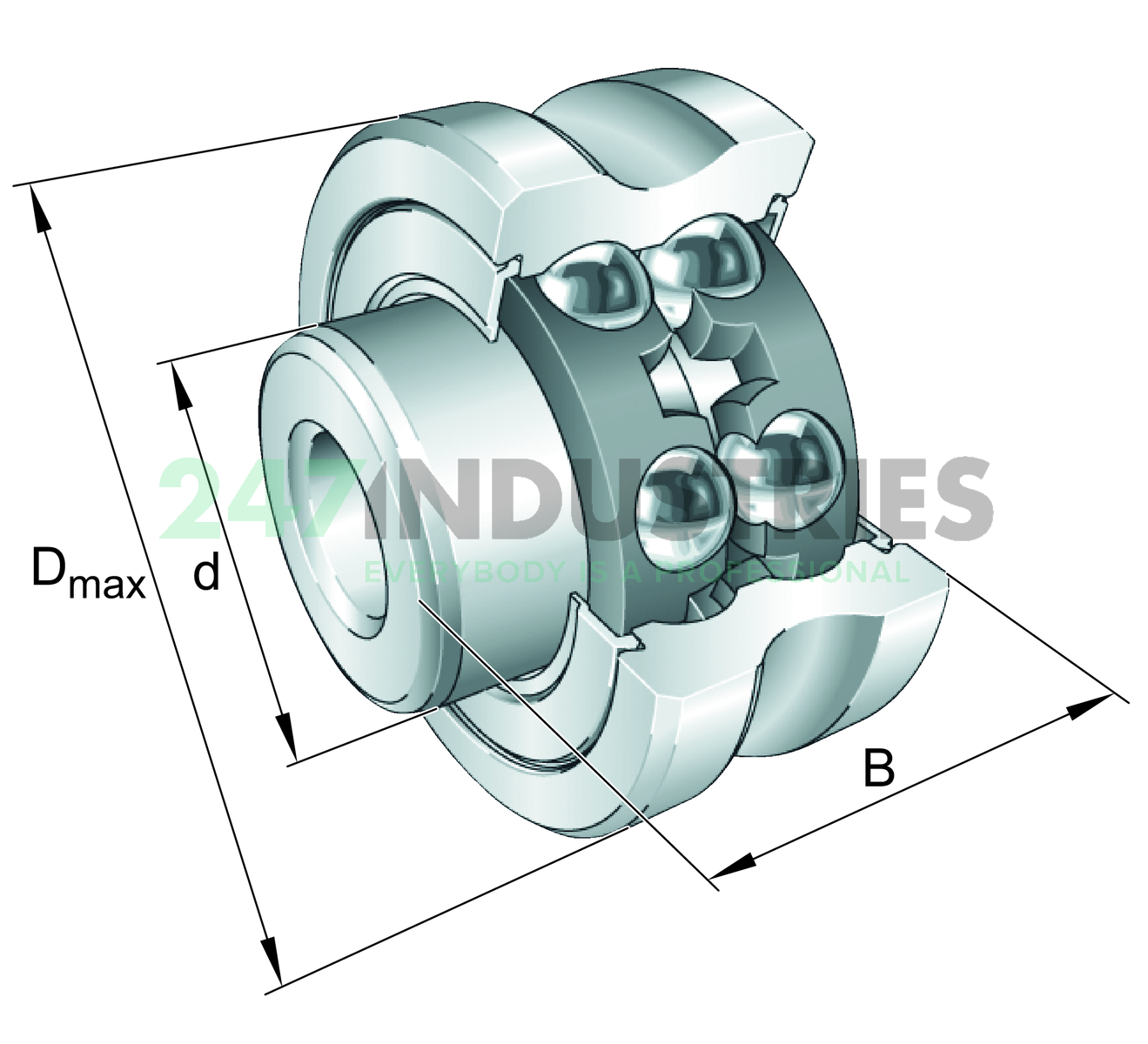

All dimensions

  1. b mm 15,1
  2. D mm 6,1
  3. Inner (d) MM 6
  4. Outer (D) MM 15
  5. Width (B) MM 24
  6. Inner (d) Inch 0.2362
  7. Outer (D) Inch 0.5906
  8. Width (B) Inch 0.9449
  9. D max mm 24

Suffix description

  1. 2Z Two Metallic Shields

Technical details

  1. Availability 45 pcs
  2. Brand INA
  3. Item number LFRI50/8-6-2Z INA
  4. Also known as 0096618080000
  5. EAN 4012802834192
  6. Category Support Roller

Weight and Dimensions

  1. Weight (kg) 0.025

Product Properties

  1. Seal ZZ/2Z - Steel Seal on Two Sides
  2. Running Surface Cylindrical

Data from Schaeffler (medias)

  1. ECLASS number 23-30-92-90
  2. ECLASS2 number 23-30-92-90
