LM503349 Timken

Cone for single-row tapered roller bearing

Stock
43 pcs in stock and ready for shipment
Brand Timken
Article number LM503349 Timken
Inside diameter 45,99mm
Width 18mm
Product description

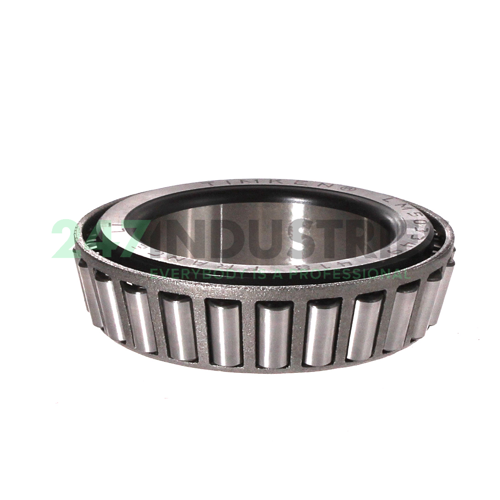

The LM503349 Timken is a cone for a single-row tapered roller bearing. This removable cone consists of the inner ring and rollers of the bearing. Together with a separately available cup (or outer ring), these parts make up a complete tapered roller bearing. The inner and outer rings have conical raceways and the rollers are tapered. This design enables tapered roller bearings to absorb radial and axial forces (in one direction).

The geometrical qualities of tapered roller bearings prevent sliding movements between the raceways and rollers. This will keep component wear down to a minimum. However, a minimum load is required for proper bearing operation. Because cone and cup are separable, they can easily be mounted. In addition, end play (axial clearance) or preload can be adjusted by moving the components axially during assembly.

For reliable operation of your bearing, it is best to replace cone and cup at the same time. We recommend taking components from the same manufacturer. This prevents bearing problems caused by different internal bearing profiles, differences in material, and in tolerances. Always combine the LM503349 Timken with a matching cup from the same manufacturer.

Read more Show less
Help with this product

Similar to: LM503349 Timken

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 45,99
  2. Width (B) MM 18
  3. Inner (d) Inch 1.8105
  4. Width (B) Inch 0.7087

Technical details

  1. Availability 43 pcs
  2. Brand Timken
  3. Item number LM503349 Timken
  4. Also known as KLM503349
    KLM503349-20024
    KLM503349-20C25
    KLM503349-20E38
    LM503349-20024
  5. Category Cone for Tapered Roller Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.21
