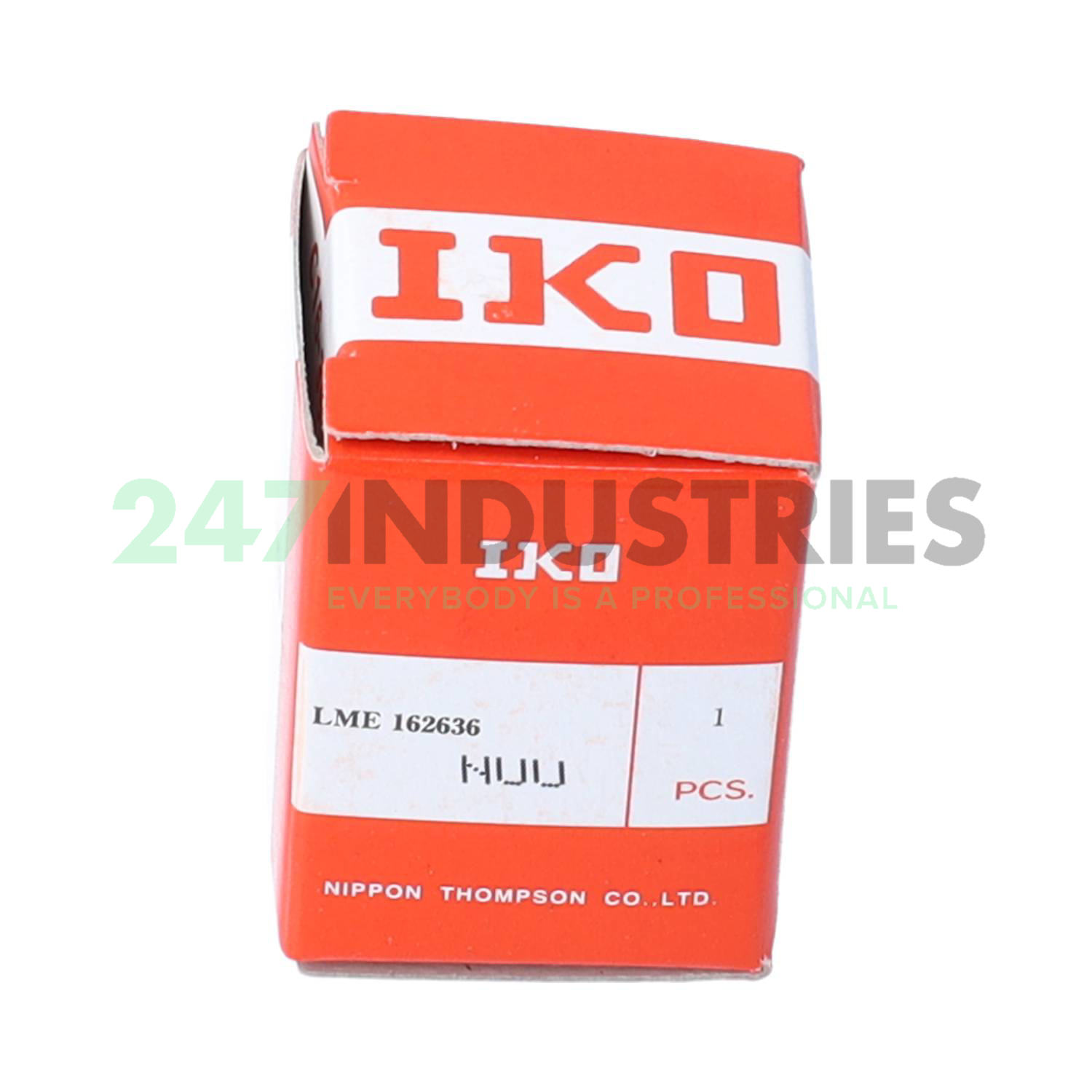

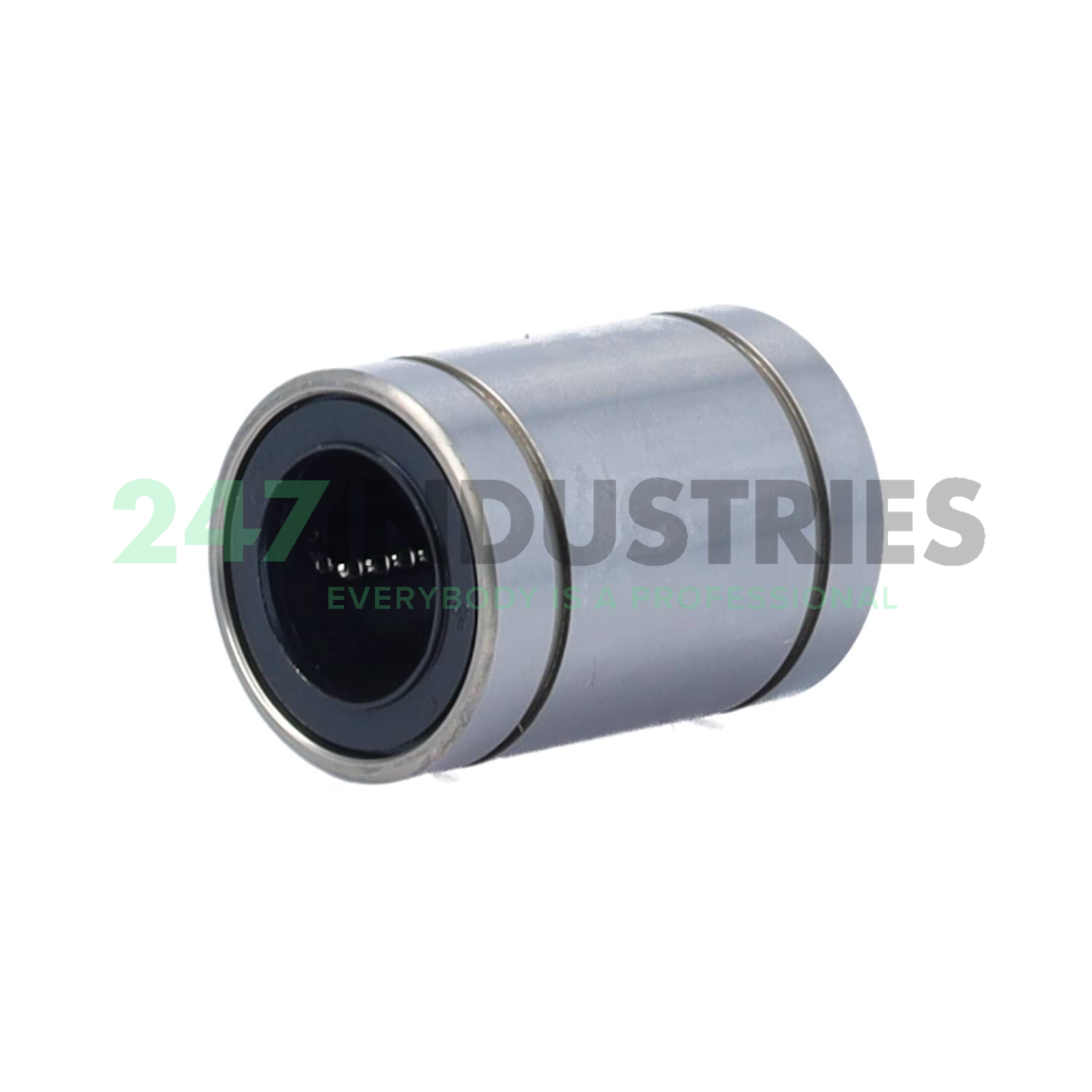

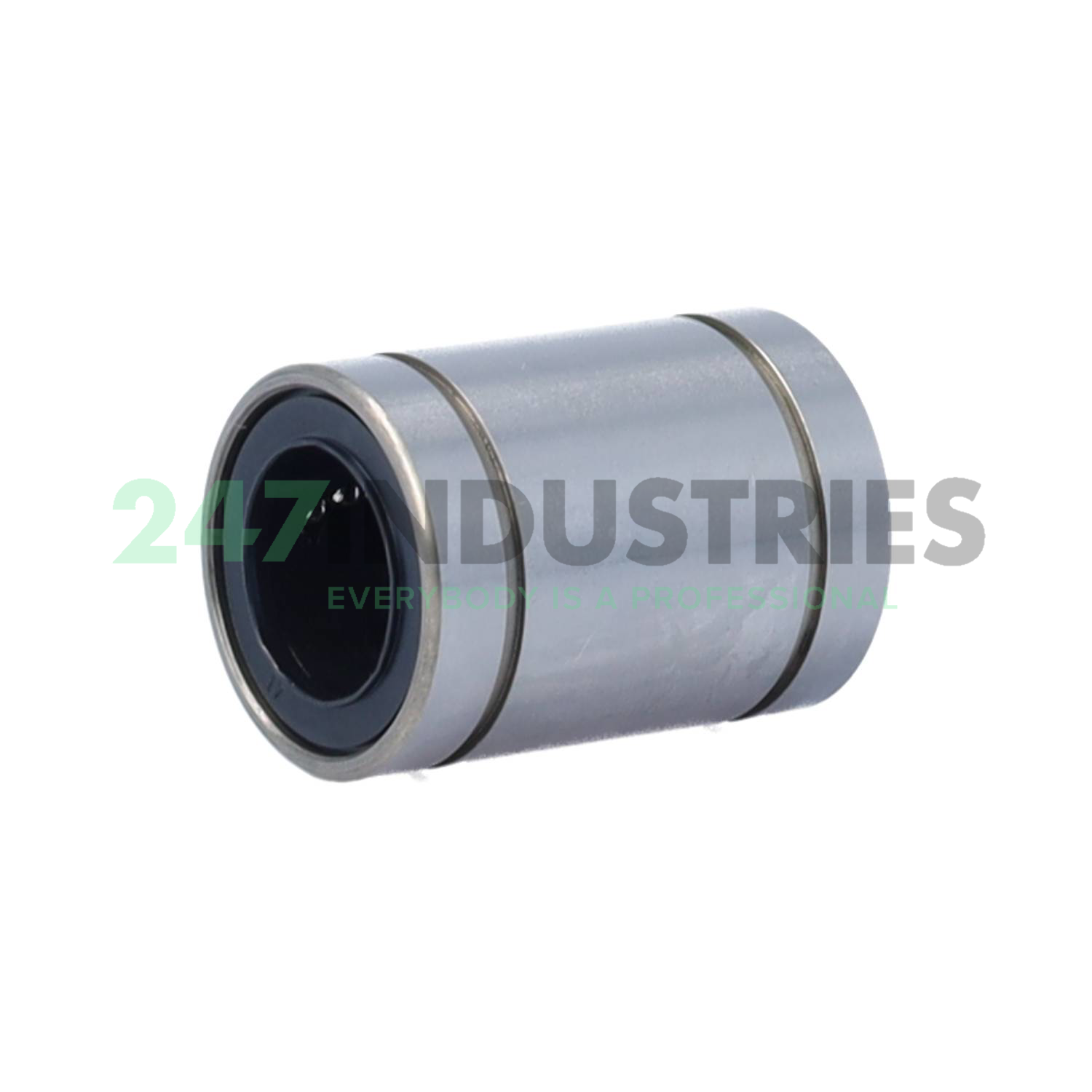

LME162636NUU IKO

All dimensions

1. Inner (d) MM 16
2. Outer (D) MM 26
3. Width (B) MM 36
4. Inner (d) Inch 0.6299
5. Outer (D) Inch 1.0236
6. Width (B) Inch 1.4173

Suffix description

1. N Synthetic Resin
2. UU The Two Seal Types Incorporate Seals With Superior Dust Protection Performance At Both Ends Of The External Cylinder For Preventing Intrusion Of Foreign Matter. The Maximum Allowable Temperature For Seals Is 120°C

Technical details

1. Availability 10 pcs on Fri 20 Dec
2. Brand IKO
3. Item number LME162636NUU IKO
4. Also known as KB1636PP
   KB16-PP
   LAA16X26X36.2RS
   LBCR16-2LS

5. Category Linear Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.0475

Product Properties

1. Seal 2L - LS-seal at Both Sides
