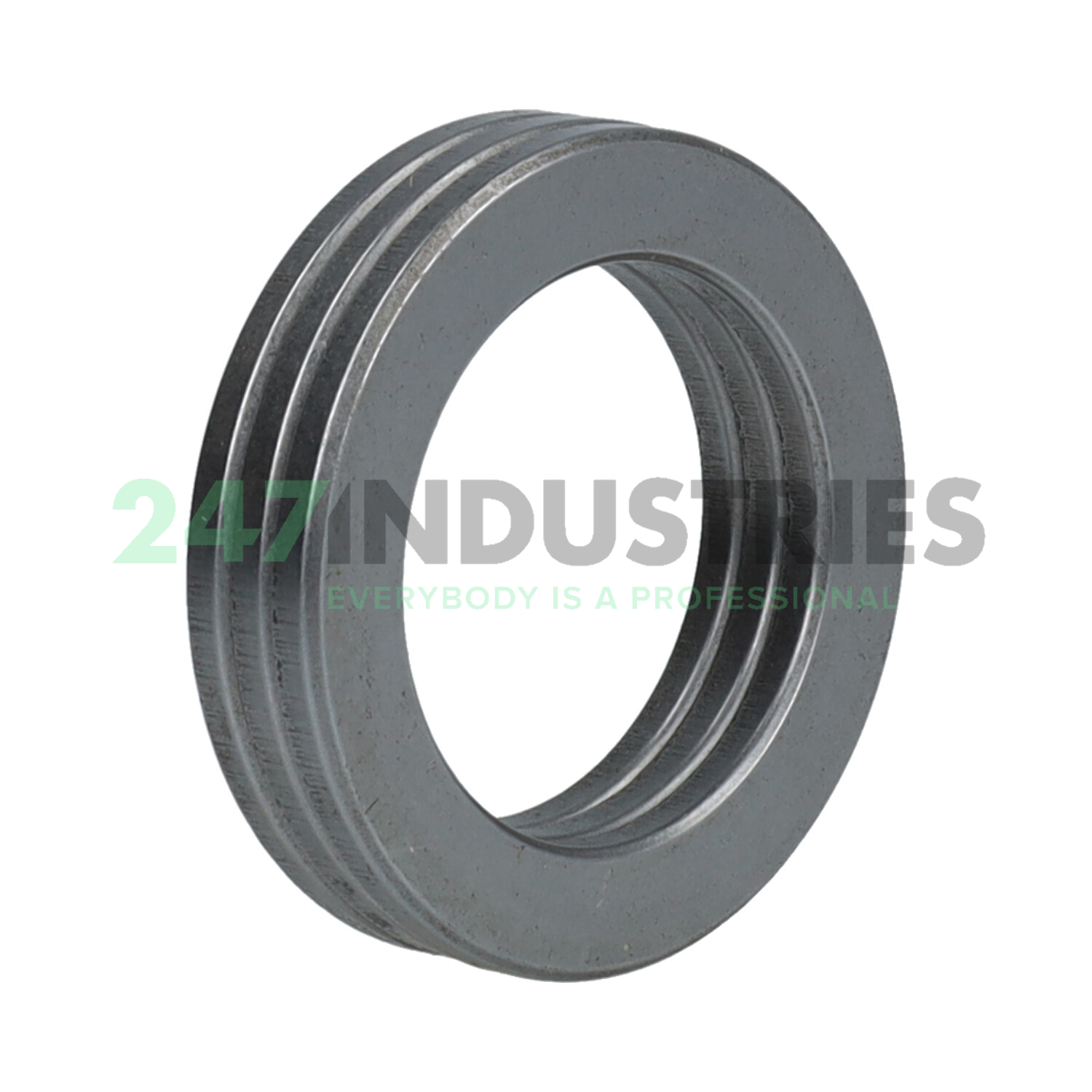

LS3552 INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 52
3. Width (B) MM 3,5
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.1378
7. Outside diameter track washer (D) mm 52
8. Width (b) mm 3,5
9. Chamfer width (a min) mm 1

Technical details

1. Availability 130 pcs
2. Brand INA
3. Item number LS3552 INA
4. Also known as 0000550930000

5. EAN 4012802713909
6. Category Washer for Needle Roller Thrust Bearings

Weight and Dimensions

1. Weight (kg) 0.029

Data from Schaeffler (medias)

1. Chamfer angle 45
2. ECLASS number 23-05-91-90
3. ECLASS2 number 23-05-91-90
4. Medias description Bearing washers, suitable for AXK and K811

Downloads and links

1. Link to manufacturer Link to manufacturer
