LS80105 INA

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 105
3. Width (B) MM 5,75
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 4.1339
6. Width (B) Inch 0.2264
7. Outside diameter track washer (D) mm 105
8. Width (b) mm 5,75
9. Chamfer width (a min) mm 1,5

Technical details

1. Availability 18 pcs
2. Brand INA
3. Item number LS80105 INA
4. Also known as 0000551070000

5. EAN 4012802713916

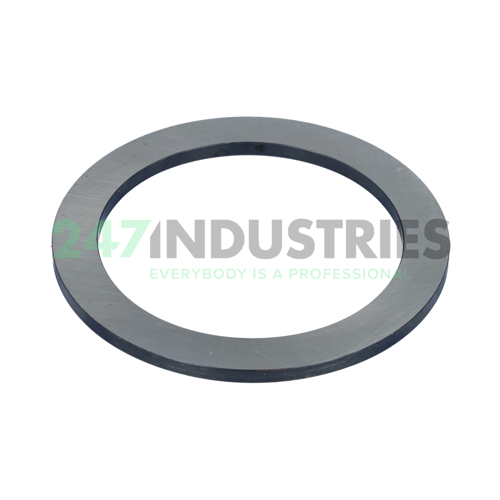

6. Category Washer for Needle Roller Thrust Bearings

Weight and Dimensions

1. Weight (kg) 0.151

Data from Schaeffler (medias)

1. Chamfer angle 45
2. ECLASS number 23-05-91-90
3. ECLASS2 number 23-05-91-90
4. Medias description Bearing washers, suitable for AXK and K811
