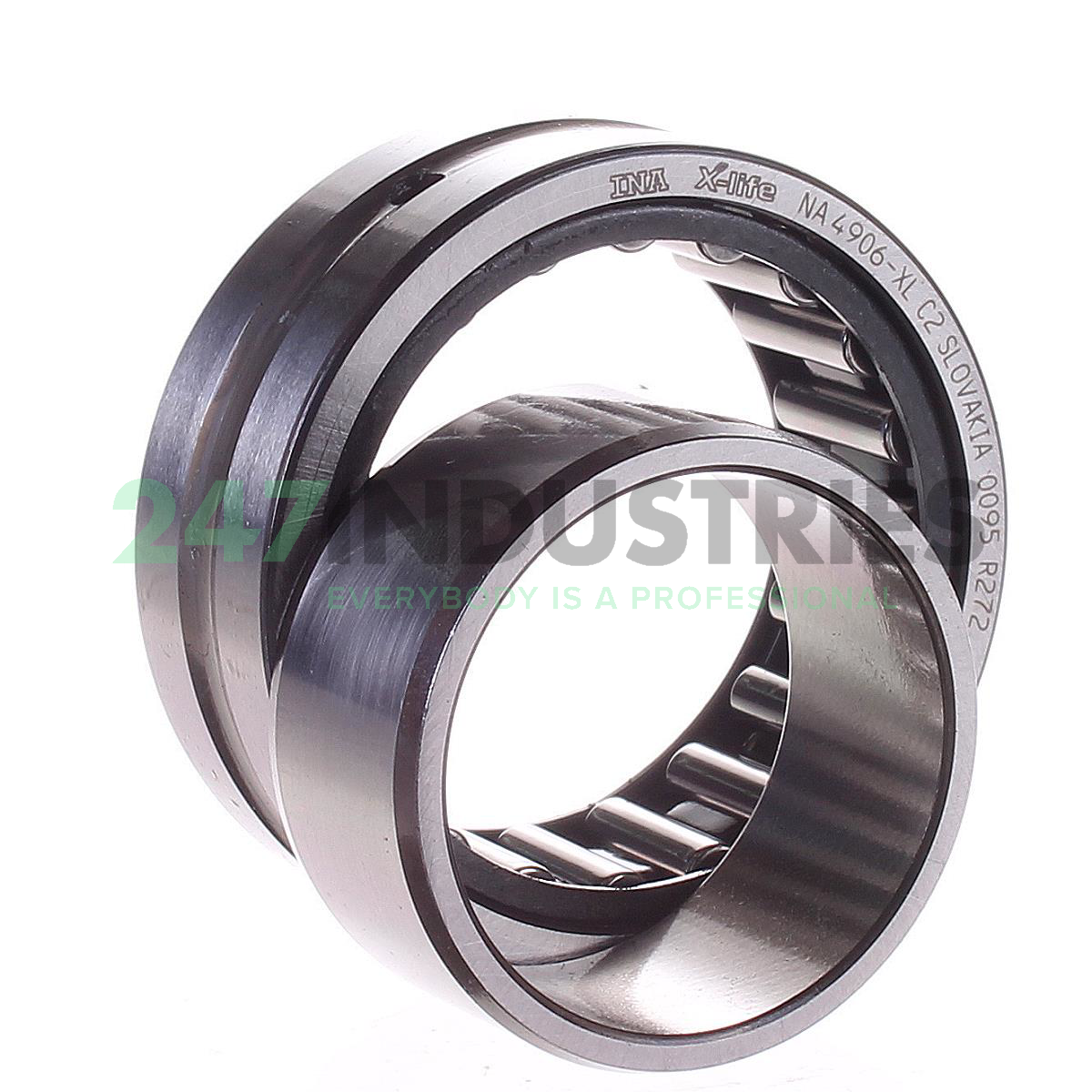

NA4906-XL-C2 INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 47
3. Width (B) MM 17
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.6693
7. Width (b) mm 17

Suffix description

1. XL X-Life
2. C2 Bearing Internal Clearance Smaller Than Normal

Technical details

1. Availability 37 pcs
2. Brand INA
3. Item number NA4906-XL-C2 INA
4. Also known as 0506596000020
   NA4906-C2

5. EAN 4012802691931
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.102

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 35500
2. Limiting speed (n G) 12600
3. Reference speed (n ϑr) 6600
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07
