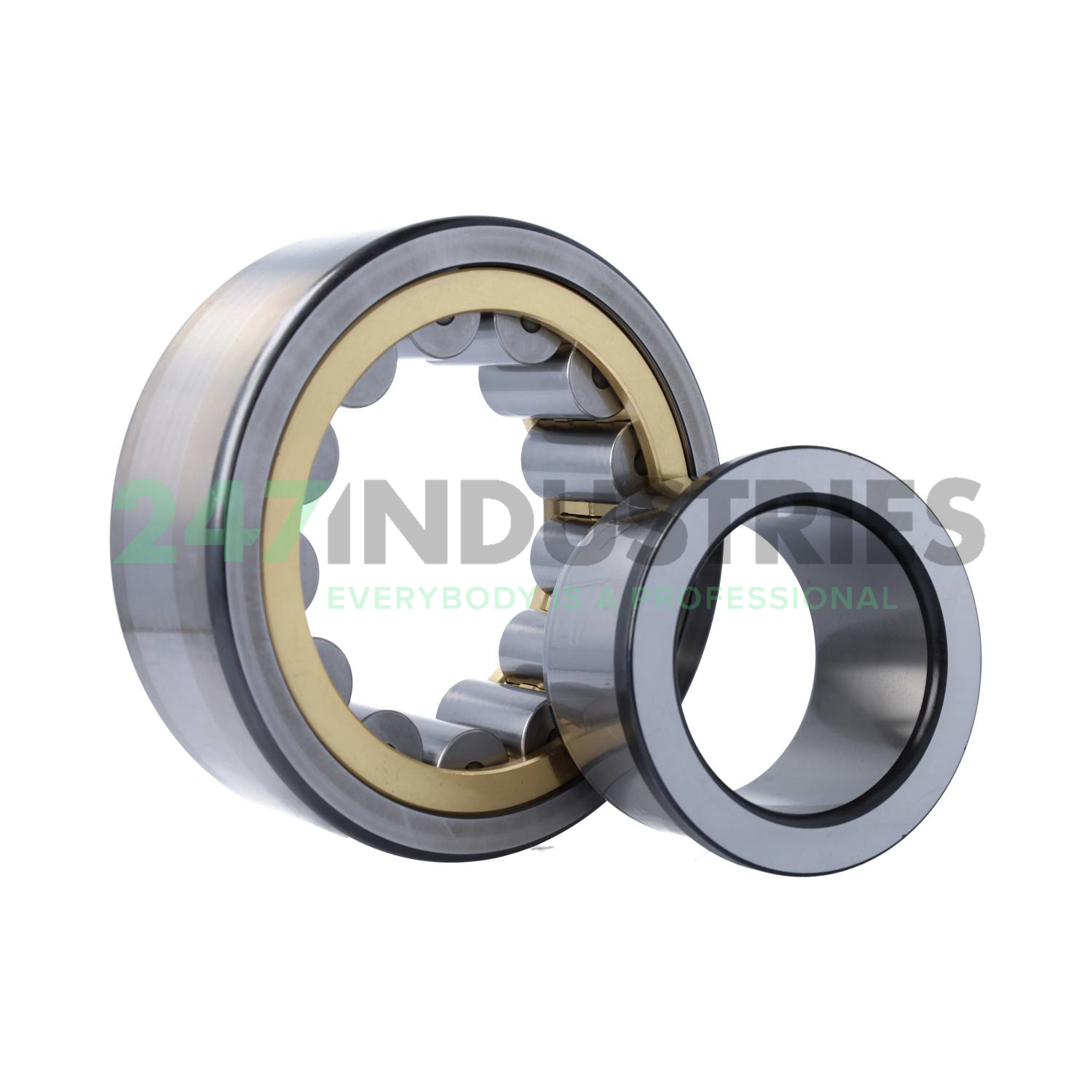

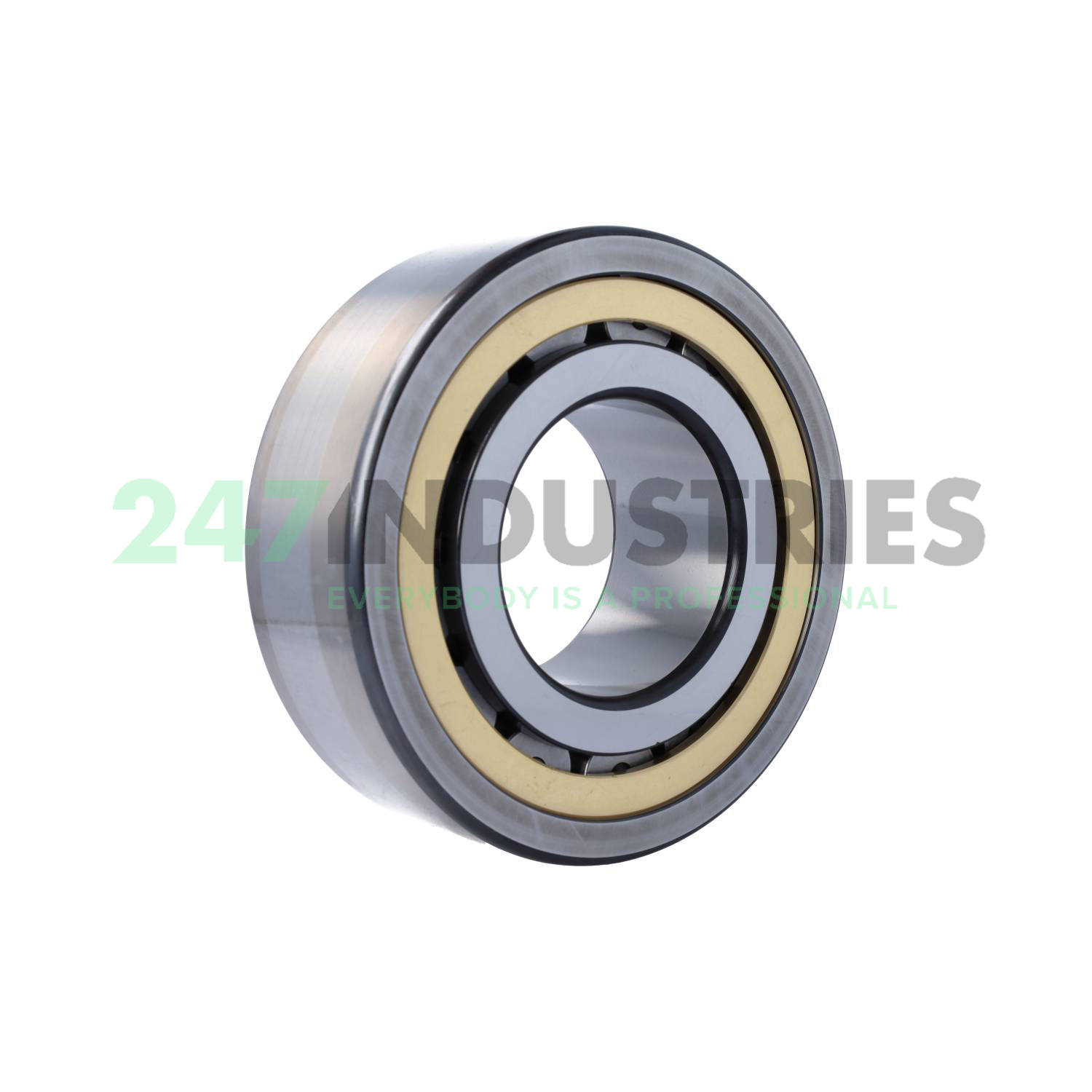

NJ2320-E-XL-MPAX-ILR-C3 FAG

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 215
3. Width (B) MM 73
4. Inner (d) Inch 3.937
5. Outer (D) Inch 8.4646
6. Width (B) Inch 2.874

Suffix description

1. E Increased Load Capacity
2. XL X-Life
3. MPAX Rib-Guided Single-Piece Solid Brass Cage Is A Further Development Of FAG Cage Types MPA And MP1A And Will Replace These Types Successively. It Has Greater Durability With Regard To Shock Loads And Vibrations Than It's Predecessors And It's Especially Well Suited For Applications Involving High Loads
4. ILR Increased Load Rating
5. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 2 pcs
2. Brand FAG
3. Item number NJ2320-E-XL-MPAX-ILR-C3 FAG
4. Also known as 3004088890030
   LSL192320-TB-C3
   LSL192320-TB-XL-C3
   NJ2320-E-MPAX-ILR-C3

5. EAN 4064328037311
6. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 13.5

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type MA - Brass Cage, Centered on Outer Ring
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
