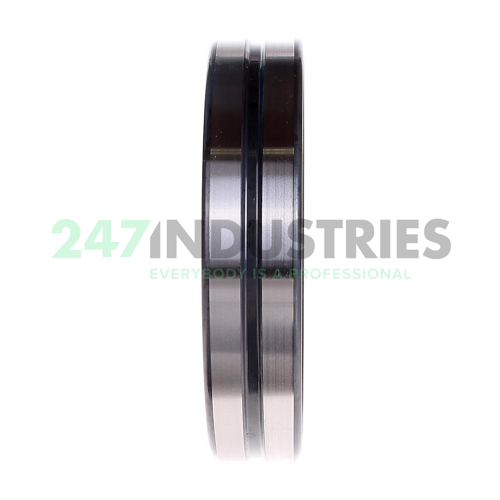

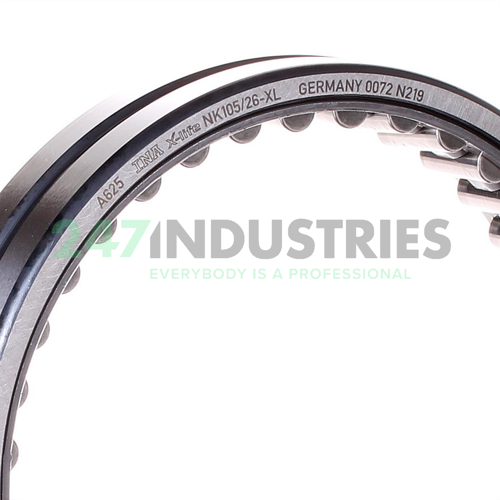

NK105/26-XL INA

All dimensions

1. Inner (d) MM 105
2. Outer (D) MM 125
3. Width (B) MM 26
4. Inner (d) Inch 4.1339
5. Outer (D) Inch 4.9213
6. Width (B) Inch 1.0236
7. Under roller diameter (F w) mm 105

Suffix description

1. XL X-Life

Technical details

1. Availability 31 pcs
2. Brand INA
3. Item number NK105/26-XL INA
4. Also known as 0507548580000
   NB10512526
   NK105/26
   NK105/26ASR1
   RNA10512526
   TAF10512526

5. EAN 4047643204521
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.54

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 155000
2. Radial Dynamic Load Rating Cr (N) 89000
3. Basic static load rating, radial (C 0r) "155000.0000"
4. Limiting speed (n G) 4400
5. Reference speed (n ϑr) 3050
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NK, light series
