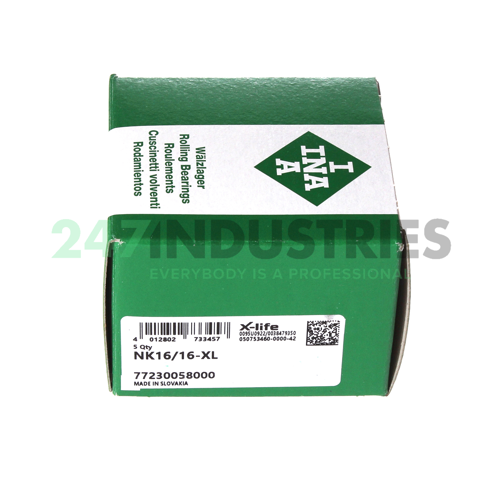

NK16/16-XL INA

All dimensions

1. Inner (d) MM 16
2. Outer (D) MM 24
3. Width (B) MM 16
4. Inner (d) Inch 0.6299
5. Outer (D) Inch 0.9449
6. Width (B) Inch 0.6299
7. Under roller diameter (F w) mm 16

Suffix description

1. XL X-Life

Technical details

1. Availability 385 pcs
2. Brand INA
3. Item number NK16/16-XL INA
4. Also known as 0507534600000
   NB162416
   NK16/16
   RNA162416
   TAF162416

5. EAN 4012802733457
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.023

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 13900
2. Radial Dynamic Load Rating Cr (N) 12800
3. Basic static load rating, radial (C 0r) "13900.0000"
4. Limiting speed (n G) 23200
5. Reference speed (n ϑr) 16200
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NK, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
