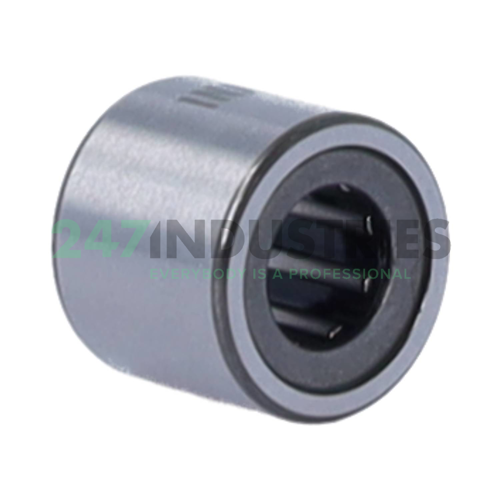

NK7/12-TV-XL INA

All dimensions

1. Inner (d) MM 7
2. Outer (D) MM 14
3. Width (B) MM 12
4. Inner (d) Inch 0.2756
5. Outer (D) Inch 0.5512
6. Width (B) Inch 0.4724
7. Under roller diameter (F w) mm 7

Suffix description

1. TV Polyamide Cage
2. XL X-Life

Technical details

1. Availability 89 pcs
2. Brand INA
3. Item number NK7/12-TV-XL INA
4. Also known as 0507532400000
   NK7/12TN
   NK7/12-TV

5. EAN 4012802733297
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.0083

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 3600
2. Radial Dynamic Load Rating Cr (N) 4150
3. Basic static load rating, radial (C 0r) "3600.0000"
4. Limiting speed (n G) 34500
5. Reference speed (n ϑr) 42000
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NK, light series
