NKS25-XL INA

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 38
3. Width (B) MM 20
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.4961
6. Width (B) Inch 0.7874
7. Under roller diameter (F w) mm 25

Suffix description

1. XL X-Life

Technical details

1. Availability 52 pcs
2. Brand INA
3. Item number NKS25-XL INA
4. Also known as 0507699790000
   NKS25

5. EAN 4054372289590

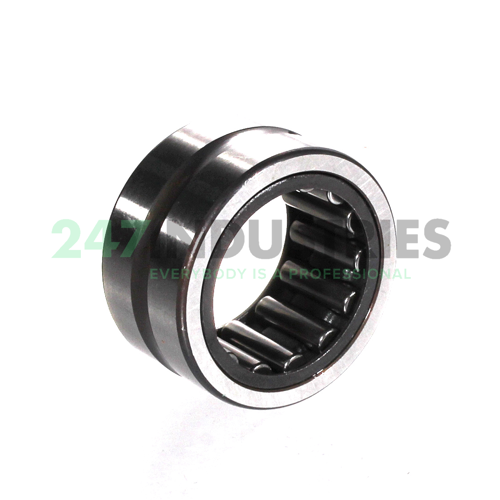

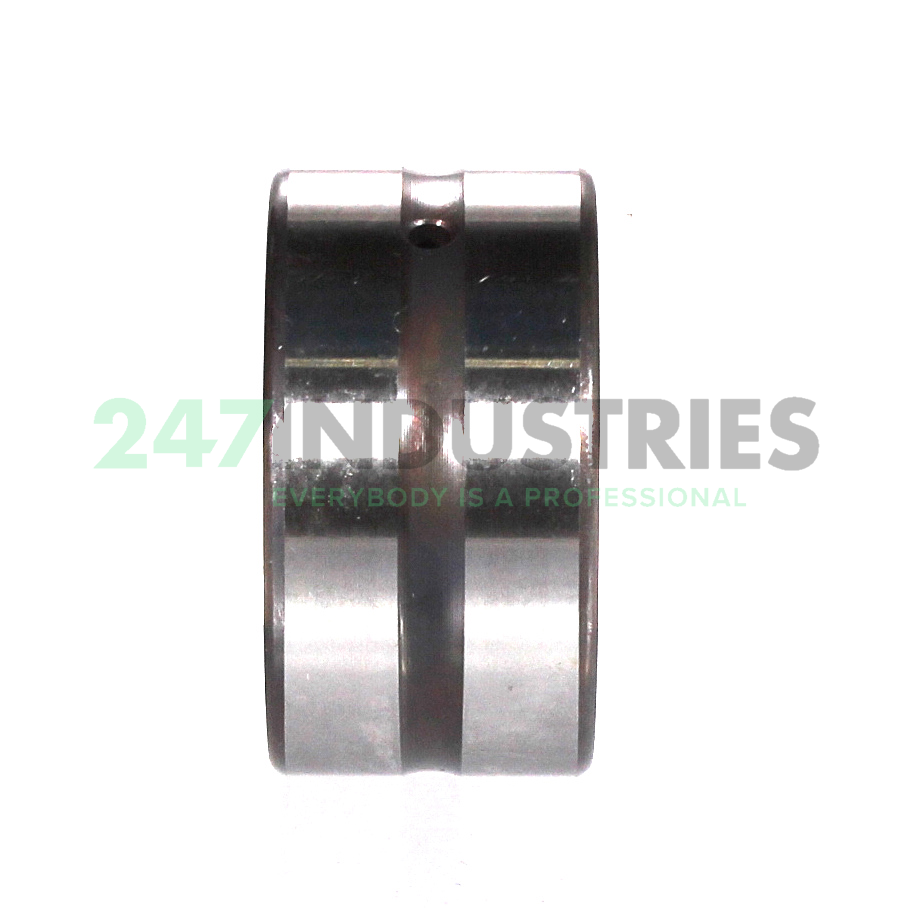

6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.068

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 33500
2. Radial Dynamic Load Rating Cr (N) 31000
3. Basic static load rating, radial (C 0r) "33500.0000"
4. Limiting speed (n G) 16600
5. Reference speed (n ϑr) 9700
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NKS, heavy series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
