NN3030-AS-M-SP FAG

Double-row precision cylindrical roller bearing

Stock
2 pcs in stock and ready for shipment
Brand FAG
Article number NN3030-AS-M-SP FAG
Inside diameter 150mm
Outside diameter 225mm
Width 56mm
Product description

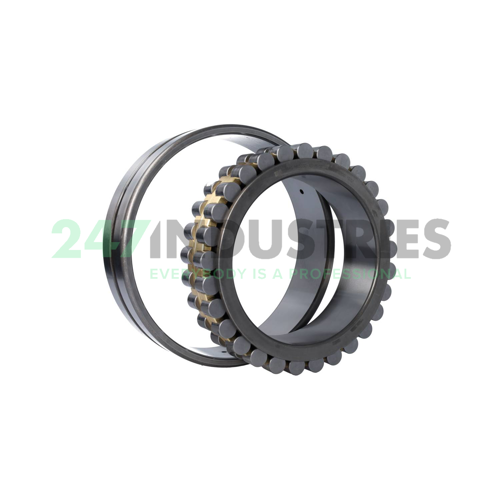

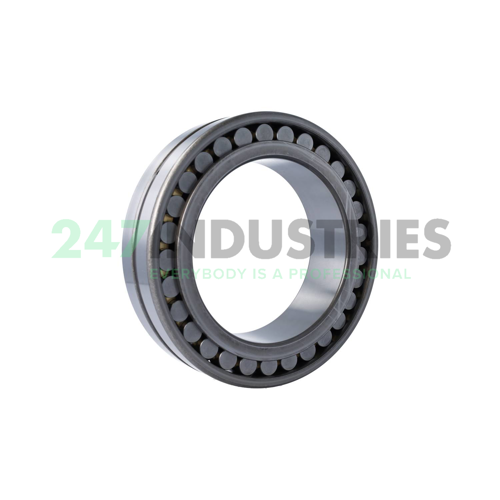

The NN3030-AS-M-SP FAG is a double-row precision cylindrical roller bearing. This bearing has a particularly high radial load capacity and high running accuracy. The design consists of a solid inner and outer ring with a double row of cylindrical rollers with a cage. The rolling elements are guided between flanges. This construction enables compact bearing arrangements with high radial stiffness and very high precision and load capacity. The outer ring is separable from the inner ring, facilitating (dis)assembly. Precision cylindrical roller bearings are often used, for example, in the main spindles of machine tools.

The NN3030-AS-M-SP FAG is equipped with a cage that prevents the cylindrical rollers from coming into contact with each other. This design allows for controlled movement of the rolling elements. There is less friction than in full-complement cylindrical roller bearings. As a result, higher rotational speeds are possible, and less heat is generated.

Read more Show less
Help with this product

Downloads and links

Similar to: NN3030-AS-M-SP FAG

Loading similair products

Product specifications

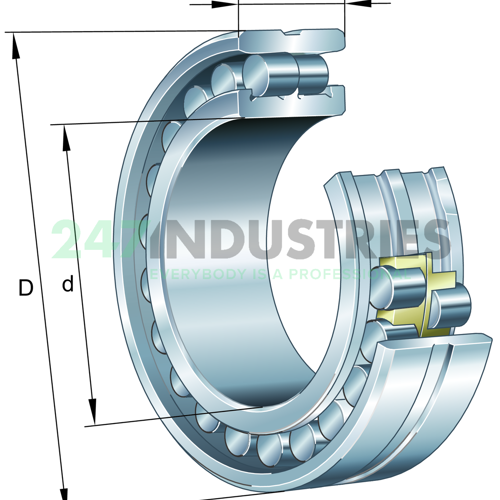

All dimensions

  1. Inner (d) MM 150
  2. Outer (D) MM 225
  3. Width (B) MM 56
  4. Inner (d) Inch 5.9055
  5. Outer (D) Inch 8.8583
  6. Width (B) Inch 2.2047
  7. Width (b) mm 56

Suffix description

  1. A Cylindrical Roller Bearings, Parts Interchangeable
  2. S Lubrication Groove And Three Holes In Bearing Outer Ring
  3. M Solid Brass Cage, Roller Guided
  4. SP Super Precision Specification, Tolerance Class SP, Radial Clearance C1

Technical details

  1. Availability 2 pcs
  2. Brand FAG
  3. Item number NN3030-AS-M-SP FAG
  4. Also known as 0384544910000
  5. EAN 4012801581691
  6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 7.88

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type M - Brass Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision SP - Precision Higher than P4S
  7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 590000
  2. Radial Dynamic Load Rating Cr (N) 335000
  3. Basic static load rating, radial (C 0r) "590000.0000"
  4. Fatigue load limit, radial (C ur) 73000
  5. Limiting speed for grease lubrication (n G Grease) 3650
  6. Limiting speed for oil lubrication (n G Oil) 4250
  7. ECLASS number 23-05-09-01
  8. ECLASS2 number 23-05-09-01
  9. Medias description Cylindrical roller bearing NN..-AS-M-SP, with cage, two-row, non-locating bearing, 0 ribs on outer ring (smooth), 3 ribs on inner ring, type NN
