NNF5013ADB-2LSV SKF

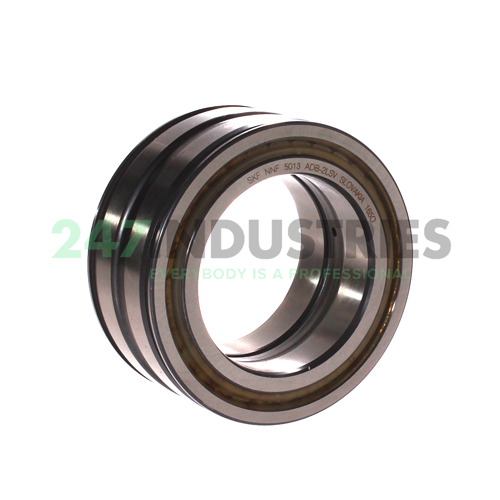

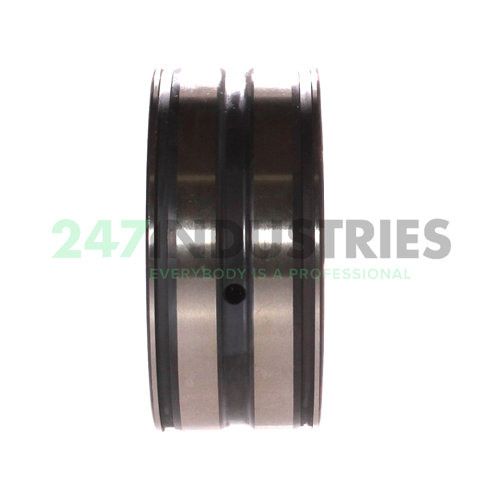

Double-row full-complement cylindrical roller bearing

Stock	6 pcs in stock and ready for shipment
Brand	SKF
Article number	NNF5013ADB-2LSV SKF
Inside diameter	65mm
Outside diameter	100mm
Width	46mm

Product description

The NNF5013ADB-2LSV SKF is a full-complement double-row cylindrical roller bearing. This bearing has a particularly high radial load capacity. The design consists of a solid inner and outer ring with a double row of cylindrical rollers. These rolling elements are guided between flanges. Since there is no cage, a maximum number of rollers can be used. This type of bearing is therefore suitable for very heavy loads where lower rotational speeds are involved.

Help with this product

Start a chat
Call us at: +31 (0)85 00 22 247
Email us at: help@247industries.com Response within 24h

Similar to: NNF5013ADB-2LSV SKF

Loading similair products

Product specifications

Inside diameter 65mm
Outside diameter 100mm
Width 46mm

All dimensions

Inner (d) MM 65
Outer (D) MM 100
Width (B) MM 46
Inner (d) Inch 2.5591
Outer (D) Inch 3.937
Width (B) Inch 1.811

Suffix description

ADB Modified Snap Ring Grooves In The Outer Ring; Two-Piece Inner Ring Held Together By A Retaining Ring
2LS Contact Seal Of Polyurethane (AU) On Both Sides Of The Bearing,
V Full Complement Of Rollers (Without Cage)
