NNU4930-S-M-SP-C3 FAG

Double-row precision cylindrical roller bearing

Stock
4 pcs available
Brand FAG
Article number NNU4930-S-M-SP-C3 FAG
Inside diameter 150mm
Outside diameter 210mm
Width 60mm
Product description

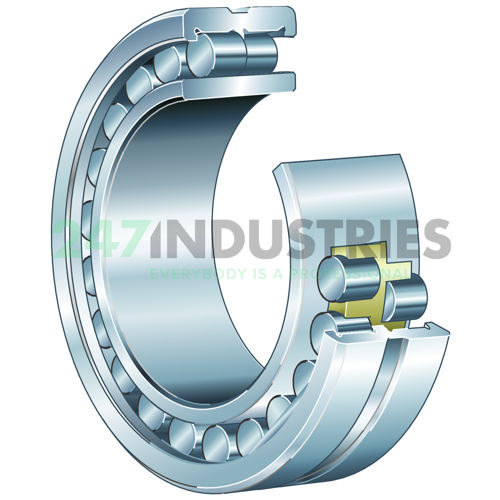

The NNU4930-S-M-SP-C3 FAG is a double-row precision cylindrical roller bearing. This bearing has a particularly high radial load capacity and high running accuracy. The design consists of a solid inner and outer ring with a double row of cylindrical rollers with a cage. The rolling elements are guided between flanges. This construction enables compact bearing arrangements with high radial stiffness and very high precision and load capacity. The outer ring is separable from the inner ring, facilitating (dis)assembly. Precision cylindrical roller bearings are often used, for example, in the main spindles of machine tools.

The NNU4930-S-M-SP-C3 FAG is equipped with a cage that prevents the cylindrical rollers from coming into contact with each other. This design allows for controlled movement of the rolling elements. There is less friction than in full-complement cylindrical roller bearings. As a result, higher rotational speeds are possible, and less heat is generated.

Read more Show less
Help with this product

Downloads and links

Similar to: NNU4930-S-M-SP-C3 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 150
  2. Outer (D) MM 210
  3. Width (B) MM 60
  4. Inner (d) Inch 5.9055
  5. Outer (D) Inch 8.2677
  6. Width (B) Inch 2.3622
  7. Width (b) mm 60

Suffix description

  1. S Lubrication Groove And Three Holes In Bearing Outer Ring
  2. M Solid Brass Cage, Roller Guided
  3. SP Special Precision Class For Machine Tool Bearings: Dimensional Accuracy Approximately To P5, Running Accuracy Approximately To P4
  4. C3 Internal Clearance Larger Than Normal

Technical details

  1. Availability 4 pcs
  2. Brand FAG
  3. Item number NNU4930-S-M-SP-C3 FAG
  4. Also known as 0192330600030
  5. EAN 4026677569264
  6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 6.12

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type M - Brass Cage
  4. External Modification W33
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision SP - Precision Higher than P4S
  7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

  1. Basic static load rating, radial (C 0r) 650000
  2. Fatigue load limit, radial (C ur) 82000
  3. Limiting speed for grease lubrication (n G Grease) 3550
  4. Limiting speed for oil lubrication (n G Oil) 4200
  5. ECLASS number 23-05-09-01
  6. ECLASS2 number 23-05-09-01
