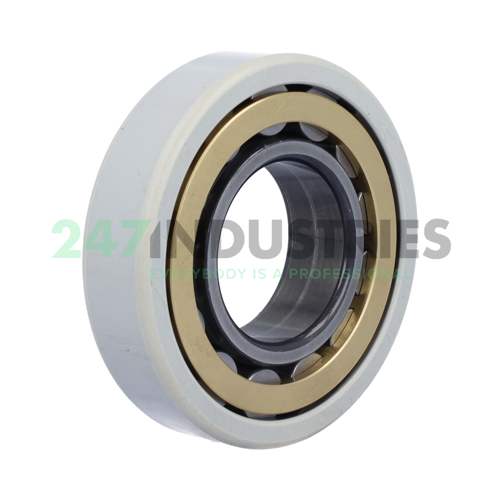

NU311-E-XL-M1-J20AA-C3 FAG

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 120
3. Width (B) MM 29
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 4.7244
6. Width (B) Inch 1.1417
7. Width (b) mm 29

Suffix description

1. E Increased Load Capacity
2. XL X-Life
3. M1 Solid Brass Cage, Two Piece, Roller Guided
4. J20AA Coating Which Consists Of Oxide Ceramic, It Is Applied By Plasma Spraying And Then Sealed With Synthetic Resin. Speciality Humid Environments
5. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 1 pc
2. Brand FAG
3. Item number NU311-E-XL-M1-J20AA-C3 FAG
4. Also known as 0812938950030
   NU311ECM/C3VL2041
   NU311-E-M1-J20AA-C3

5. EAN 4047643256131
6. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.75

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Breakdown Voltage 1000v
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 139000
2. Limiting speed (n G) 10400
3. Reference speed (n ϑr) 5500
