NUKR52-X-A-NMT INA

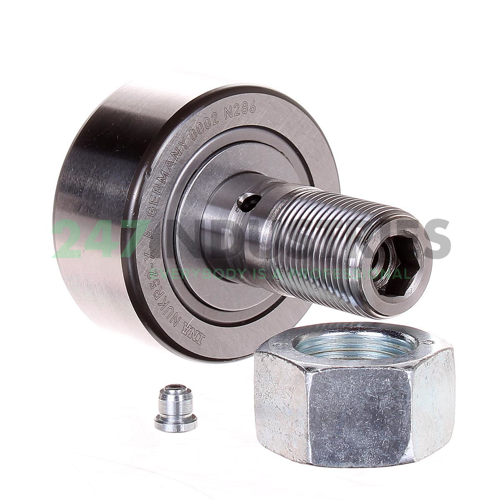

Full complement cam follower with cylindrical rollers

Stock
17 pcs in stock and ready for shipment
Brand INA
Article number NUKR52-X-A-NMT INA
Inside diameter 20mm
Outside diameter 52mm
Width 66mm
Product description

The NUKR52-X-A-NMT INA is a cam follower with cylindrical rollers. These rolling elements combine a high load capacity with reasonable shock resistance. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.

The NUKR52-X-A-NMT INA has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this cam follower radially highly loadable. Full complement cam followers are also more shock-resistant than cam followers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of cam followers include conveyor systems, linear guidance systems, and cam followers.

Read more Show less
Help with this product

Downloads and links

Similar to: NUKR52-X-A-NMT INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 52
  3. Width (B) MM 66
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 2.0472
  6. Width (B) Inch 2.5984
  7. Fit diameter of roller stud / stud (d 1) mm 20
  8. Width (b) mm 66

Suffix description

  1. X Cylindrical Running Surface
  2. A Design Modification
  3. NMT Hexagon Nut

Technical details

  1. Availability 17 pcs
  2. Brand INA
  3. Item number NUKR52-X-A-NMT INA
  4. Also known as 0069309560078
  5. EAN 4054366259806
  6. Category Cam Follower

Weight and Dimensions

  1. Weight (kg) 0.54

Product Properties

  1. Seal T - T-seal
  2. Excenterring Other Mounting Method
  3. Running Surface Standard

Data from Schaeffler (medias)

  1. Basic dynamic load rating, radial (C r w) 29000
  2. Basic static load rating, radial (C 0r) 41500
  3. Speed on permanent grease lubrication (n D G) 4200
  4. ECLASS number 23-05-15-02
  5. ECLASS2 number 23-05-15-02
  6. Medias description Stud type track rollers NUKR, with axial guidance, full complement cylindrical roller set, labyrinth seals on both sides
