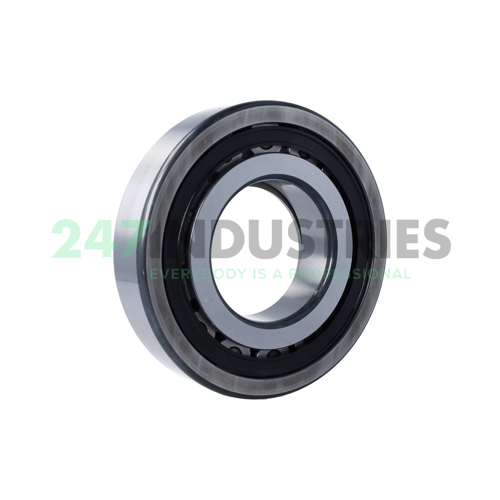

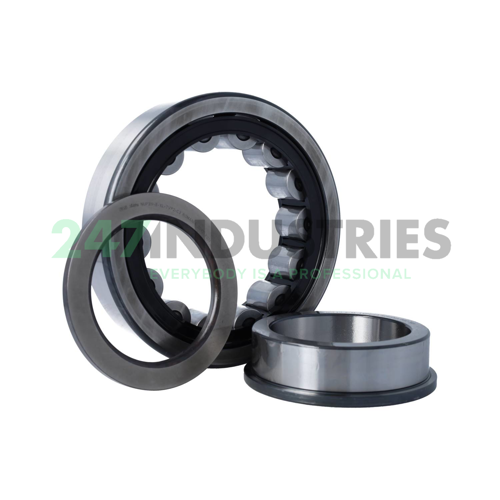

NUP319-E-XL-TVP2-C3 FAG

All dimensions

1. Inner (d) MM 95
2. Outer (D) MM 200
3. Width (B) MM 45
4. Inner (d) Inch 3.7402
5. Outer (D) Inch 7.874
6. Width (B) Inch 1.7717
7. Width (b) mm 45

Suffix description

1. E Increased Load Capacity
2. XL X-Life
3. TVP2 Solid Window Cage Made From Glass Fibre Reinforced Polyamide PA66. Roller Riding
4. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number NUP319-E-XL-TVP2-C3 FAG
4. Also known as 0167416170030
   NUP319-E-TVP2-C3

5. EAN 4054372524516
6. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 6.28

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 380000
2. Limiting speed (n G) 4700
3. Reference speed (n ϑr) 3550
