NUTR30-X-A INA

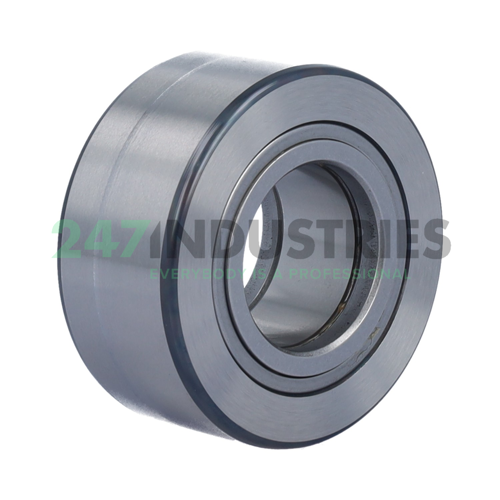

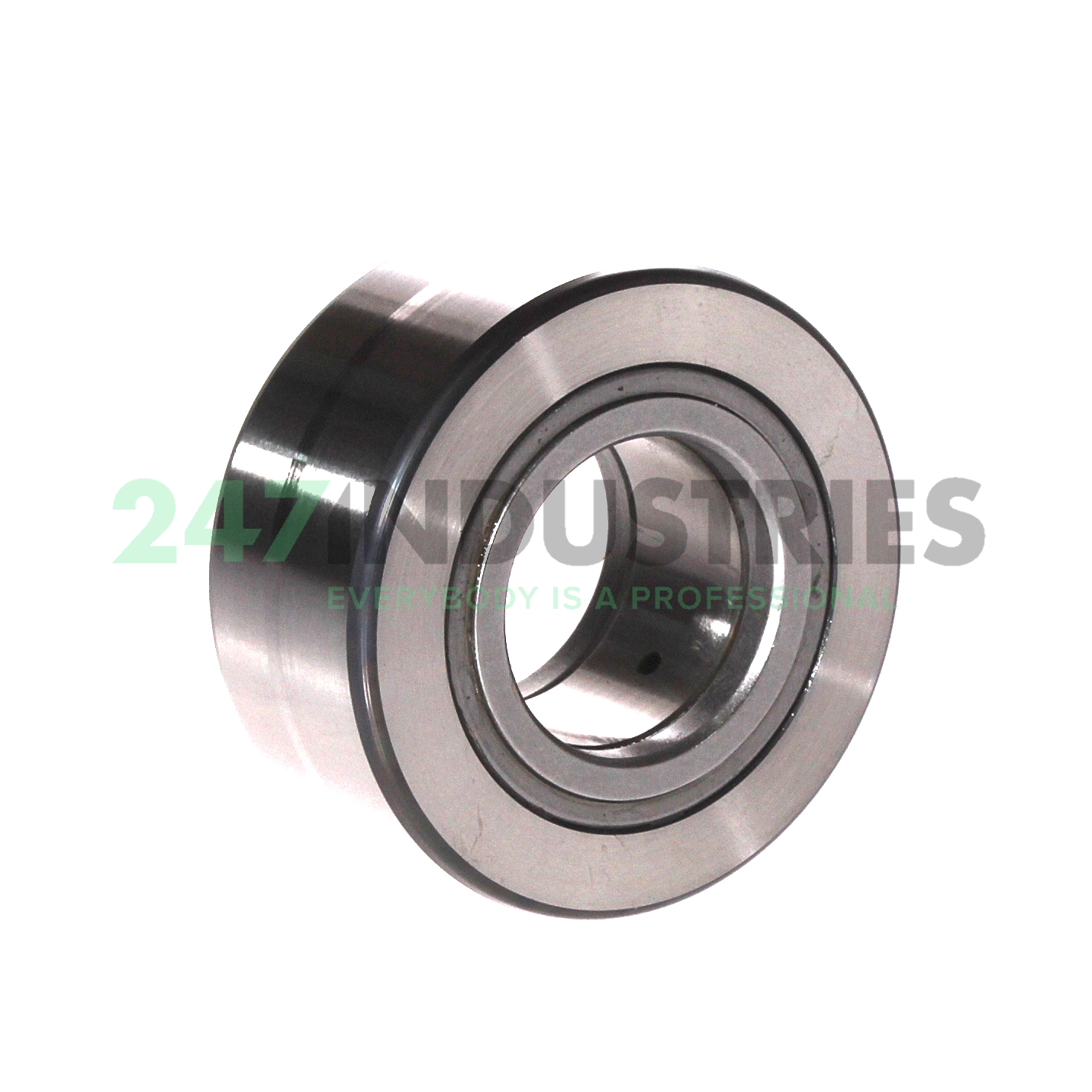

Yoke type full complement track roller with cylindrical rollers

Stock
47 pcs in stock and ready for shipment
Brand INA
Article number NUTR30-X-A INA
Inside diameter 30mm
Outside diameter 62mm
Width 28mm
Product description

The NUTR30-X-A INA is a track roller or support roller with cylindrical rollers. These rolling elements combine a high load capacity with reasonable shock resistance. Track rollers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Axial loads due to alignment errors or misalignment can be absorbed in both directions. Yoke type track rollers are suitable for mounting on a shaft. They are not mounted in a housing bore, but a flat (counter) track provides support.

The NUTR30-X-A INA has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this track roller radially highly loadable. Full complement track rollers are also more shock-resistant than track rollers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of track rollers include conveyor systems, linear guidance systems, and cam mechanisms.

Read more Show less
Help with this product

Downloads and links

Similar to: NUTR30-X-A INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30
  2. Outer (D) MM 62
  3. Width (B) MM 28
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 2.4409
  6. Width (B) Inch 1.1024
  7. Width of the bearing (B) mm 29

Suffix description

  1. X Cylindrical Running Surface
  2. A Alteration In Internal Construction. Identical To Old Notation

Technical details

  1. Availability 47 pcs
  2. Brand INA
  3. Item number NUTR30-X-A INA
  4. Also known as 0069426100000
  5. EAN 4012802419016
  6. Category Support Roller

Weight and Dimensions

  1. Weight (kg) 0.48

Product Properties

  1. Seal 2LB - Two Labyrinth Seals
  2. Running Surface Cylindrical

Data from Schaeffler (medias)

  1. Basic dynamic load rating, radial (C r w) 41000
  2. Basic static load rating, radial (C 0r) 54000
  3. Speed on permanent grease lubrication (n D G) 2600
  4. ECLASS number 23-05-15-01
  5. ECLASS2 number 23-05-15-01
  6. Medias description Yoke type track rollers NUTR, full complement cylindrical roller set, with axial guidance, labyrinth seals on both sides
