PASE20-XL-N-FA125 INA

Housing unit

Stock
33 pcs in stock and ready for shipment
Brand INA
Article number PASE20-XL-N-FA125 INA
Inside diameter 20mm
Outside diameter 130mm
Width 64mm
Product description

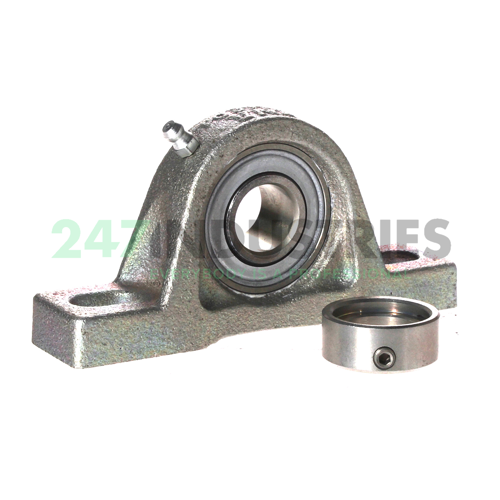

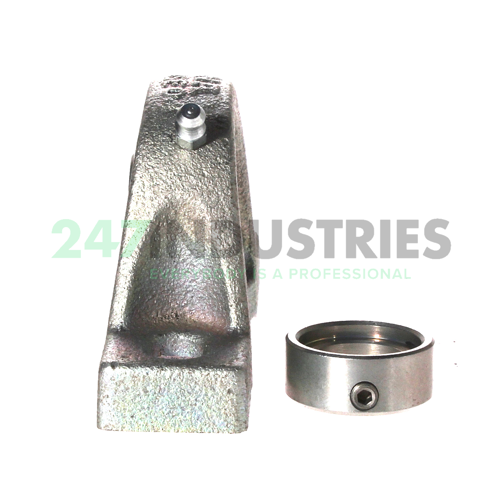

The PASE20-XL-N-FA125 INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: PASE20-XL-N-FA125 INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 130
  3. Width (B) MM 64
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 5.1181
  6. Width (B) Inch 2.5197
  7. Length total (L) mm 130
  8. Height (H 2) mm 64

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps
  3. FA125 With Corrotect® Coating, Protected Against Corrosion

Technical details

  1. Availability 33 pcs
  2. Brand INA
  3. Item number PASE20-XL-N-FA125 INA
  4. Also known as 0076427840000
    PASE20-N-FA125
  5. EAN 4012802811971
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.55

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment With Corrotect® Coating

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-01
  2. ECLASS2 number 23-05-16-01
  3. Medias description Plummer block housing units PASE..-FA125, cast iron housing, radial insert ball bearing with eccentric locking collar, P seals, with anti-corrosion protection
