PB20-XL INA

€ 27,72 ex VAT
€ 33,54 incl. VAT
€ 33,54 incl. VAT
€ 27,72 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

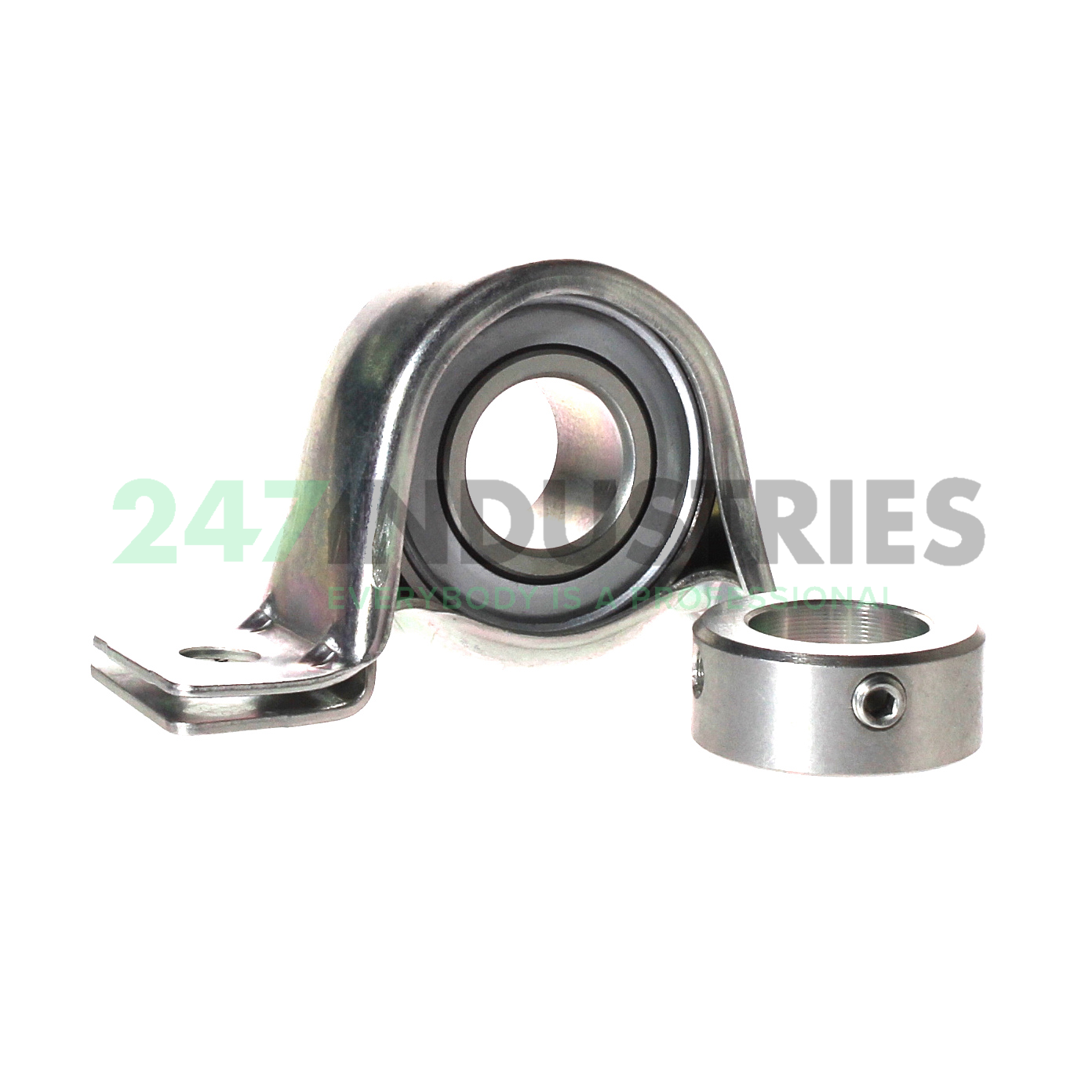

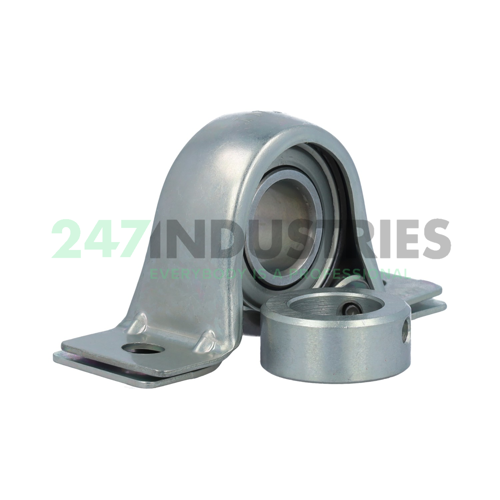

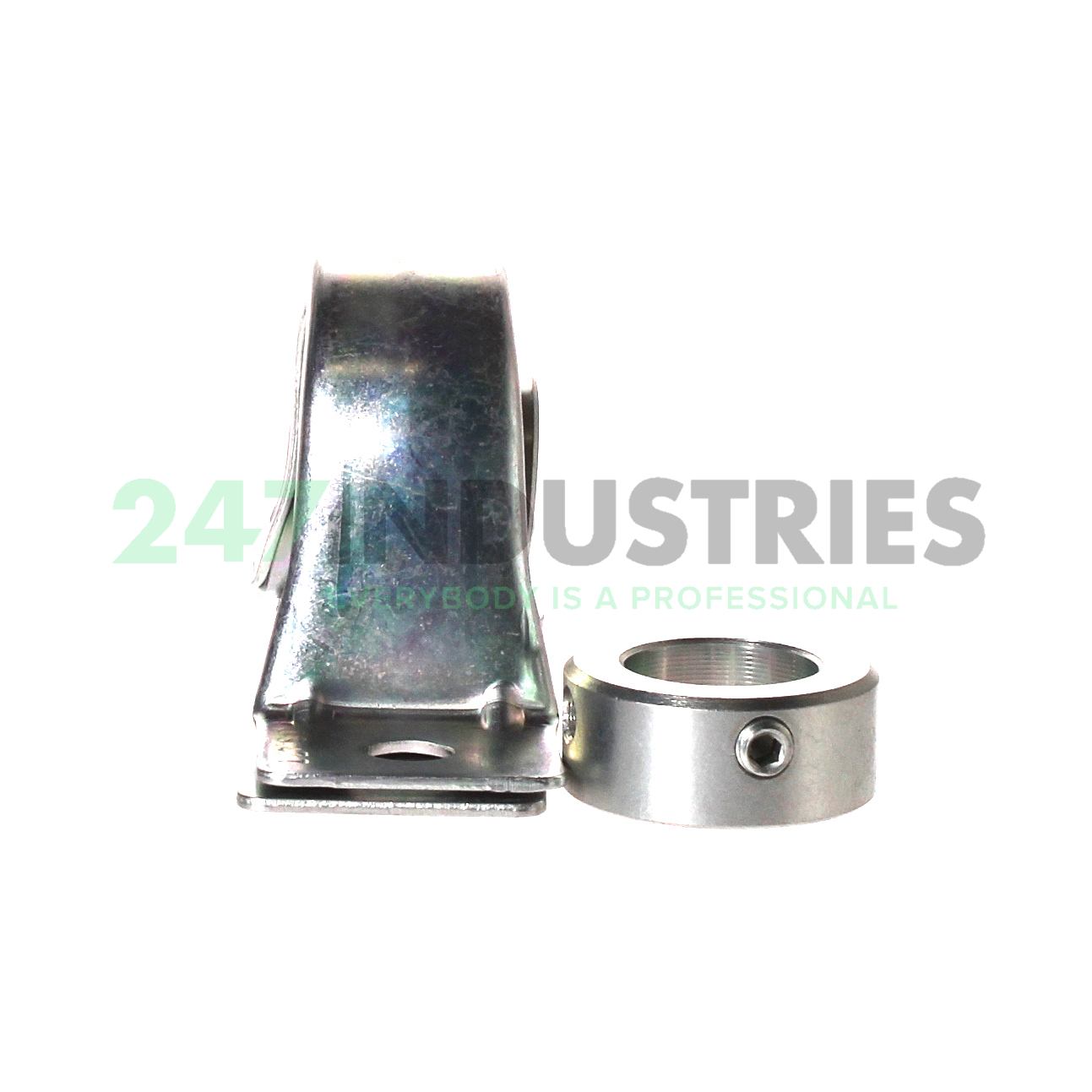

PB20-XL INA

Housing unit

Stock
42 pcs in stock and ready for shipment
Brand INA
Article number PB20-XL INA
Inside diameter 20mm
Outside diameter 99mm
Width 32mm
Product description

The PB20-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: PB20-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 99
  3. Width (B) MM 32
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 3.8976
  6. Width (B) Inch 1.2598
  7. Length total (L) mm 98,4
  8. Height (H 2) mm 50,1

Suffix description

  1. XL X-Life

Technical details

  1. Availability 42 pcs
  2. Brand INA
  3. Item number PB20-XL INA
  4. Also known as 0008291960000
    PB20
  5. EAN 4012802792904
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.24

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 6600
  2. Radial Dynamic Load Rating Cr (N) 13600
  3. Basic static load rating, radial (C 0r) "6600.0000"
  4. Load carrying capacity (housing) (C 0r G) 1600
  5. ECLASS number 23-05-16-01
  6. ECLASS2 number 23-05-16-01
  7. Medias description Plummer block housing units PB, sheet steel housing, radial insert ball bearing with eccentric locking collar, P seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
