PCF40-XL INA

€ 52,64 ex VAT
€ 63,69 incl. VAT
€ 63,69 incl. VAT
€ 52,64 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

PCF40-XL INA

Housing unit

Stock
23 pcs in stock and ready for shipment
Brand INA
Article number PCF40-XL INA
Inside diameter 40mm
Outside diameter 130mm
Width 51mm
Product description

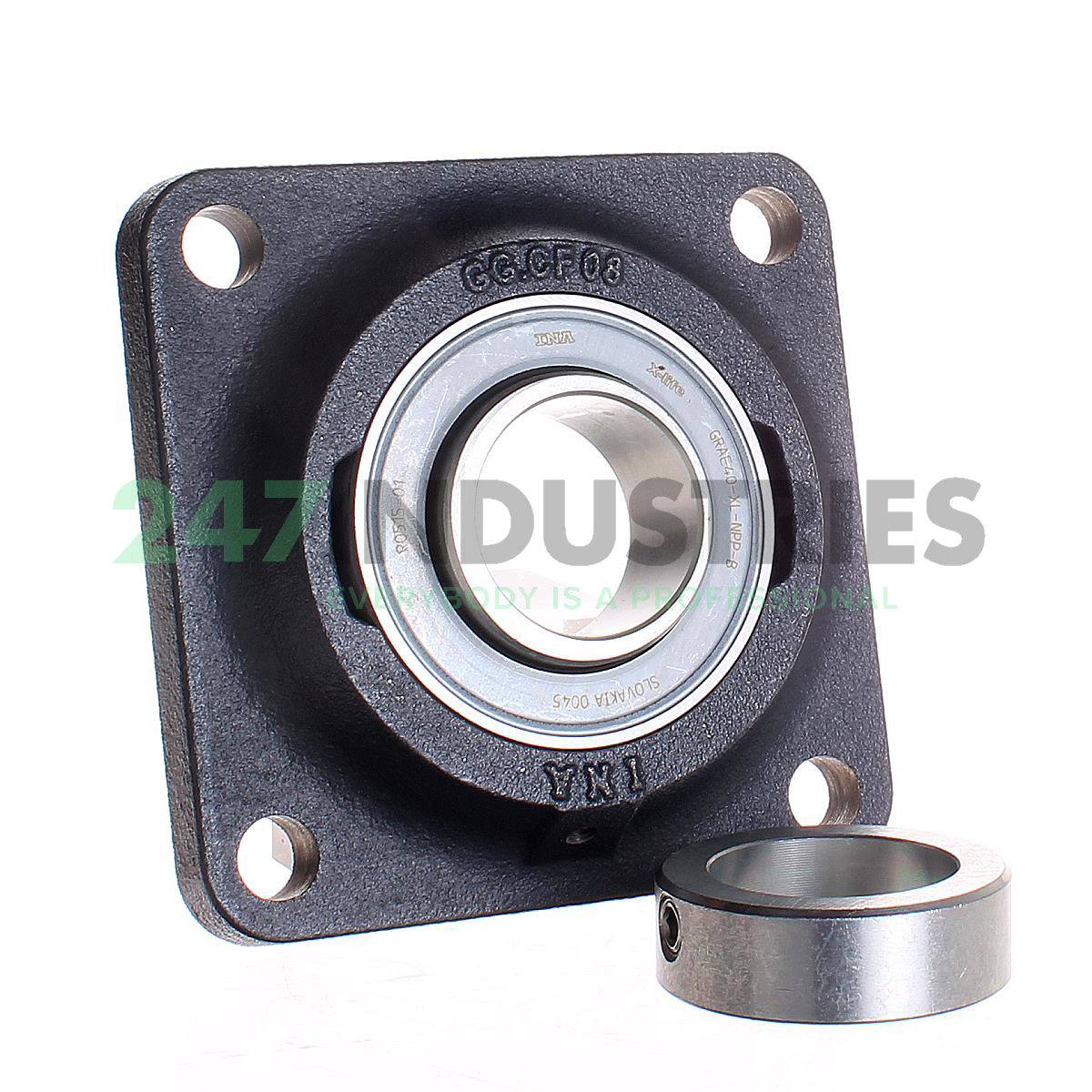

The PCF40-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: PCF40-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 130
  3. Width (B) MM 51
  4. Inner (d) Inch 1.5748
  5. Outer (D) Inch 5.1181
  6. Width (B) Inch 2.0079
  7. Flange width (L) mm 130
  8. Total height unit (U) mm 51

Suffix description

  1. XL X-Life

Technical details

  1. Availability 23 pcs
  2. Brand INA
  3. Item number PCF40-XL INA
  4. Also known as 0008319210000
    16208 + F208
    16208 + FG208S
    F16208
    FG16208
    FY40FM
    GRAE40NPPB + CF08
    GRAE40NPPB + CJ08FA319
    PCF40
    YET208 + FY508M
  5. EAN 4012802790818
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.72

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 19800
  2. Radial Dynamic Load Rating Cr (N) 34500
  3. Basic static load rating, radial (C 0r) "19800.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Housing units PCF, four-bolt flanged housing units, cast iron, eccentric locking collar, P seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
