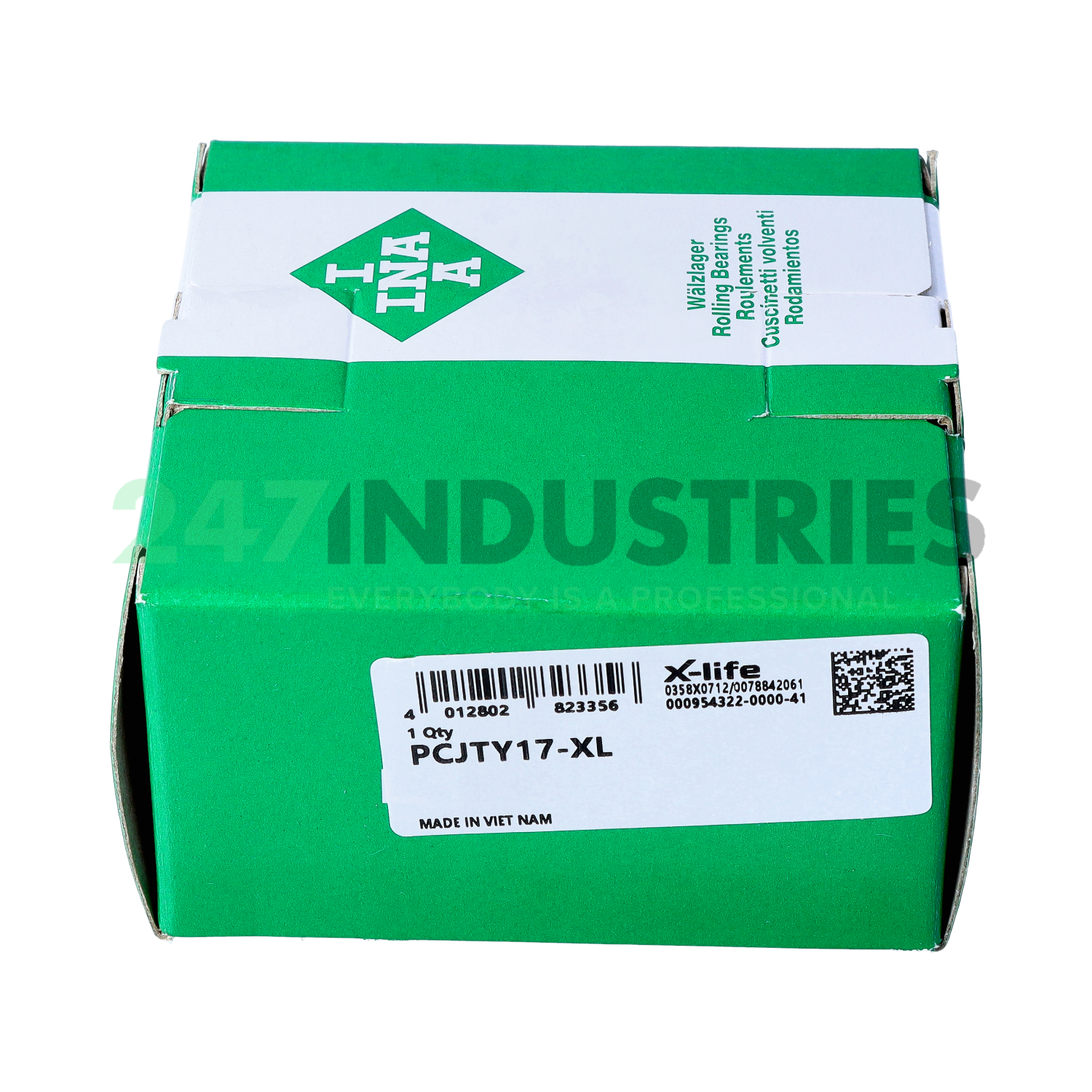

PCJT17-XL INA

Housing unit

Stock
70 pcs in stock and ready for shipment
Brand INA
Article number PCJT17-XL INA
Inside diameter 17mm
Outside diameter 57mm
Width 39,1mm
Product description

The PCJT17-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: PCJT17-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 17
  2. Outer (D) MM 57
  3. Width (B) MM 39,1
  4. Inner (d) Inch 0.6693
  5. Outer (D) Inch 2.2441
  6. Width (B) Inch 1.5394
  7. Flange width (L) mm 57
  8. Height flange (H) mm 99
  9. Total height unit (U) mm 39,1

Suffix description

  1. XL X-Life

Technical details

  1. Availability 70 pcs
  2. Brand INA
  3. Item number PCJT17-XL INA
  4. Also known as 0008582500000
    16203 + FL203
    FL16203
    FYTB17FM
    GRAE17NPPB + CFT03
    GRAE17NPPB + CJT03
    PCJT17
    YET203 + FYTB503M
  5. EAN 4012802798036
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.352

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 4750
  2. Radial Dynamic Load Rating Cr (N) 10100
  3. Basic static load rating, radial (C 0r) "4750.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Housing units PCJT, two-bolt flanged housing units, cast iron, eccentric locking collar, P seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
