PHS12A IKO

Rod end

Stock
8 pcs available for shipment on Thu 14 Nov
Brand IKO
Article number PHS12A IKO
Inside diameter 12mm
Outside diameter 34mm
Width 16mm
Product description

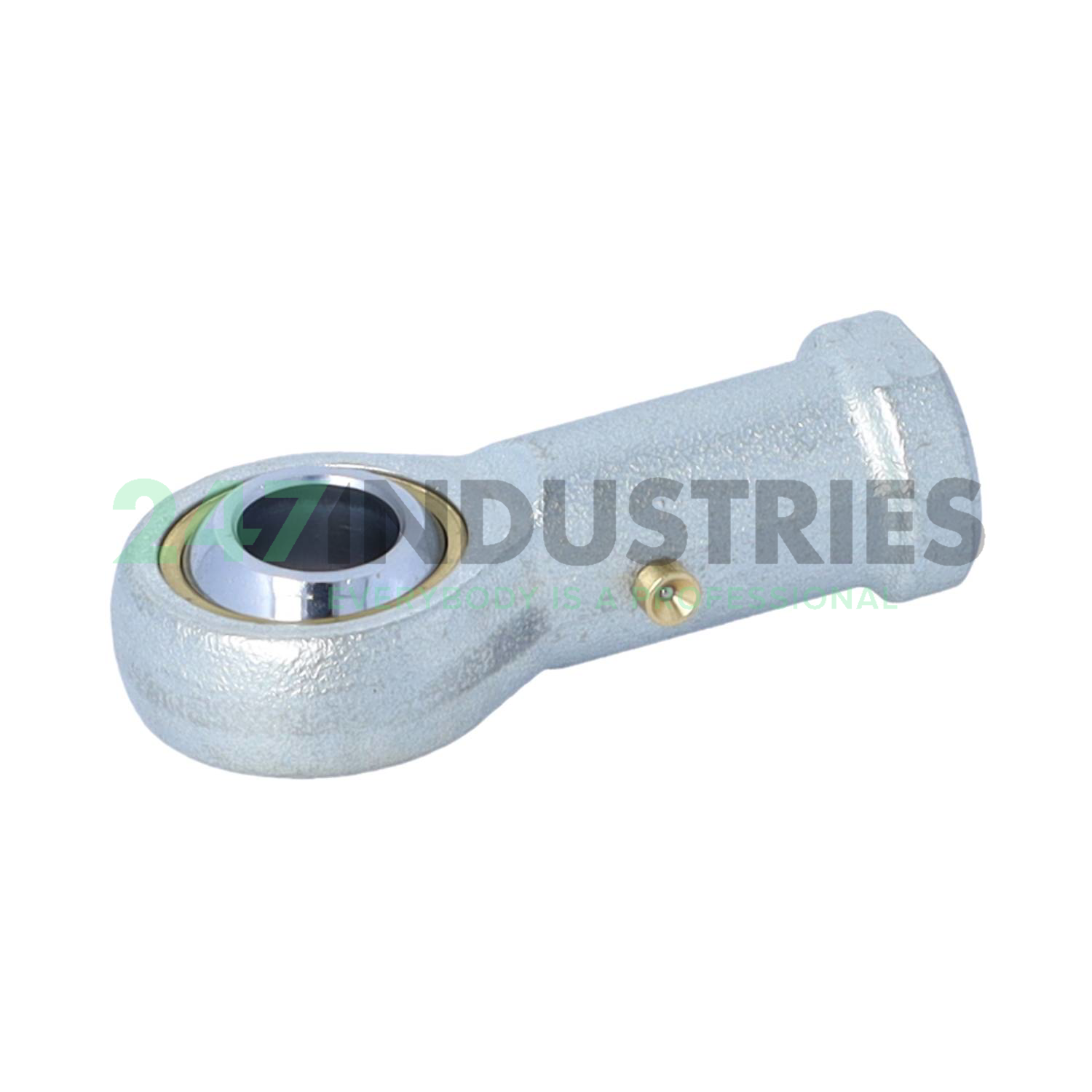

The PHS12A IKO is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The PHS12A IKO has a spherical plain bearing with a steel-on-bronze sliding contact. The steel inner ring contacts the bronze surface of the outer ring. The steel-on-bronze sliding contact makes this bearing highly wear-resistant, providing low friction. However, the load capacity is slightly lower compared to spherical plain bearings with steel-on-steel sliding contacts. This bearing needs regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Similar to: PHS12A IKO

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12
  2. Outer (D) MM 34
  3. Width (B) MM 16
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 1.3386
  6. Width (B) Inch 0.6299

Technical details

  1. Availability 8 pcs on Thu 14 Nov
  2. Brand IKO
  3. Item number PHS12A IKO
  4. Also known as GIKFR12PB
    SIKAC12M
  5. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.1177

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Bronze
