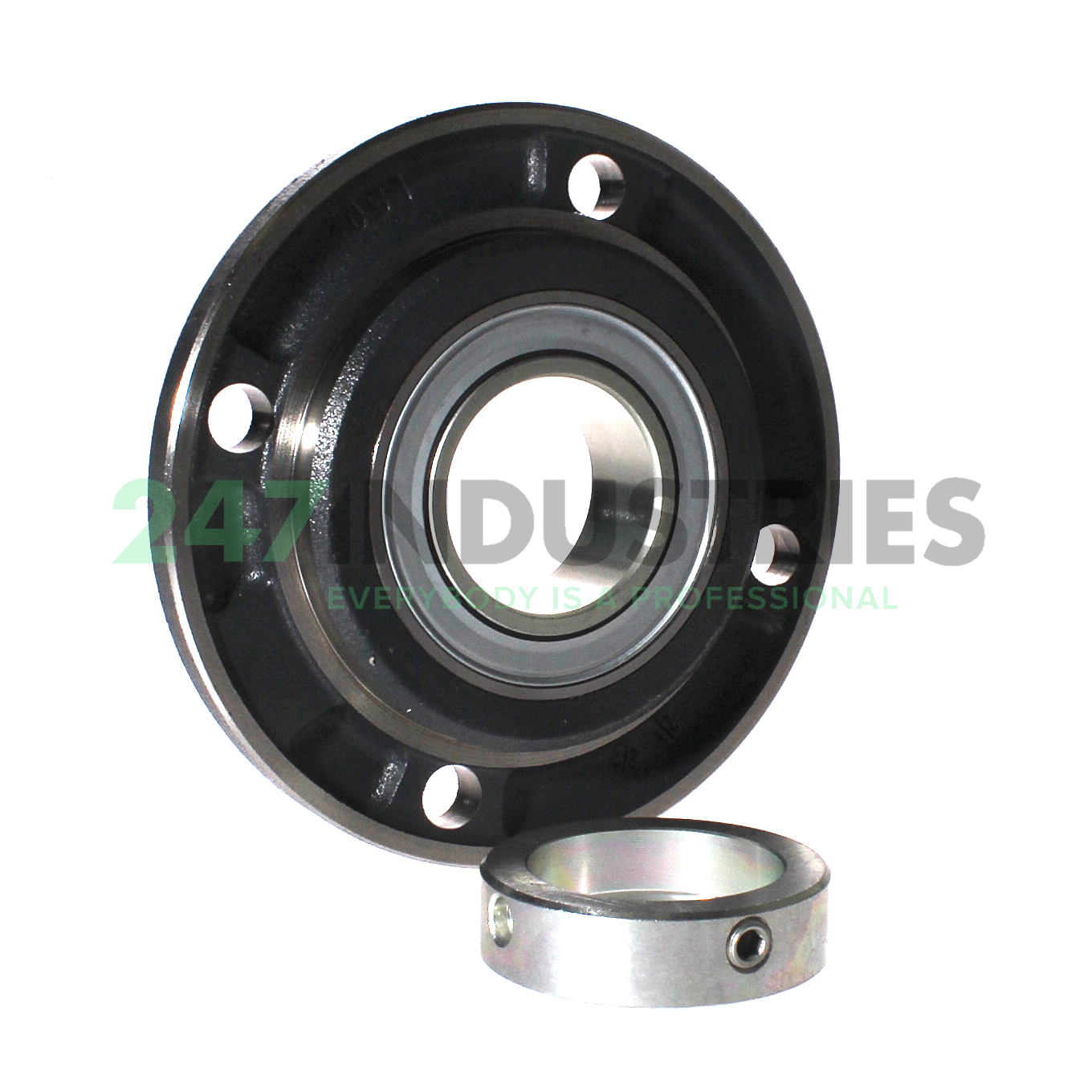

PME50-XL-N INA

Housing unit

Stock
8 pcs in stock and ready for shipment
Brand INA
Article number PME50-XL-N INA
Inside diameter 50mm
Outside diameter 165mm
Width 43,8mm
Product description

The PME50-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: PME50-XL-N INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 50
  2. Outer (D) MM 165
  3. Width (B) MM 43,8
  4. Inner (d) Inch 1.9685
  5. Outer (D) Inch 6.4961
  6. Width (B) Inch 1.7244
  7. Height flange (H) mm 165
  8. Locking collar total width (B 1) mm 43,8
  9. Total height unit (U) mm 31,8

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps

Technical details

  1. Availability 8 pcs
  2. Brand INA
  3. Item number PME50-XL-N INA
  4. Also known as 0096438000000
    GRAE50NPPB + ME10
    PME50-N
  5. EAN 4012802837032
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 2.3

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 23200
  2. Radial Dynamic Load Rating Cr (N) 37500
  3. Basic static load rating, radial (C 0r) "23200.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Housing units PME, four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, P seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
