PSHEY40-XL-N INA

€ 63,98 ex VAT
€ 77,42 incl. VAT
€ 77,42 incl. VAT
€ 63,98 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

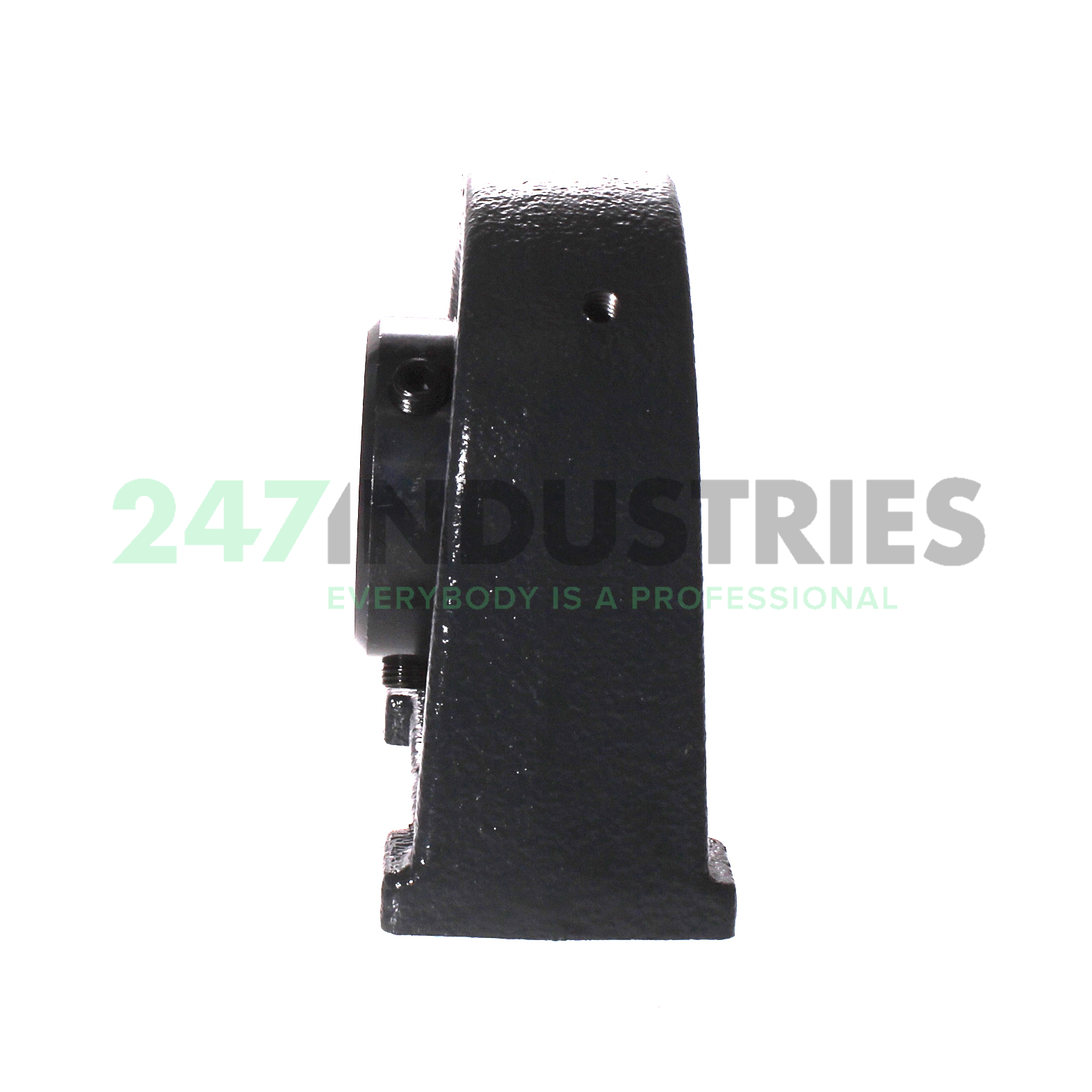

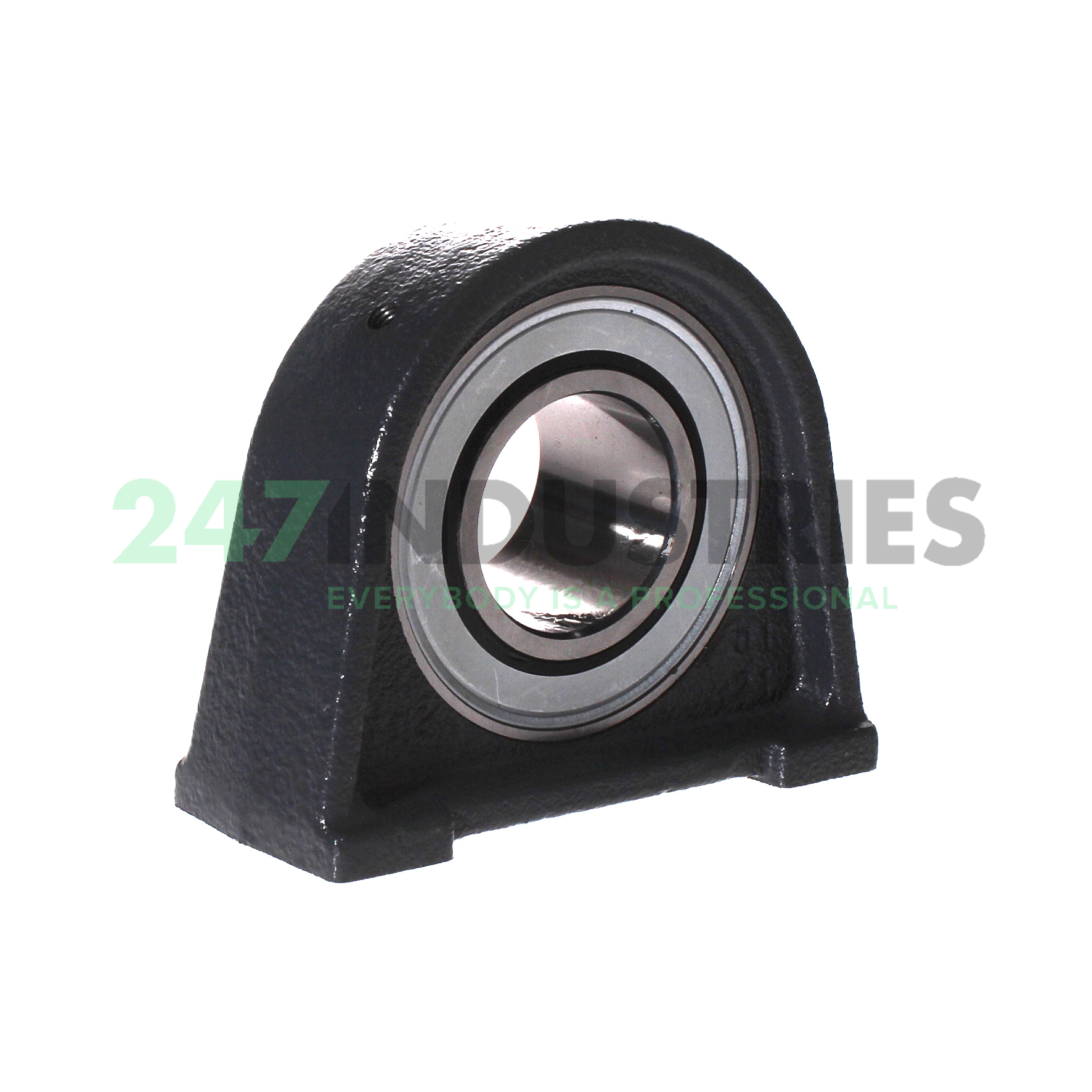

PSHEY40-XL-N INA

Housing unit

Stock
32 pcs in stock and ready for shipment
Brand INA
Article number PSHEY40-XL-N INA
Inside diameter 40mm
Outside diameter 116mm
Width 48mm
Product description

The PSHEY40-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: PSHEY40-XL-N INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 116
  3. Width (B) MM 48
  4. Inner (d) Inch 1.5748
  5. Outer (D) Inch 4.5669
  6. Width (B) Inch 1.8898
  7. Length total (L) mm 116
  8. Height (H 2) mm 99

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps

Technical details

  1. Availability 32 pcs
  2. Brand INA
  3. Item number PSHEY40-XL-N INA
  4. Also known as 0947164470000
    NIP DIN71412-A R 1/8
    NIP DIN71412-B R 1/8
    NIP DIN71412-C R 1/8
    PSHEY40-N
  5. EAN 4054372555039
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.73

Product Properties

  1. Seal P - P-Seals
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-01
  2. ECLASS2 number 23-05-16-01

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
