PTUE55-XL INA

Name: PTUE55-XL INA
Brand: INA

€ 96,45 ex VAT

€ 116,71 incl. VAT

€ 96,45 ex VAT

	Guaranteed same day shipment on orders placed before 17.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

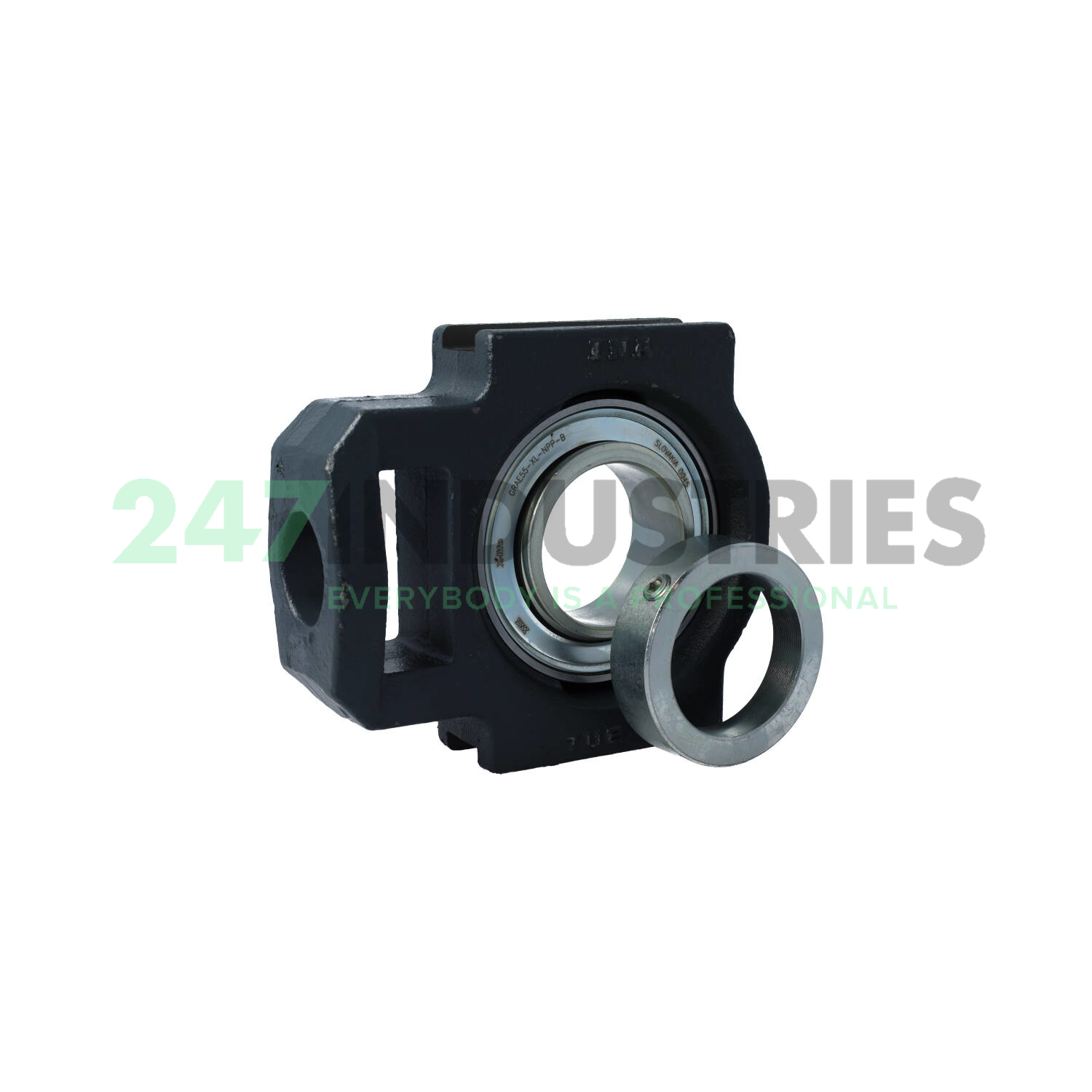

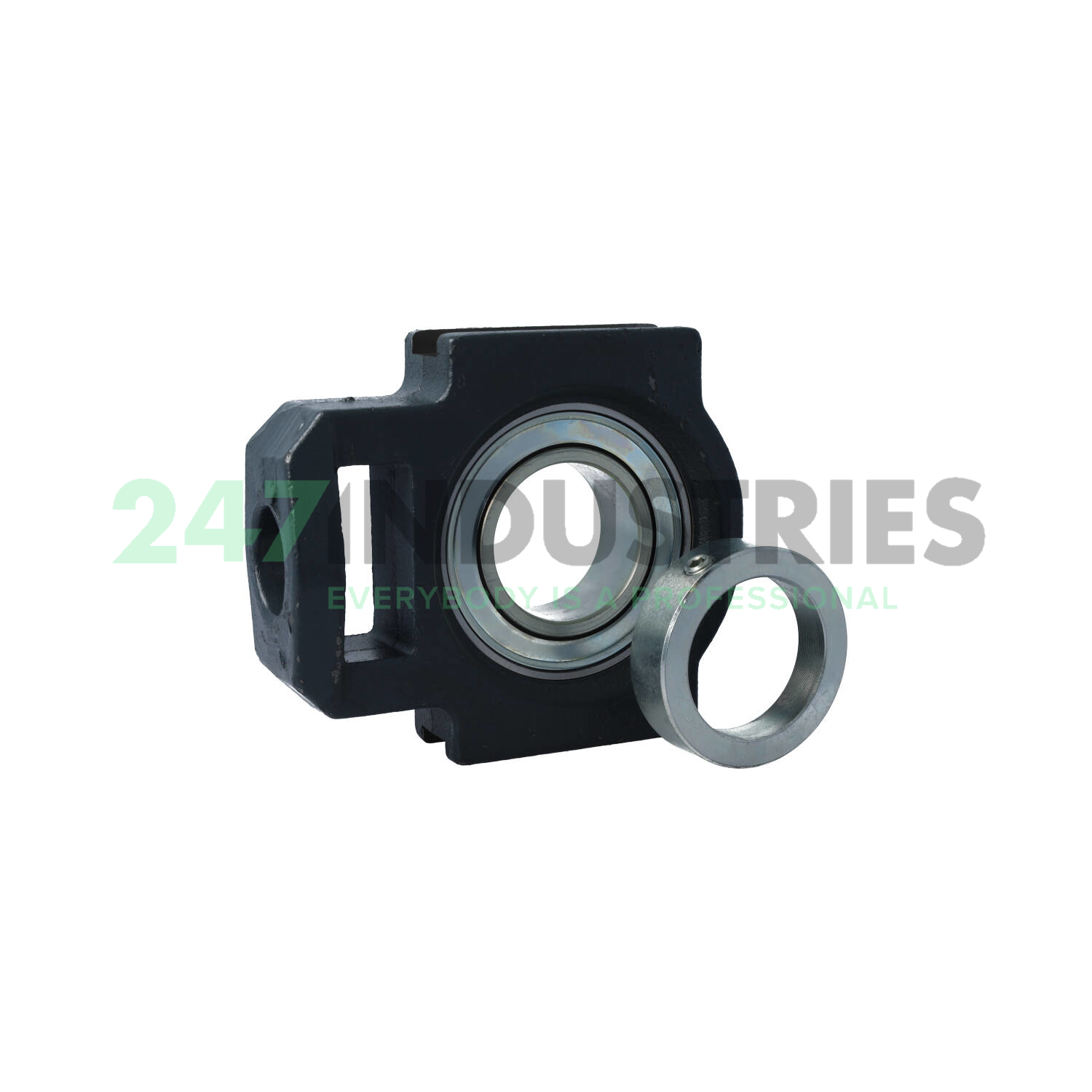

PTUE55-XL INA

Housing unit

Stock	31 pcs in stock and ready for shipment
Brand	INA
Article number	PTUE55-XL INA
Inside diameter	55mm
Outside diameter	146mm
Width	64mm

Product description

The PTUE55-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Start a chat
Call us at: +31 (0)85 00 22 247
Email us at: help@247industries.com Response within 24h

Downloads and links

Similar to: PTUE55-XL INA

Loading similair products

Product specifications

Inside diameter 55mm
Outside diameter 146mm
Width 64mm

All dimensions

Inner (d) MM 55
Outer (D) MM 146
Width (B) MM 64
Inner (d) Inch 2.1654
Outer (D) Inch 5.748
Width (B) Inch 2.5197
Height (H) mm 145
Length total (L) mm 169

Suffix description

XL X-Life

Technical details

Availability 31 pcs
Brand INA
Item number PTUE55-XL INA
Also known as 0009829110000
PTUE55
EAN 4012802817645
Category Housing and Bearing (assembly)

Weight and Dimensions

Weight (kg) 4.07

Product Properties

Seal 2F - Standard Seal for Y-bearings
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

ECLASS number 23-05-16-03
ECLASS2 number 23-05-16-03
Medias description Take-up housing units PTUE, cast iron housing, radial insert ball bearing with eccentric locking collar, P seals
