PWKR72-2RS-XL INA

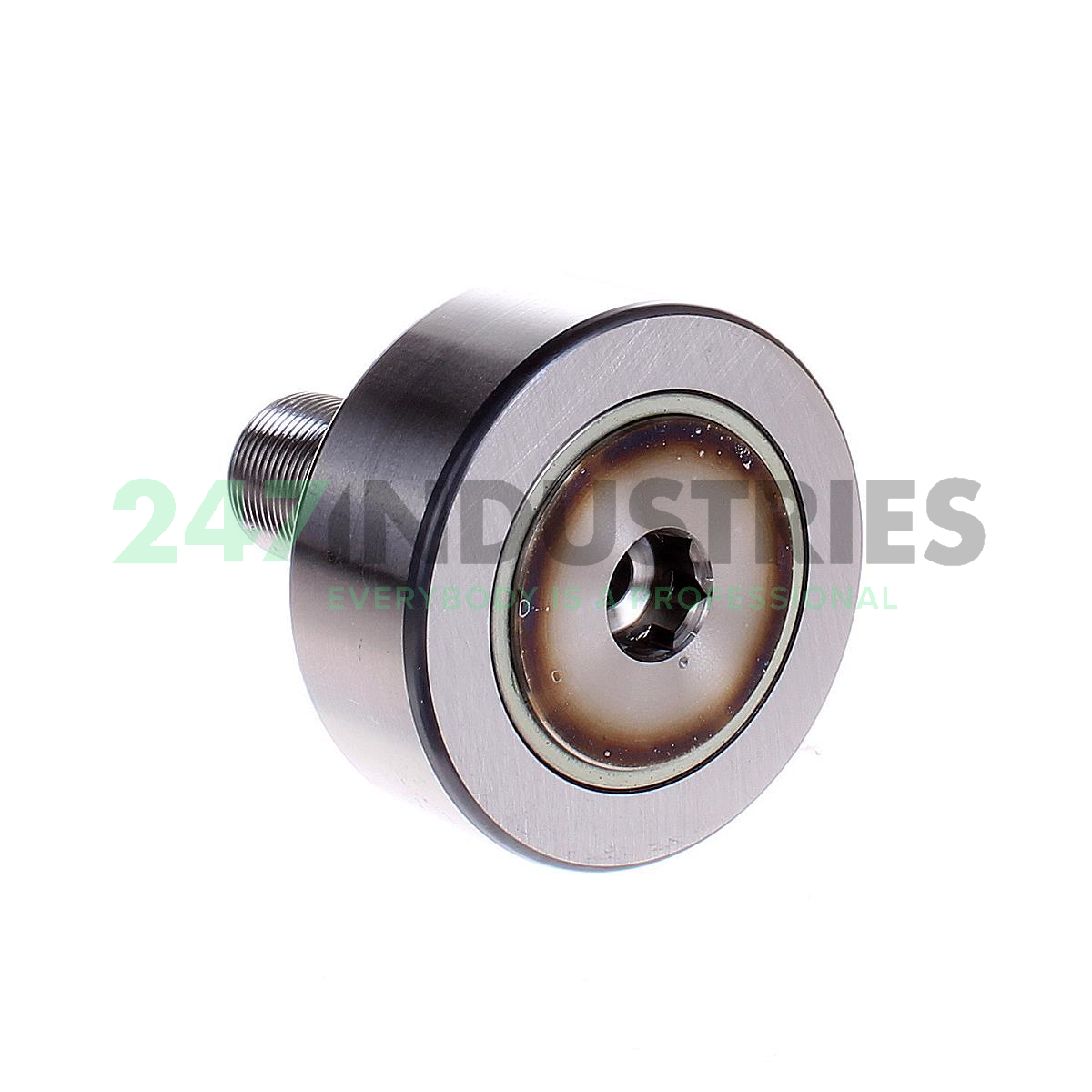

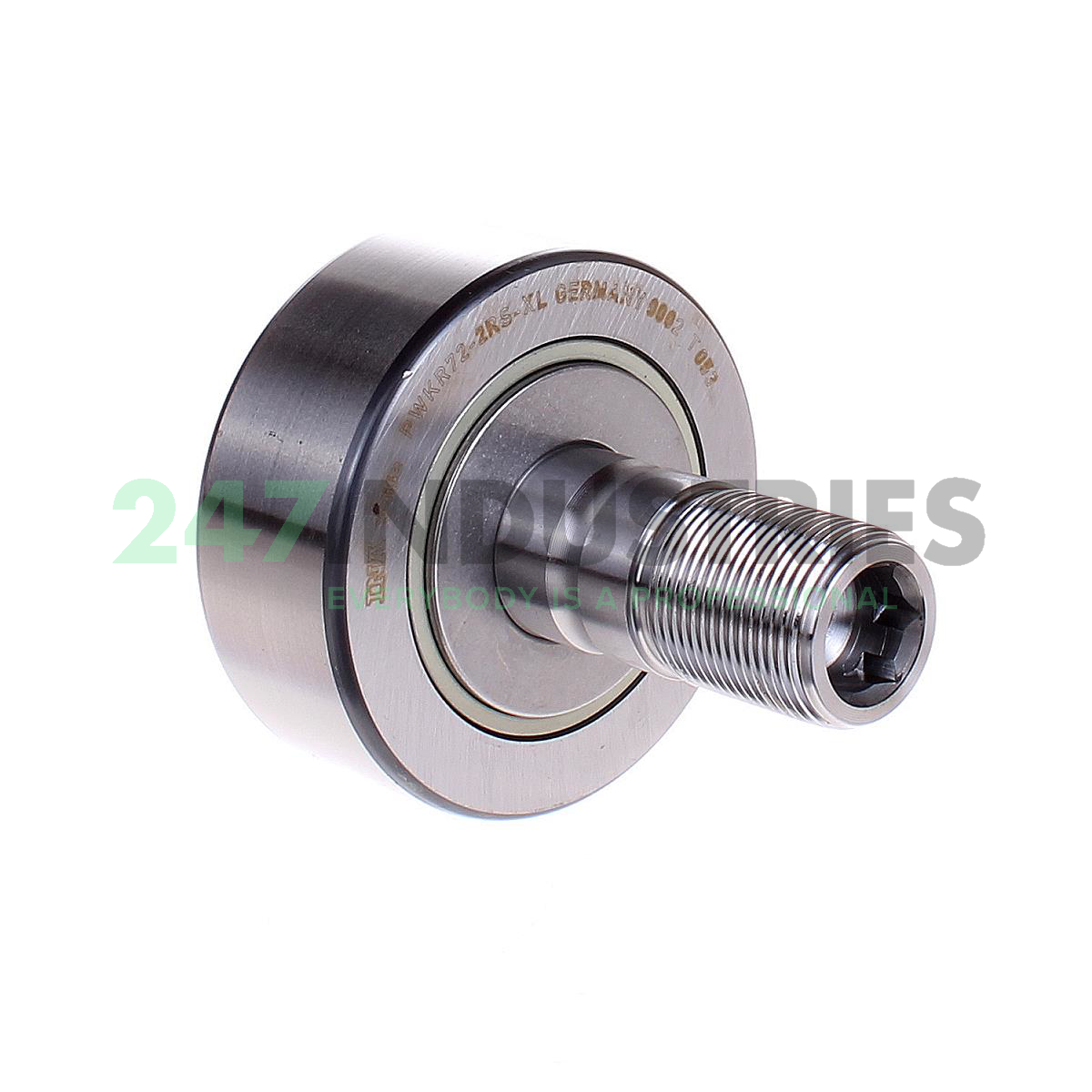

Full complement cam follower with cylindrical rollers

Stock
143 pcs in stock and ready for shipment
Brand INA
Article number PWKR72-2RS-XL INA
Inside diameter 24mm
Outside diameter 72mm
Width 28mm
Product description

The PWKR72-2RS-XL INA is a cam follower with cylindrical rollers. These rolling elements combine a high load capacity with reasonable shock resistance. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.

The PWKR72-2RS-XL INA has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this cam follower radially highly loadable. Full complement cam followers are also more shock-resistant than cam followers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of cam followers include conveyor systems, linear guidance systems, and cam followers.

Read more Show less
Help with this product

Downloads and links

Similar to: PWKR72-2RS-XL INA

Loading similair products

Product specifications

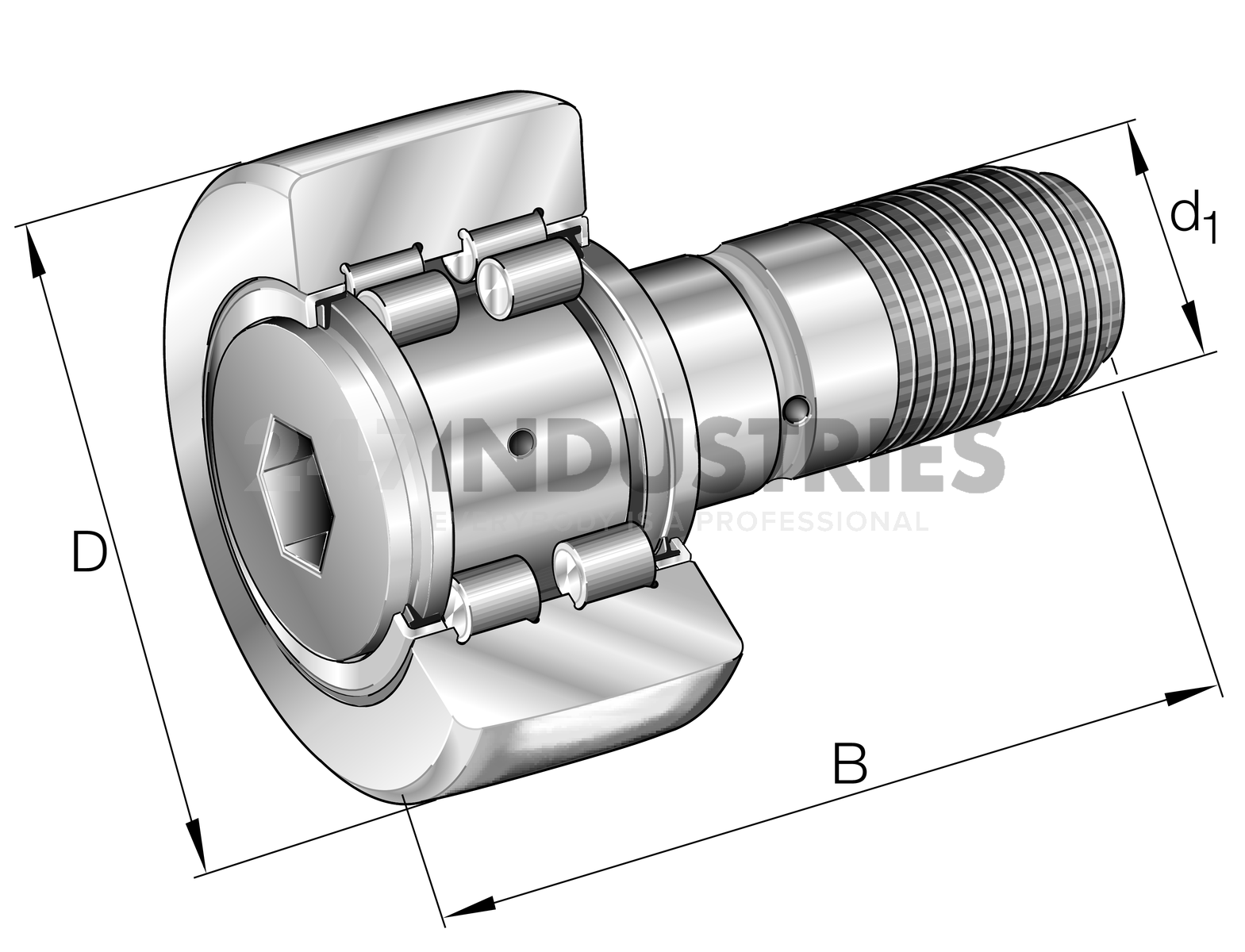

All dimensions

  1. Inner (d) MM 24
  2. Outer (D) MM 72
  3. Width (B) MM 28
  4. Inner (d) Inch 0.9449
  5. Outer (D) Inch 2.8346
  6. Width (B) Inch 1.1024
  7. Fit diameter of roller stud / stud (d 1) mm 24
  8. Width (b) mm 80

Suffix description

  1. 2RS Rubber Seals At Each Side Of The Bearing, Temperature Range -30℃/+120℃
  2. XL X-Life

Technical details

  1. Availability 143 pcs
  2. Brand INA
  3. Item number PWKR72-2RS-XL INA
  4. Also known as 0645546430000
    PWKR72-2RS
  5. EAN 4047643212076
  6. Category Cam Follower

Weight and Dimensions

  1. Weight (kg) 1.1

Product Properties

  1. Seal 2RS - Rubber Seal on Two Sides
  2. Excenterring Other Mounting Method
  3. Running Surface Standard

Data from Schaeffler (medias)

  1. Basic dynamic load rating, radial (C r w) 39000
  2. Basic static load rating, radial (C 0r) 53000
  3. Speed on permanent grease lubrication (n D G) 2200
  4. ECLASS number 23-05-15-02
  5. ECLASS2 number 23-05-15-02
  6. Medias description Stud type track rollers PWKR..-2RS, with axial guidance, full complement cylindrical roller set, lip seals on both sides

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
