PWKRE72-2RS-RR-XL INA

€ 273,84 ex VAT
€ 331,35 in VAT
€ 331,35 in VAT
€ 273,84 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

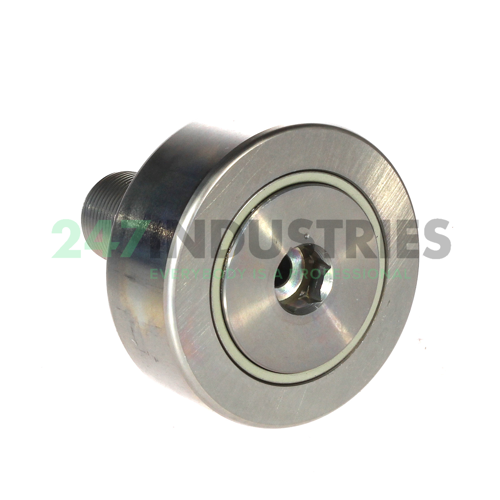

PWKRE72-2RS-RR-XL INA

Full complement cam follower with cylindrical rollers

Stock
4 pcs in stock and ready for shipment
Brand INA
Article number PWKRE72-2RS-RR-XL INA
Inside diameter 28mm
Outside diameter 72mm
Width 28mm
Product description

The PWKRE72-2RS-RR-XL INA is a cam follower with cylindrical rollers. These rolling elements combine a high load capacity with reasonable shock resistance. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.

The PWKRE72-2RS-RR-XL INA has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this cam follower radially highly loadable. Full complement cam followers are also more shock-resistant than cam followers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of cam followers include conveyor systems, linear guidance systems, and cam followers.

Read more Show less
Help with this product

Downloads and links

Similar to: PWKRE72-2RS-RR-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 28
  2. Outer (D) MM 72
  3. Width (B) MM 28
  4. Inner (d) Inch 1.1024
  5. Outer (D) Inch 2.8346
  6. Width (B) Inch 1.1024
  7. Fit diameter of roller stud / stud (d 1) mm 24
  8. Width (b) mm 80

Suffix description

  1. 2RS Rubber Seals At Each Side Of The Bearing, Temperature Range -30℃/+120℃
  2. RR Protected Against Corrosion By Corrotect® Special Coating
  3. XL X-Life

Technical details

  1. Availability 4 pcs
  2. Brand INA
  3. Item number PWKRE72-2RS-RR-XL INA
  4. Also known as 0645547750000
    PWKRE72-2RS-RR
  5. EAN 4054366811219
  6. Category Cam Follower

Weight and Dimensions

  1. Weight (kg) 1.05

Product Properties

  1. Seal 2RS - Rubber Seal on Two Sides
  2. Excenterring E - Excenterring with Inbus Mount
  3. Running Surface Standard

Data from Schaeffler (medias)

  1. Basic dynamic load rating, radial (C r w) 39000
  2. Basic static load rating, radial (C 0r) 53000
  3. Speed on permanent grease lubrication (n D G) 2200
  4. ECLASS number 23-05-15-02
  5. ECLASS2 number 23-05-15-02
  6. Medias description Yoke type track roller PWKRE..-2RS-RR-XL, full complement roller set, two-row, with axial guidance, with eccentric, pallet changer

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
