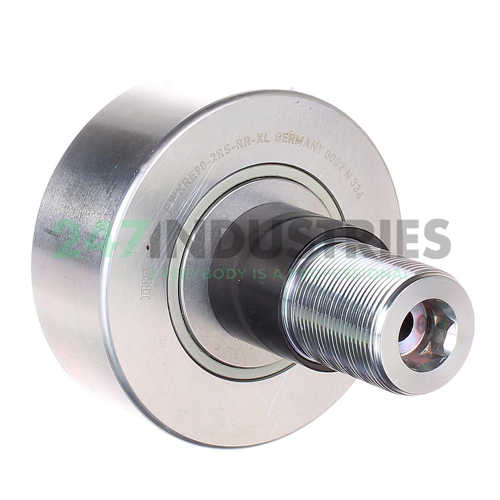

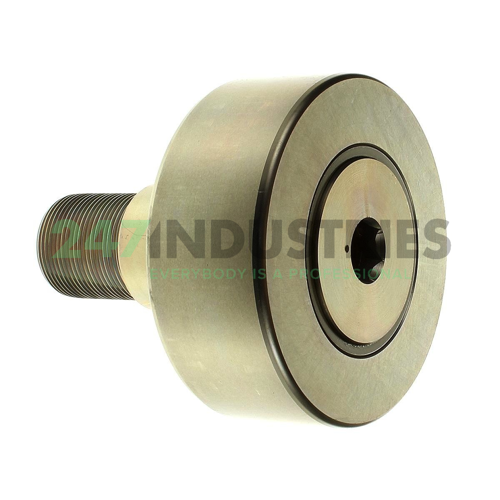

PWKRE90-2RS-RR-XL INA

Full complement cam follower with cylindrical rollers

Stock
10 pcs in stock and ready for shipment
Brand INA
Article number PWKRE90-2RS-RR-XL INA
Inside diameter 35mm
Outside diameter 90mm
Width 35mm
Product description

The PWKRE90-2RS-RR-XL INA is a cam follower with cylindrical rollers. These rolling elements combine a high load capacity with reasonable shock resistance. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.

The PWKRE90-2RS-RR-XL INA has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this cam follower radially highly loadable. Full complement cam followers are also more shock-resistant than cam followers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of cam followers include conveyor systems, linear guidance systems, and cam followers.

Read more Show less
Help with this product

Downloads and links

Similar to: PWKRE90-2RS-RR-XL INA

Loading similair products

Product specifications

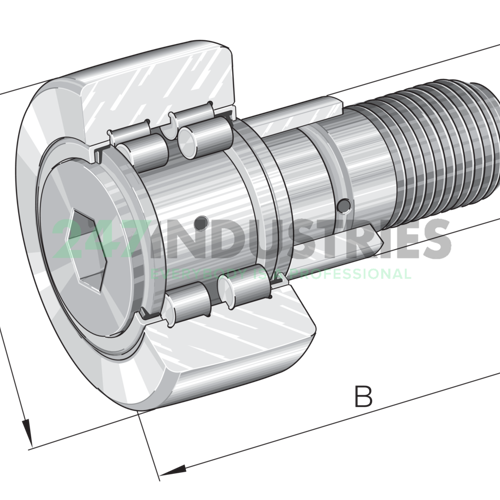

All dimensions

  1. Inner (d) MM 35
  2. Outer (D) MM 90
  3. Width (B) MM 35
  4. Inner (d) Inch 1.378
  5. Outer (D) Inch 3.5433
  6. Width (B) Inch 1.378
  7. Fit diameter of roller stud / stud (d 1) mm 30
  8. Width (b) mm 100

Suffix description

  1. 2RS Rubber Seals At Each Side Of The Bearing, Temperature Range -30℃/+120℃
  2. RR Protected Against Corrosion By Corrotect® Special Coating
  3. XL X-Life

Technical details

  1. Availability 10 pcs
  2. Brand INA
  3. Item number PWKRE90-2RS-RR-XL INA
  4. Also known as 0645872660000
    PWKRE90-2RS-RR
  5. EAN 4054366813206
  6. Category Cam Follower

Weight and Dimensions

  1. Weight (kg) 2.186

Product Properties

  1. Seal 2RS - Rubber Seal on Two Sides
  2. Excenterring E - Excenterring with Inbus Mount
  3. Running Surface Standard

Data from Schaeffler (medias)

  1. Basic dynamic load rating, radial (C r w) 63000
  2. Basic static load rating, radial (C 0r) 89000
  3. Speed on permanent grease lubrication (n D G) 1800
  4. ECLASS number 23-05-15-02
  5. ECLASS2 number 23-05-15-02
  6. Medias description Yoke type track roller PWKRE..-2RS-RR-XL, full complement roller set, two-row, with axial guidance, with eccentric, pallet changer
