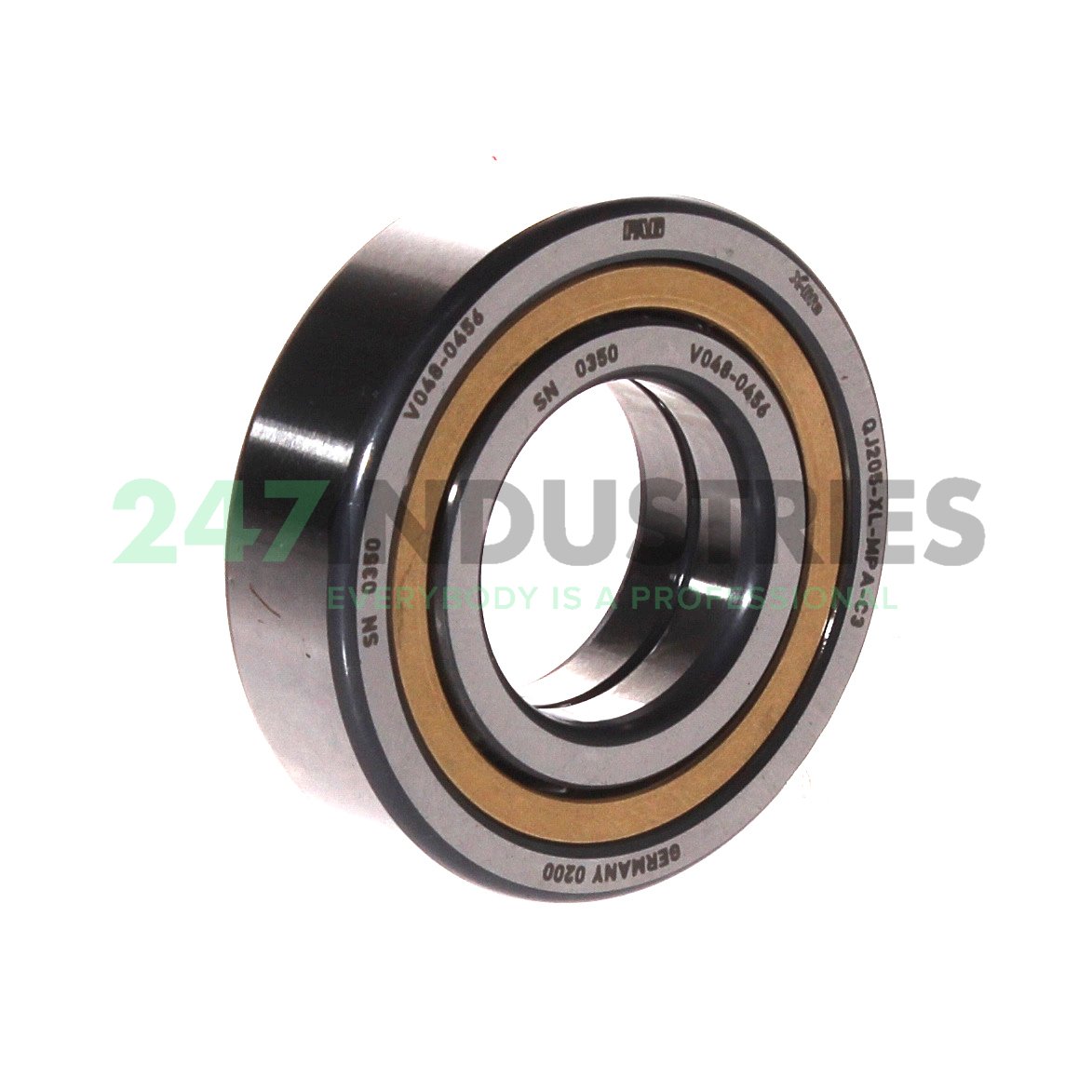

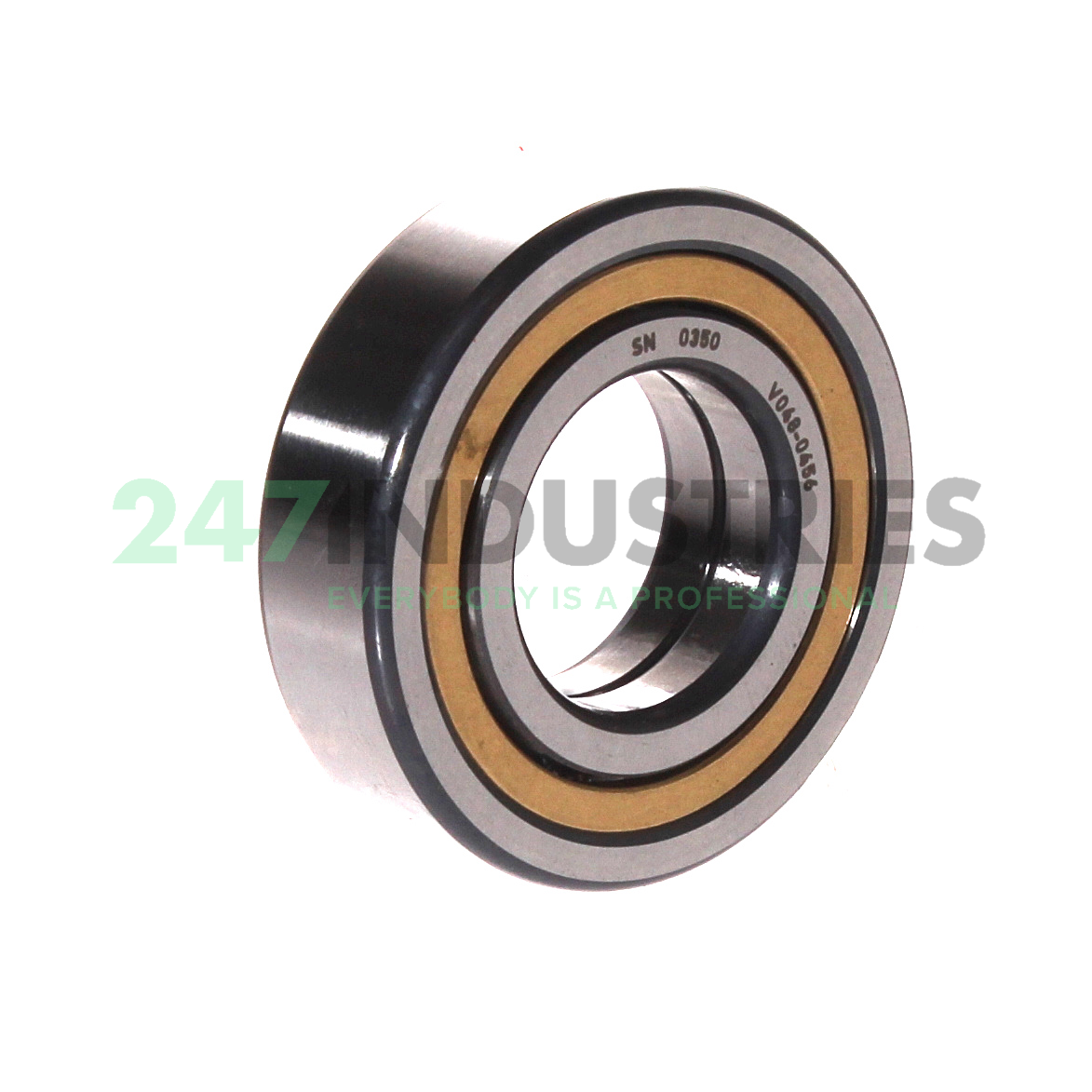

QJ205-XL-MPA-C3 FAG

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 52
3. Width (B) MM 15
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906
7. Width (b) mm 15

Suffix description

1. XL X-Life
2. MPA Solid Brass Cage
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 15 pcs
2. Brand FAG
3. Item number QJ205-XL-MPA-C3 FAG
4. Also known as 0192601480030
   QJ205-MPA-C3

5. EAN 4012801315432
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.16

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification No External Modification
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 18800
2. Radial Dynamic Load Rating Cr (N) 26000
3. Basic static load rating, radial (C 0r) "18800.0000"
4. Limiting speed (n G) 28000
5. Reference speed (n ϑr) 12300
6. ECLASS number 23-05-08-03
7. ECLASS2 number 23-05-08-03
8. Medias description Four-point contact bearing QJ2..-XL-MPA, inner ring split
