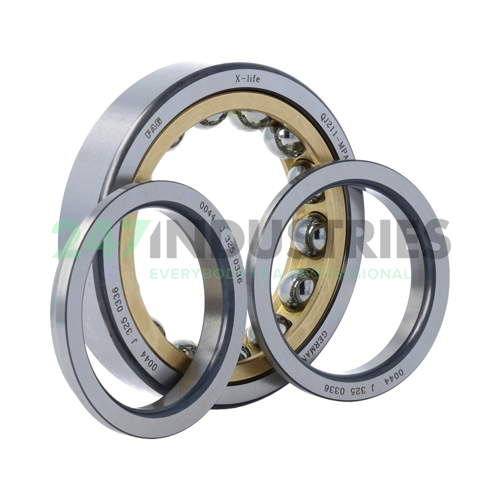

QJ211-MPA-C3 FAG

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 100
3. Width (B) MM 21
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.8268

Suffix description

1. MPA Type Machined Brass Cage; Guidance By The Outer Ring (Housing)
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 93 pcs
2. Brand FAG
3. Item number QJ211-MPA-C3 FAG
4. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.75

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification No External Modification
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring
