QJ211-XL-MPA-T42A FAG

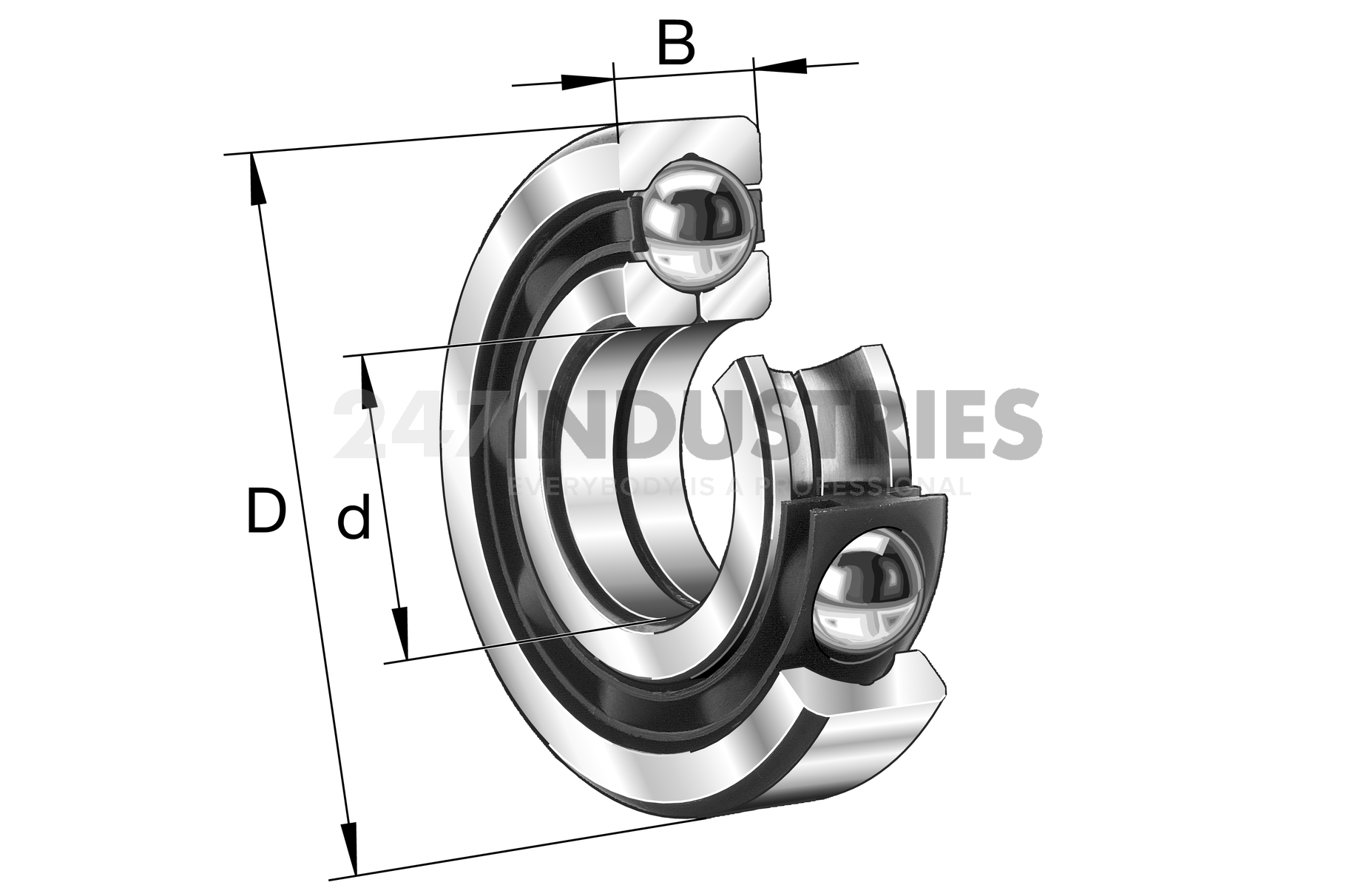

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 100
3. Width (B) MM 21
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.8268

Suffix description

1. XL X-Life
2. MPA Solid Brass Cage
3. T42A Special Axial C2 Clearance

Technical details

1. Availability 12 pcs
2. Brand FAG
3. Item number QJ211-XL-MPA-T42A FAG
4. Also known as QJ211-MPA-T42A

5. EAN 4012802547047
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.75

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. Radial Internal Play C2 Internal Play (Less than Cn)
4. Precision Special Axial Clearance
5. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
6. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 71000
2. Radial Dynamic Load Rating Cr (N) 77000
3. ECLASS number 23-05-08-03
4. ECLASS2 number 23-05-08-03
5. Medias description Four-point contact bearing QJ2..-XL-MPA, inner ring split

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
