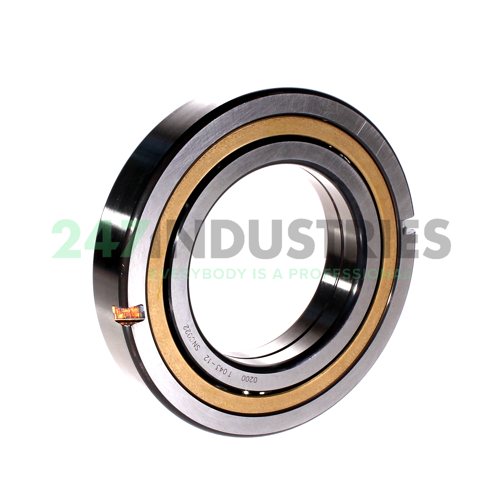

QJ216-XL-N2-MPA-C4 FAG

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 140
3. Width (B) MM 26
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 5.5118
6. Width (B) Inch 1.0236
7. Width (b) mm 26

Suffix description

1. XL X-Life

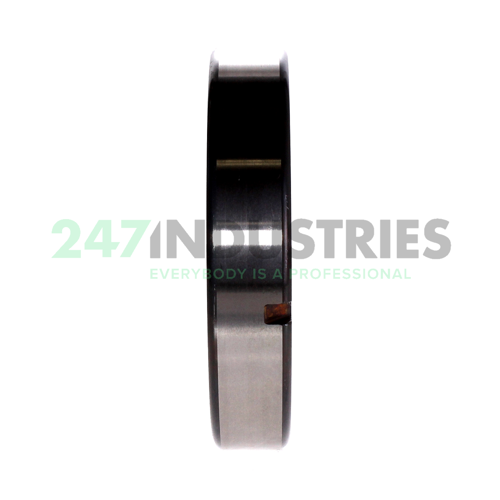

2. N2 Two Locating Slots (Notches) 180° Apart In One Outer Ring Side Face Or Housing Washer
3. MPA Window-Type Machined Brass Cage; Guidance By The Outer Ring (Housing)
4. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 4 pcs on Fri 29 Nov
2. Brand FAG
3. Item number QJ216-XL-N2-MPA-C4 FAG
4. Also known as 0167423380040
   QJ216-N2-MPA-C4

5. EAN 4012802026474
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 1.75

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification N2 - 2 Locking Groove in Outer Ring
4. Radial Internal Play C4 Internal Play (Higher than C3)
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 137000
2. Radial Dynamic Load Rating Cr (N) 136000
3. Basic static load rating, radial (C 0r) "137000.0000"
4. Limiting speed (n G) 9400
5. Reference speed (n ϑr) 4250
6. ECLASS number 23-05-08-03
7. ECLASS2 number 23-05-08-03
8. Medias description Four-point contact bearing QJ2..-XL-N2-MPA, inner ring split
