QJ228-N2-MPA-C3 FAG

958,34 ex VAT
€ 1.159,59 incl. VAT
€ 1.159,59 incl. VAT
958,34 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

QJ228-N2-MPA-C3 FAG

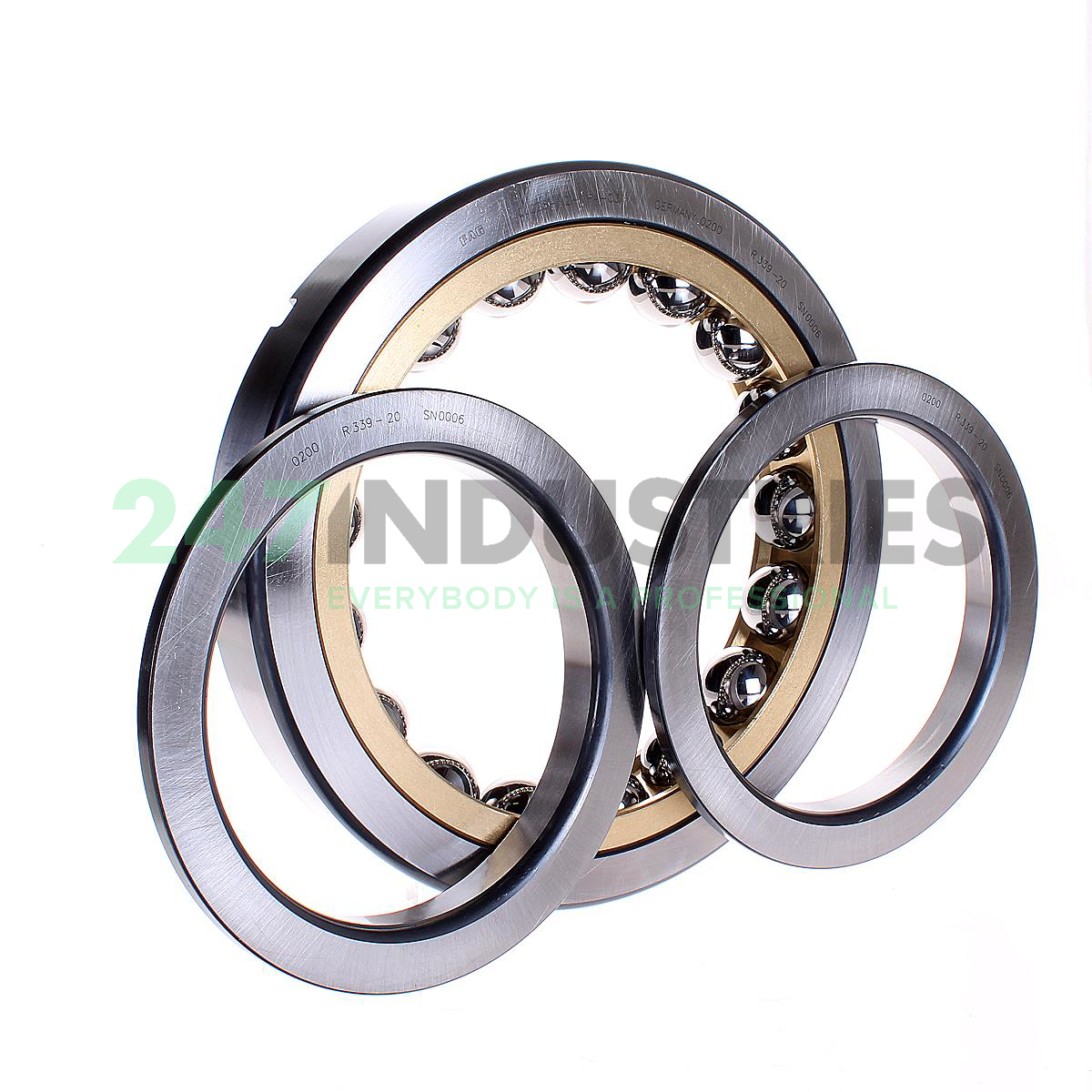

Four point contact bearings QJ2..-N2, main dimensions to DIN 628-4, can be dismantled, with split inner ring, with two retaining slots

Stock
3 pcs in stock and ready for shipment
Brand FAG
Article number QJ228-N2-MPA-C3 FAG
Width 42mm
Product description
Read more Show less
Help with this product

Similar to: QJ228-N2-MPA-C3 FAG

Loading similair products

Product specifications

All dimensions

  1. Width (B) MM 42
  2. Width (B) Inch 1.6535

Suffix description

  1. N2 Two Locating Slots (Notches) 180° Apart In One Outer Ring Side Face Or Housing Washer
  2. MPA Window-Type Machined Brass Cage; Guidance By The Outer Ring (Housing)
  3. C3 Internal Clearance Larger Than Normal

Technical details

  1. Availability 3 pcs
  2. Brand FAG
  3. Item number QJ228-N2-MPA-C3 FAG
  4. Also known as 0190052450030
  5. EAN 4012801267816
  6. Category Four Point Contact Ball Bearing

Weight and Dimensions

  1. Weight (kg) 9.7

Product Properties

  1. Seal No Seal
  2. Cage Type MA - Brass Cage, Centered on Outer Ring
  3. External Modification N2 - 2 Locking Groove in Outer Ring
  4. Radial Internal Play C3 Internal Play (Higher than Cn)
  5. Precision Standard Precision
  6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

  1. Medias description Four-point contact bearing QJ2..-N2-MPA, inner ring split
Show all details Show less

Order this product

QJ228-N2-MPA-C3 FAG

QJ228-N2-MPA-C3 FAG

3 pcs in stock and ready for shipment
Guaranteed same day shipment on orders placed before 17:00h (CET)
958,34 ex VAT
958,34 ex VAT

QJ228-N2-MPA-C3 FAG

3 pcs in stock and ready for shipment
Guaranteed same day shipment on orders placed before 17:00h (CET)
UPS TNT iDeal, Mastercard, Visa, Paypall
