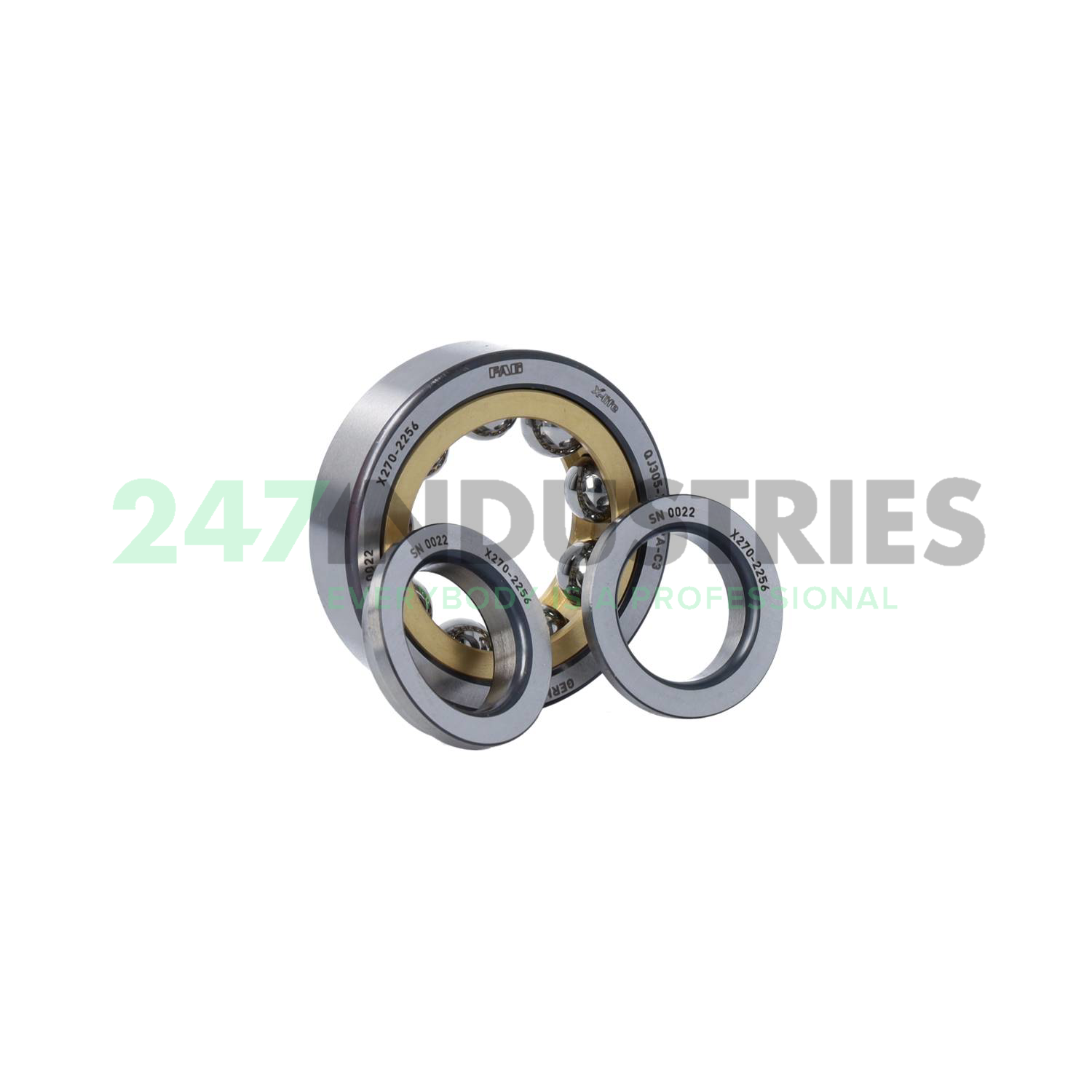

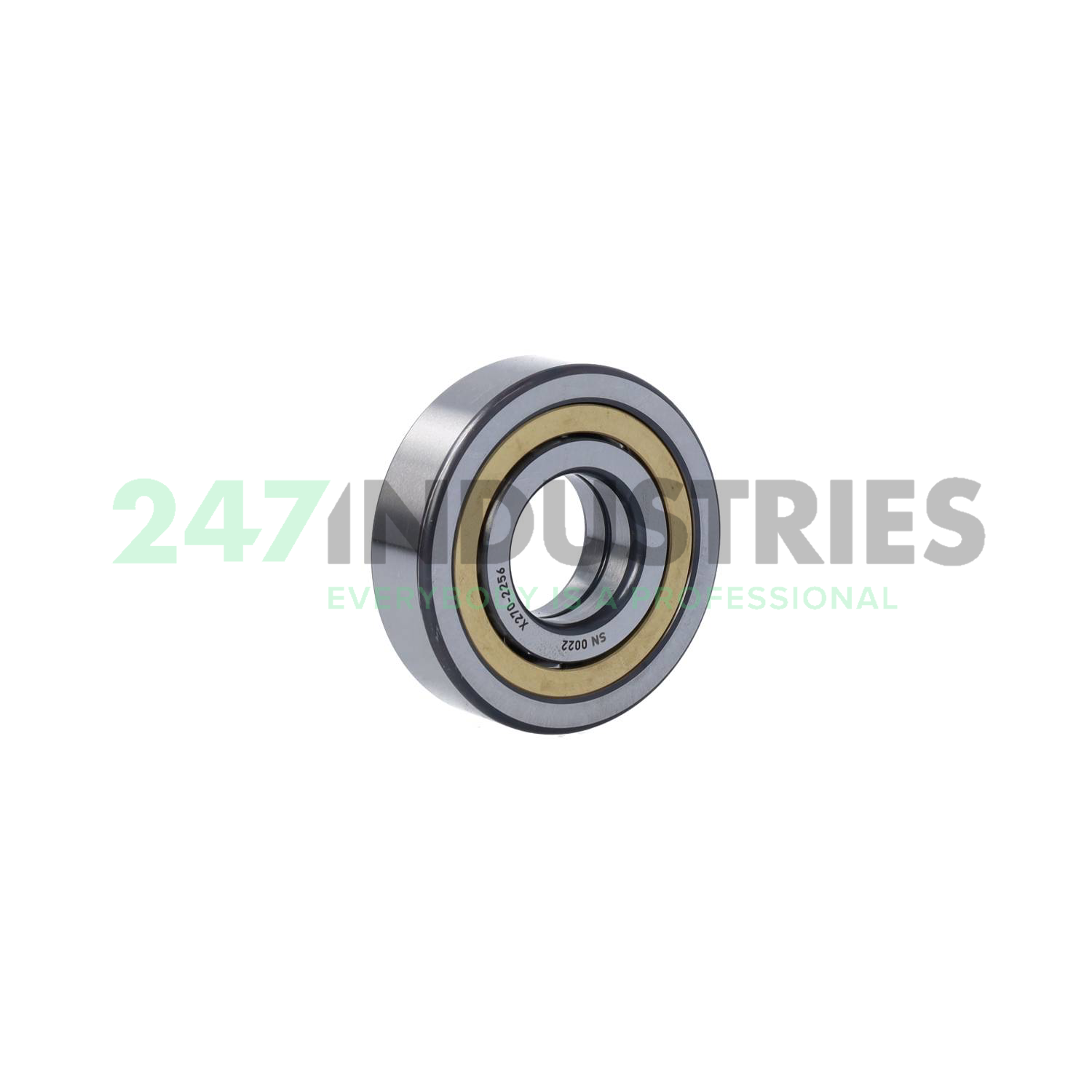

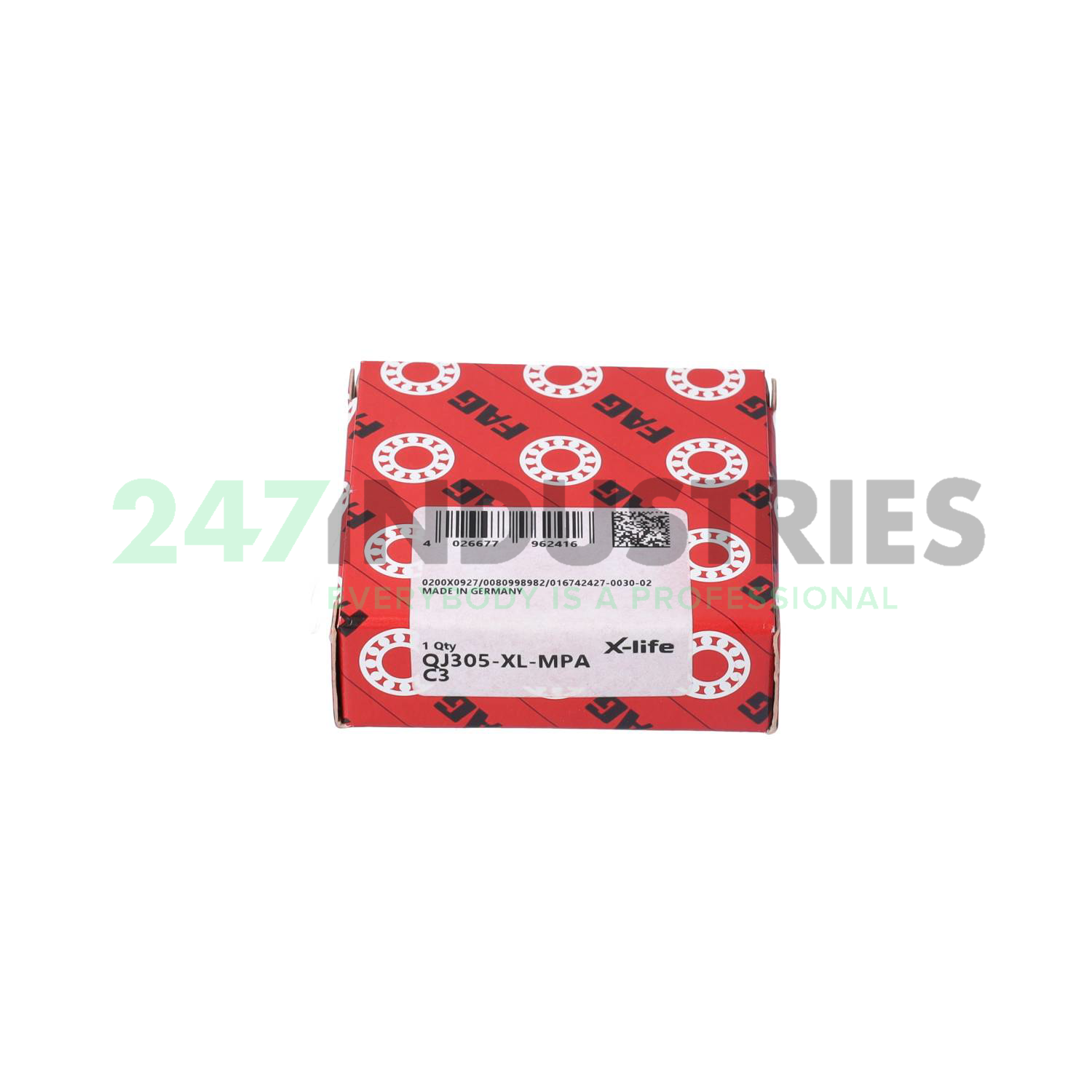

QJ305-XL-MPA-C3 FAG

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 62
3. Width (B) MM 17
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6693
7. Width (b) mm 17

Suffix description

1. XL X-Life
2. MPA Solid Brass Cage
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 6 pcs
2. Brand FAG
3. Item number QJ305-XL-MPA-C3 FAG
4. Also known as 0167424270030
   QJ305-MPA-C3

5. EAN 4026677962416
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.28

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification No External Modification
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 28500
2. Radial Dynamic Load Rating Cr (N) 43500
3. Limiting speed (n G) 23300
4. Reference speed (n ϑr) 9000
5. ECLASS number 23-05-08-03
6. ECLASS2 number 23-05-08-03
7. Medias description Four-point contact bearing QJ3..-XL-MPA, inner ring split
