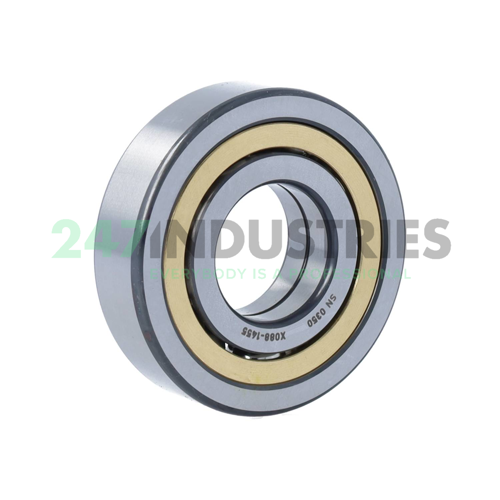

QJ306-XL-MPA-C3 FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 19
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.748
7. Width (b) mm 19

Suffix description

1. XL X-Life
2. MPA Solid Brass Cage
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 14 pcs
2. Brand FAG
3. Item number QJ306-XL-MPA-C3 FAG
4. Also known as 0167424430030
   QJ306-MPA-C3

5. EAN 4012801180801
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.414

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification No External Modification
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

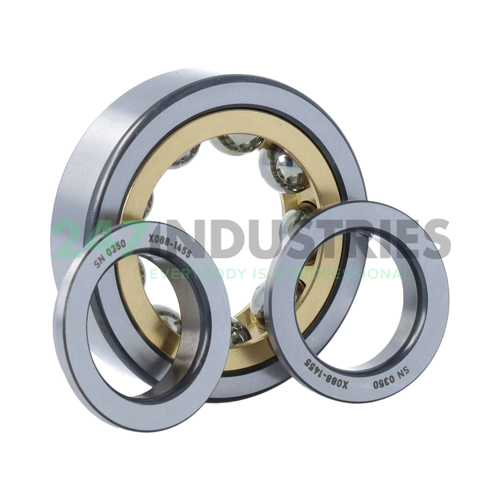

7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 38500
2. Radial Dynamic Load Rating Cr (N) 57000
3. Basic static load rating, radial (C 0r) "38500.0000"
4. Limiting speed (n G) 19600
5. Reference speed (n ϑr) 7800
6. ECLASS number 23-05-08-03
7. ECLASS2 number 23-05-08-03
8. Medias description Four-point contact bearing QJ3..-XL-MPA, inner ring split
