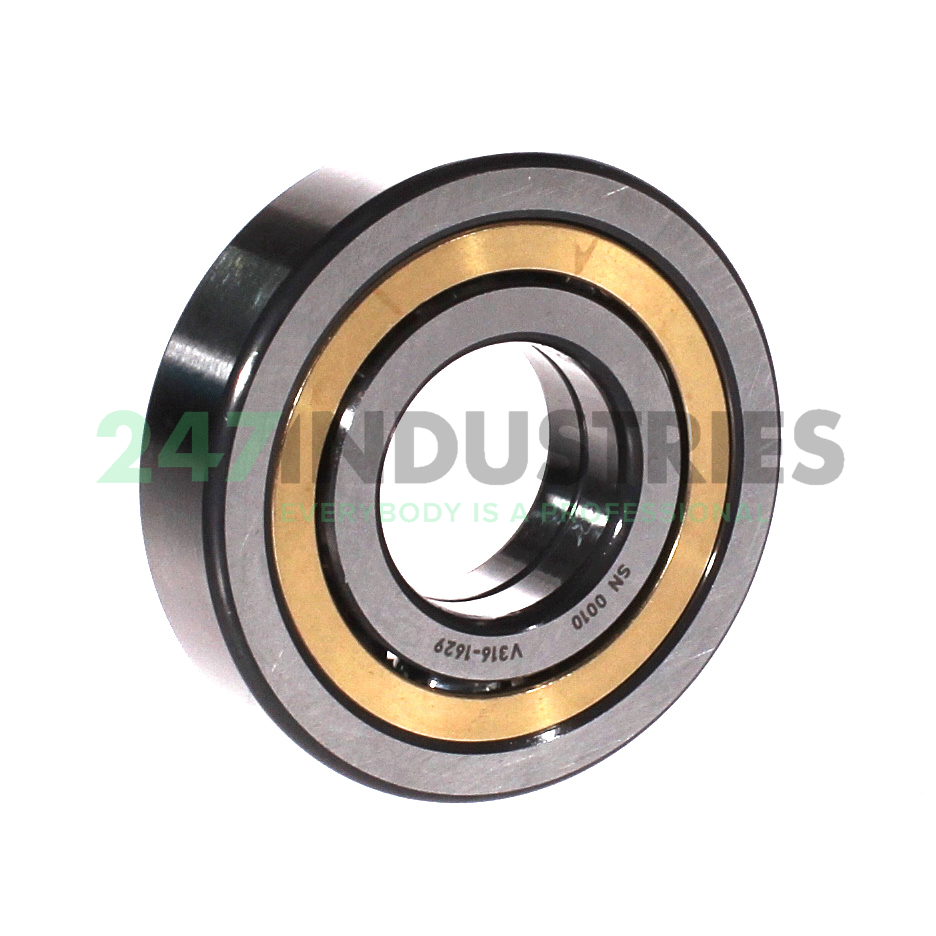

QJ306-XL-MPA-T42A FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 19
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.748
7. Width (b) mm 19

Suffix description

1. XL X-Life
2. MPA Solid Brass Cage
3. T42A Special Axial C2 Clearance

Technical details

1. Availability 8 pcs
2. Brand FAG
3. Item number QJ306-XL-MPA-T42A FAG
4. Also known as 0167424434380
   QJ306-MPA-T42A

5. EAN 4012801969376
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.414

Product Properties

1. Seal No Seal
2. Cage Type MA - Brass Cage, Centered on Outer Ring
3. External Modification No External Modification
4. Radial Internal Play C2 Internal Play (Less than Cn)
5. Precision Special Axial Clearance
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 38500
2. Radial Dynamic Load Rating Cr (N) 57000
3. Basic static load rating, radial (C 0r) "38500.0000"
4. Limiting speed (n G) 19600
5. Reference speed (n ϑr) 7800
6. ECLASS number 23-05-08-03
7. ECLASS2 number 23-05-08-03
8. Medias description Four-point contact bearing QJ3..-XL-MPA, inner ring split
