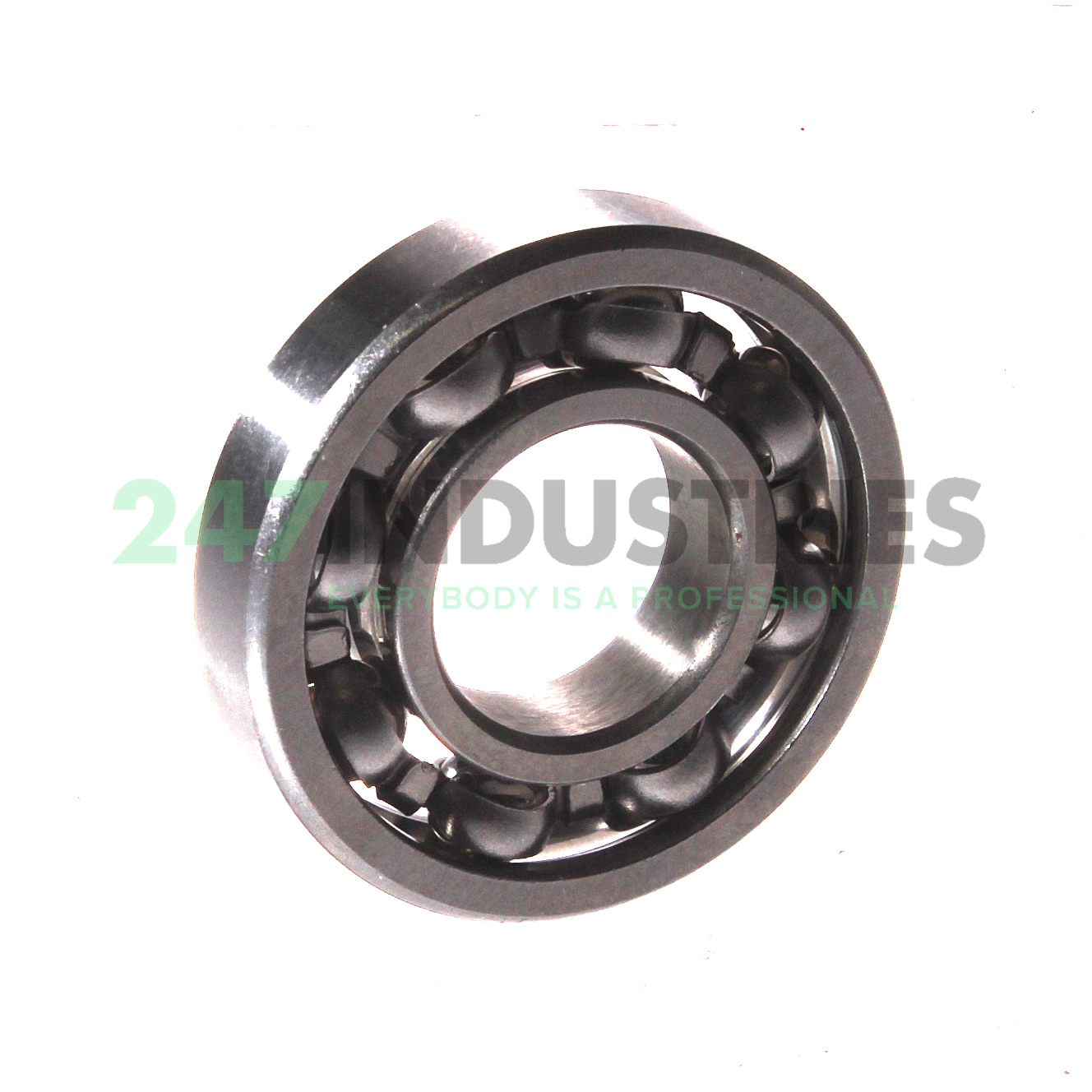

R8-HLC FAG

All dimensions

1. Inner (d) MM 12,7
2. Outer (D) MM 28,578
3. Width (B) MM 6,35
4. Inner (d) Inch 0.5
5. Outer (D) Inch 1.125
6. Width (B) Inch 0.25

Suffix description

1. HLC Factory Location Code, No Additional Meaning, Can Be Used As Standard

Technical details

1. Availability 74 pcs
2. Brand FAG
3. Item number R8-HLC FAG
4. Also known as 0552368630000
   EE4

5. EAN 4054364065317
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.014

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-01
2. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
