RASE35-XL-N-I INA

€ 53,91 ex VAT
€ 65,23 incl. VAT
€ 65,23 incl. VAT
€ 53,91 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

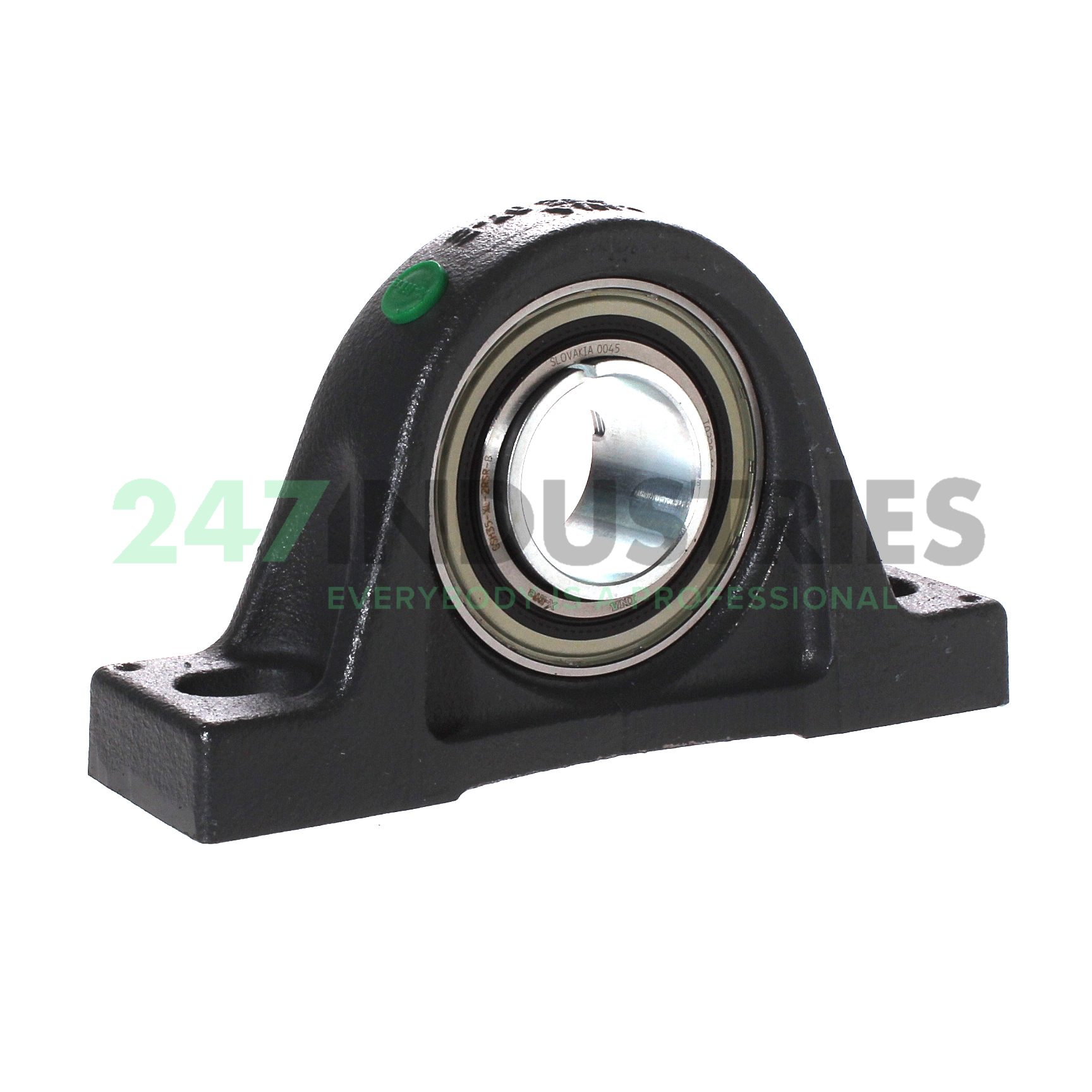

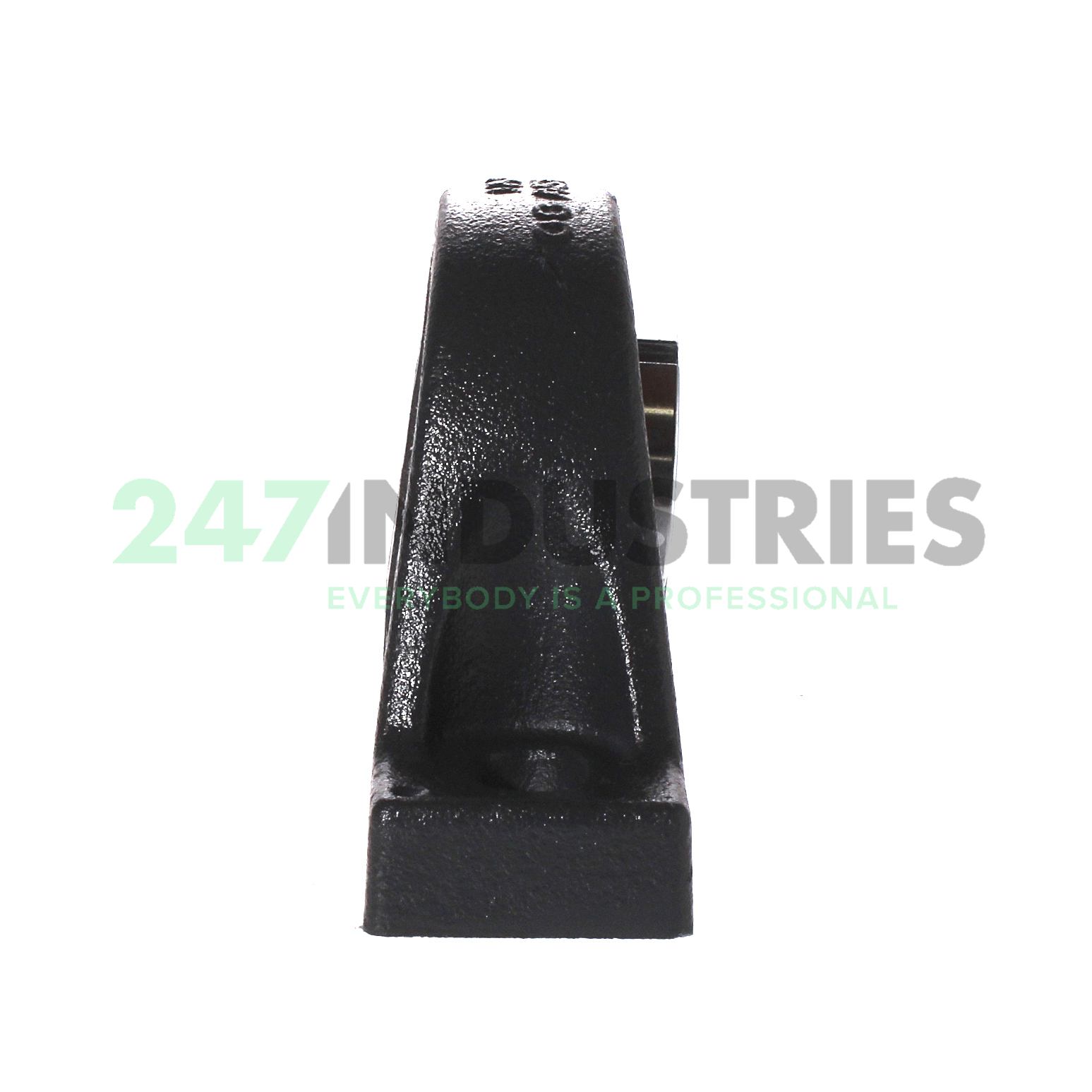

RASE35-XL-N-I INA

Housing unit

Stock
2 pcs in stock and ready for shipment
Brand INA
Article number RASE35-XL-N-I INA
Inside diameter 35mm
Outside diameter 163mm
Width 51,3mm
Product description

The RASE35-XL-N-I INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RASE35-XL-N-I INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 35
  2. Outer (D) MM 163
  3. Width (B) MM 51,3
  4. Inner (d) Inch 1.378
  5. Outer (D) Inch 6.4173
  6. Width (B) Inch 2.0197

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps
  3. I Inch Size Grease Nipple R 1/8”

Technical details

  1. Availability 2 pcs
  2. Brand INA
  3. Item number RASE35-XL-N-I INA
  4. Also known as 0096427300000
    NIP DIN71412-A R 1/8
    NIP DIN71412-B R 1/8
    NIP DIN71412-C R 1/8
    RASE35-N-I
  5. EAN 4012802838169
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.69

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-01
  2. ECLASS2 number 23-05-16-01
  3. Medias description Plummer block housing units RASE, cast iron housing, radial insert ball bearing with eccentric locking collar, R seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
