RASE40-XL-N-FA125 INA

€ 84,71 ex VAT
€ 102,50 incl. VAT
€ 102,50 incl. VAT
€ 84,71 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

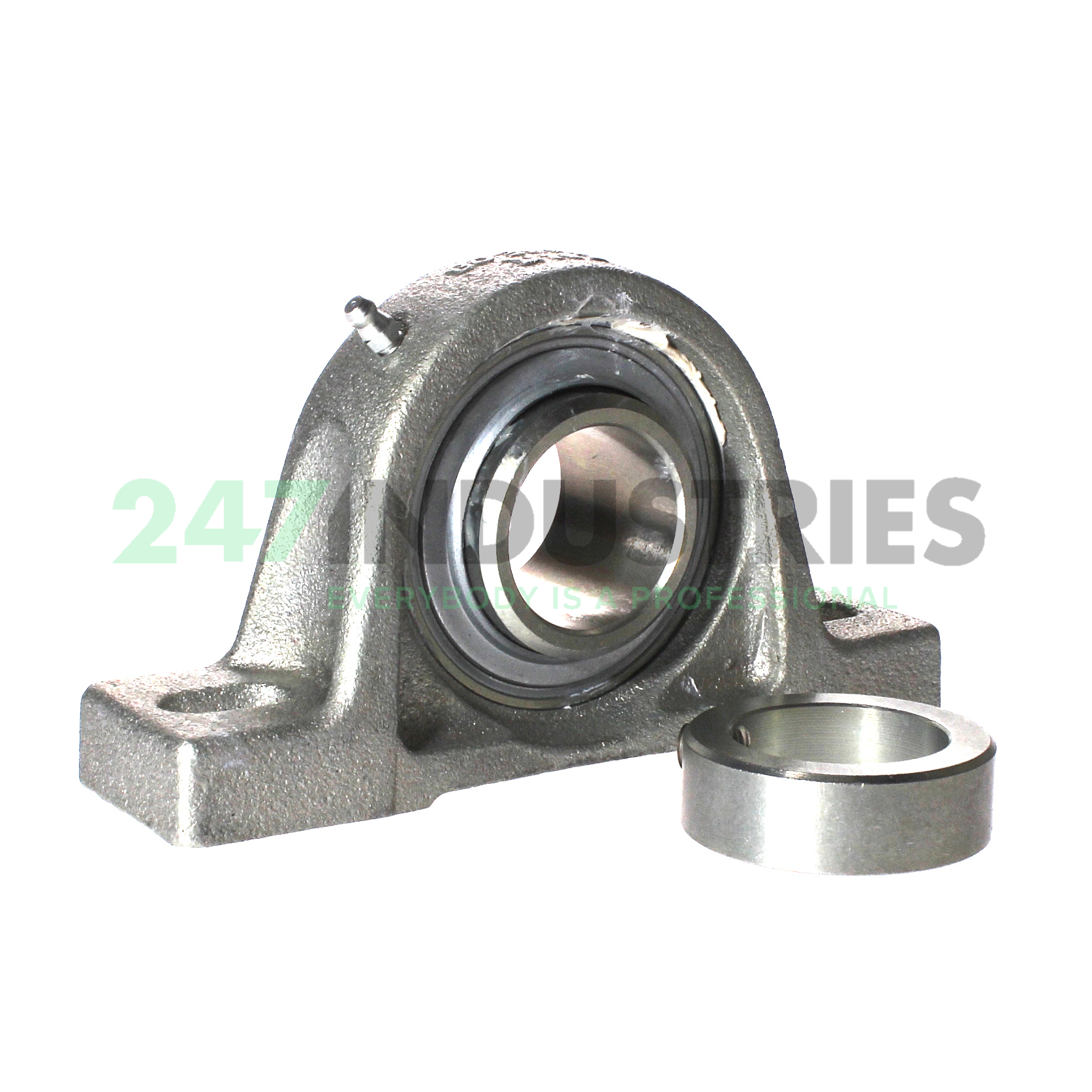

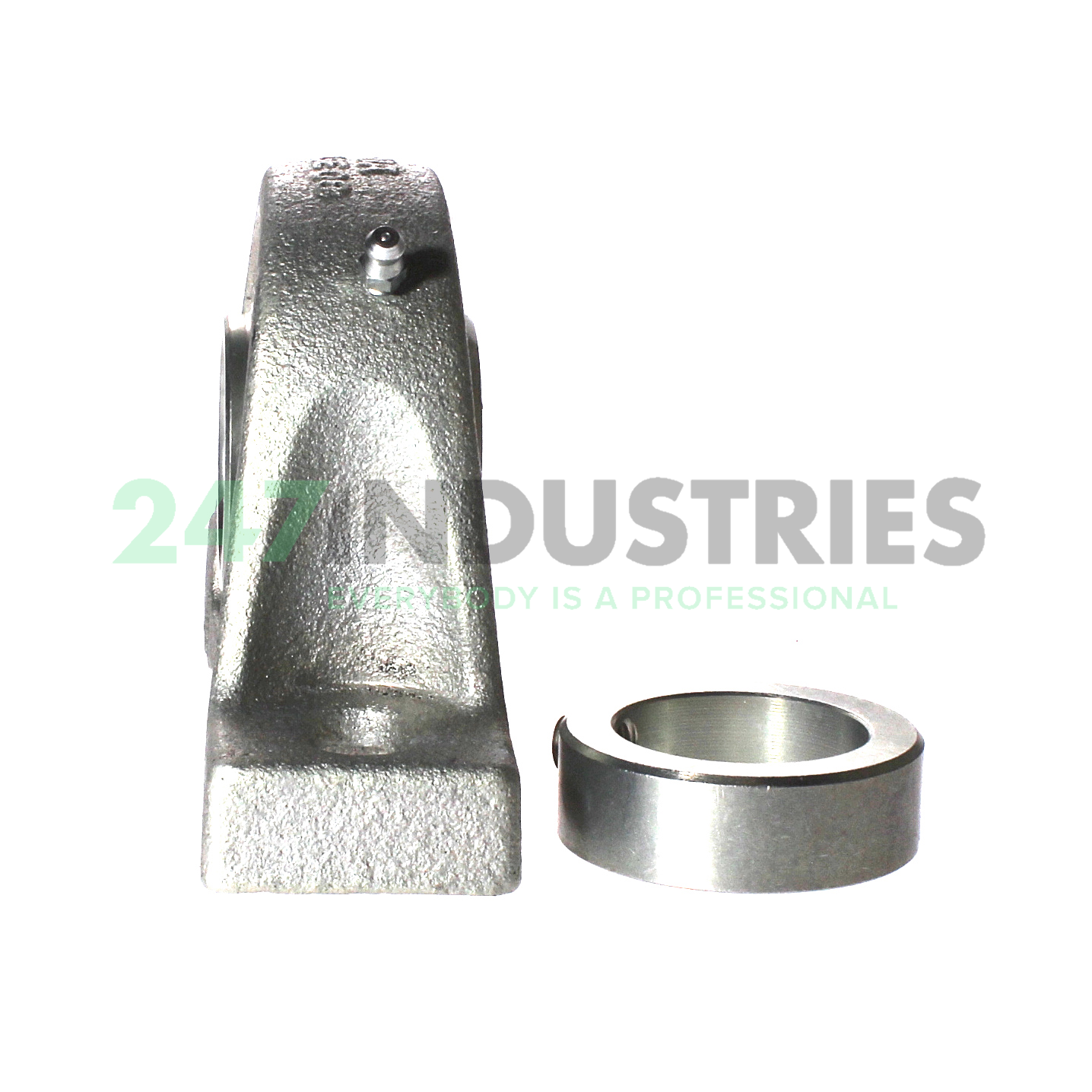

RASE40-XL-N-FA125 INA

Housing unit

Stock
19 pcs in stock and ready for shipment
Brand INA
Article number RASE40-XL-N-FA125 INA
Inside diameter 40mm
Outside diameter 179mm
Width 56,5mm
Product description

The RASE40-XL-N-FA125 INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RASE40-XL-N-FA125 INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 179
  3. Width (B) MM 56,5
  4. Inner (d) Inch 1.5748
  5. Outer (D) Inch 7.0472
  6. Width (B) Inch 2.2244
  7. Length total (L) mm 179
  8. Height (H 2) mm 99

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps
  3. FA125 With Corrotect® Coating, Protected Against Corrosion

Technical details

  1. Availability 19 pcs
  2. Brand INA
  3. Item number RASE40-XL-N-FA125 INA
  4. Also known as 0096327860000
    RASE40-N-FA125
  5. EAN 4012802809800
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.95

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment With Corrotect® Coating

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-01
  2. ECLASS2 number 23-05-16-01
  3. Medias description Plummer block housing units RASE..-FA125, cast iron housing, radial insert ball bearing with eccentric locking collar, R seals, with anti-corrosion protection

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
