RASEA20-XL-N INA

Name: RASEA20-XL-N INA
Brand: INA

€ 49,94 ex VAT

€ 60,43 incl. VAT

€ 49,94 ex VAT

	Guaranteed same day shipment on orders placed before 17.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

RASEA20-XL-N INA

Housing unit

Stock	20 pcs in stock and ready for shipment
Brand	INA
Article number	RASEA20-XL-N INA
Inside diameter	20mm
Outside diameter	130mm
Width	28mm

Product description

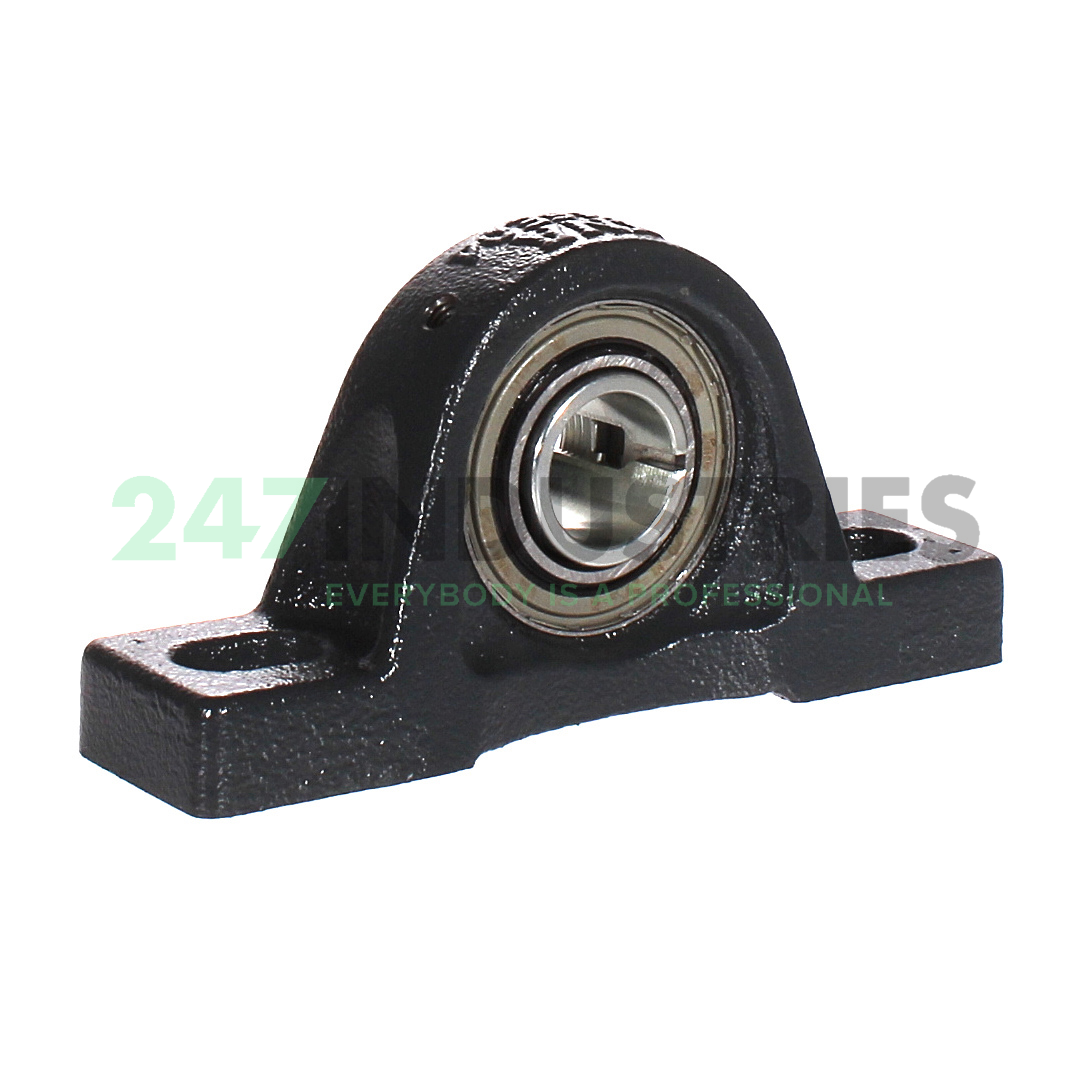

The RASEA20-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Start a chat
Call us at: +31 (0)85 00 22 247
Email us at: help@247industries.com Response within 24h

Downloads and links

Similar to: RASEA20-XL-N INA

Loading similair products

Product specifications

Inside diameter 20mm
Outside diameter 130mm
Width 28mm

All dimensions

Inner (d) MM 20
Outer (D) MM 130
Width (B) MM 28
Inner (d) Inch 0.7874
Outer (D) Inch 5.1181
Width (B) Inch 1.1024
Length total (L) mm 130
Height (H 2) mm 64

Suffix description

XL X-Life
N Cast Iron Housing With Undercut Slot For End Caps

Technical details

Availability 20 pcs
Brand INA
Item number RASEA20-XL-N INA
Also known as 0009525830000
RASEA20-N
EAN 4012802823660
Category Housing and Bearing (assembly)

Weight and Dimensions

Weight (kg) 0.51

Product Properties

Seal 2F - Standard Seal for Y-bearings
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

ECLASS number 23-05-16-01
ECLASS2 number 23-05-16-01
Medias description Plummer block housing units RASEA, cast iron housing, radial insert ball bearing with adapter sleeve, R seals
