RCJT20-XL-N INA

€ 36,57 ex VAT
€ 44,25 incl. VAT
€ 44,25 incl. VAT
€ 36,57 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

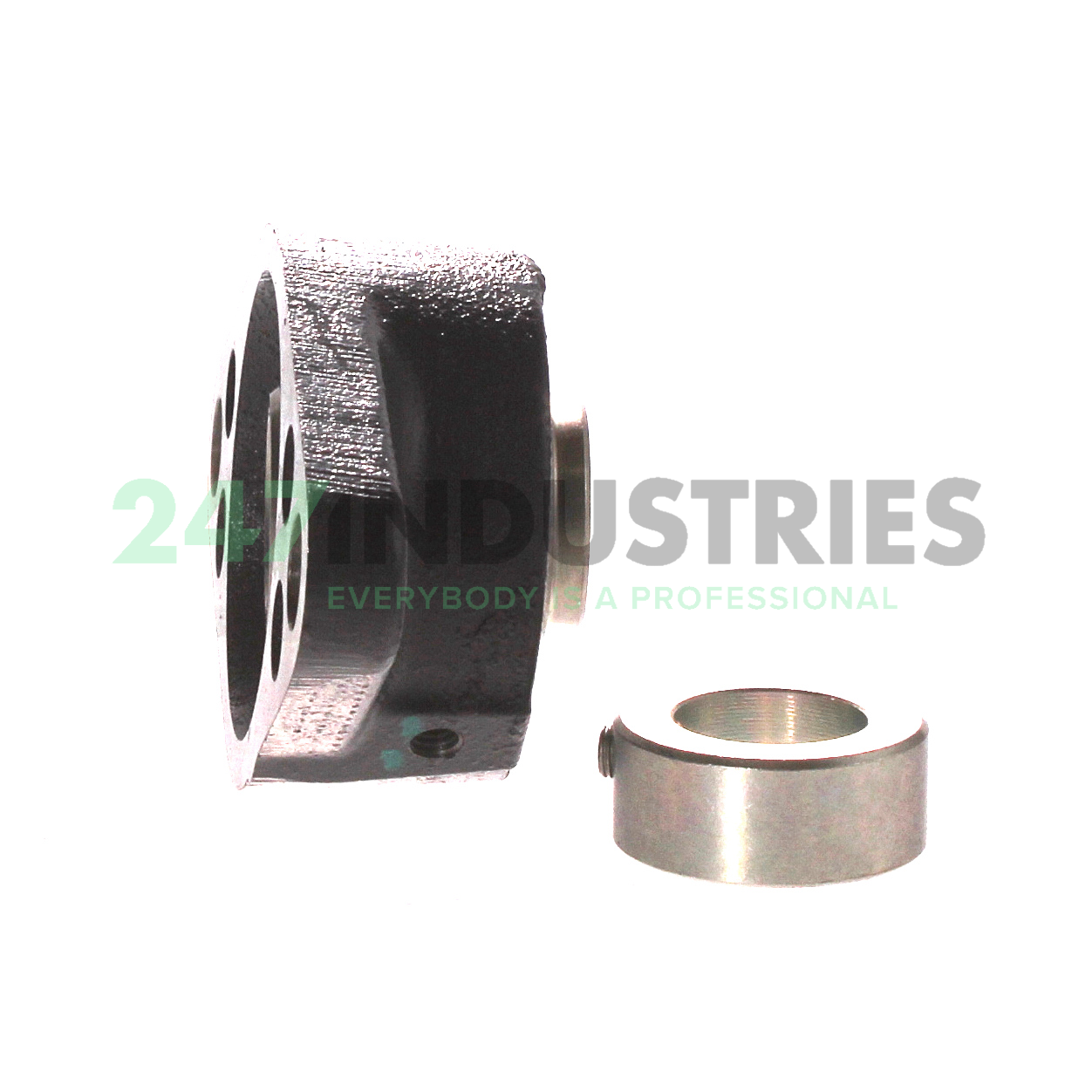

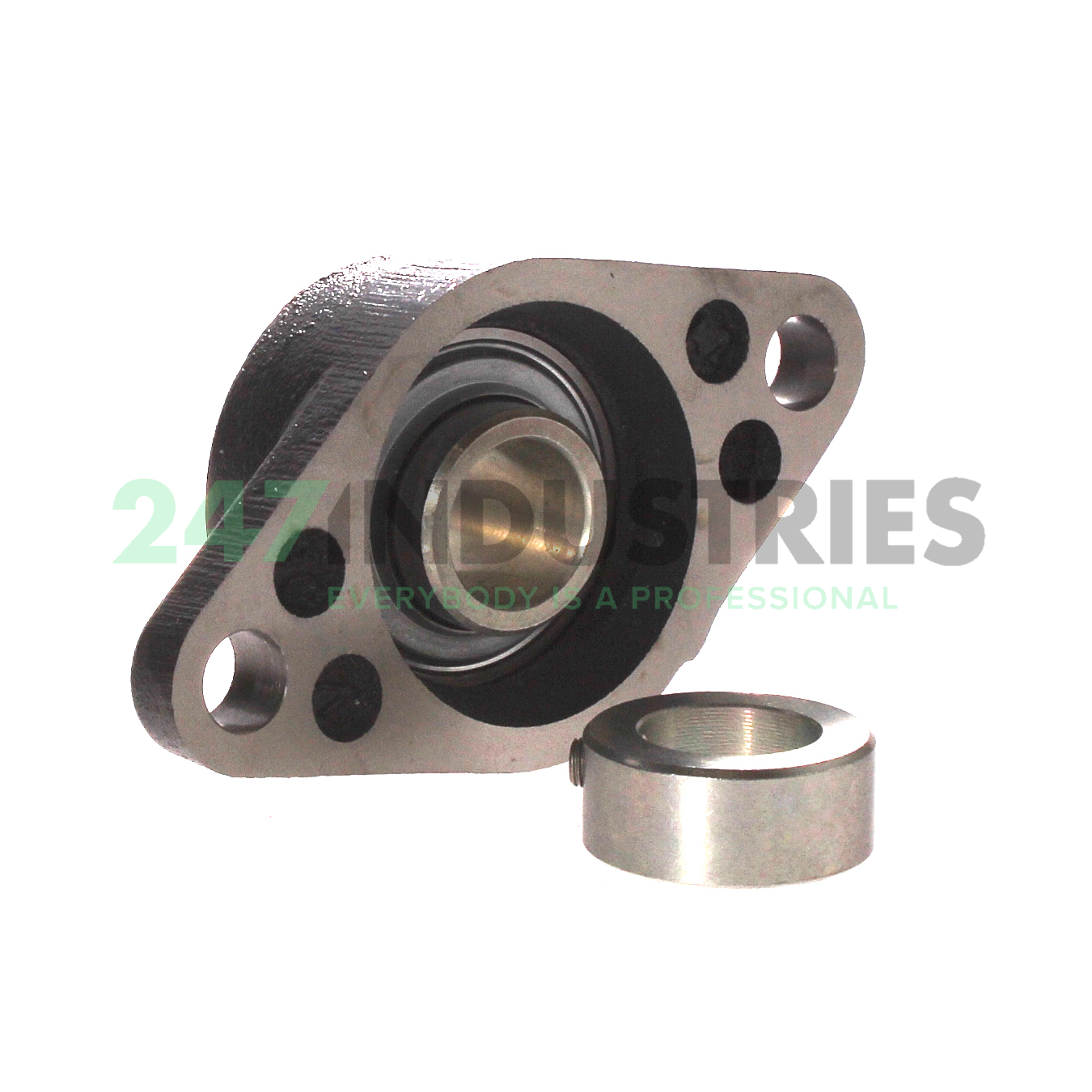

RCJT20-XL-N INA

Housing unit

Stock
15 pcs in stock and ready for shipment
Brand INA
Article number RCJT20-XL-N INA
Inside diameter 20mm
Outside diameter 112mm
Width 36,1mm
Product description

The RCJT20-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RCJT20-XL-N INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 112
  3. Width (B) MM 36,1
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 4.4094
  6. Width (B) Inch 1.4213
  7. Flange width (L) mm 61
  8. Height flange (H) mm 112
  9. Total height unit (U) mm 45,6

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps

Technical details

  1. Availability 15 pcs
  2. Brand INA
  3. Item number RCJT20-XL-N INA
  4. Also known as 0096441480000
    RCJT20-N
  5. EAN 4012802836936
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.447

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 6600
  2. Radial Dynamic Load Rating Cr (N) 13600
  3. Basic static load rating, radial (C 0r) "6600.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Housing units RCJT, two-bolt flanged housing units, cast iron, eccentric locking collar, R seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
