RCJY12-XL INA

€ 26,48 ex VAT
€ 32,05 incl. VAT
€ 32,05 incl. VAT
€ 26,48 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

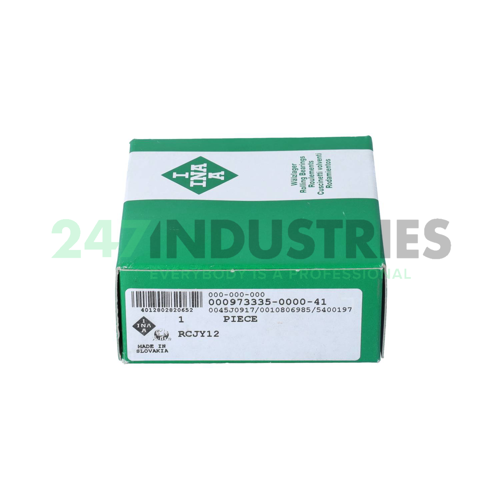

RCJY12-XL INA

Housing unit

Stock
41 pcs in stock and ready for shipment
Brand INA
Article number RCJY12-XL INA
Inside diameter 12mm
Outside diameter 76mm
Width 32,9mm
Product description

The RCJY12-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RCJY12-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12
  2. Outer (D) MM 76
  3. Width (B) MM 32,9
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 2.9921
  6. Width (B) Inch 1.2953
  7. Flange width (L) mm 76
  8. Total height unit (U) mm 32,9

Suffix description

  1. XL X-Life

Technical details

  1. Availability 41 pcs
  2. Brand INA
  3. Item number RCJY12-XL INA
  4. Also known as 0009733350000
    RCJY12
  5. EAN 4012802820652
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.48

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 4750
  2. Radial Dynamic Load Rating Cr (N) 10100
  3. ECLASS number 23-05-16-02
  4. ECLASS2 number 23-05-16-02
  5. Medias description Housing units RCJY, four-bolt flanged housing units, cast iron, grub screws in inner ring, R seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
